Product Overview

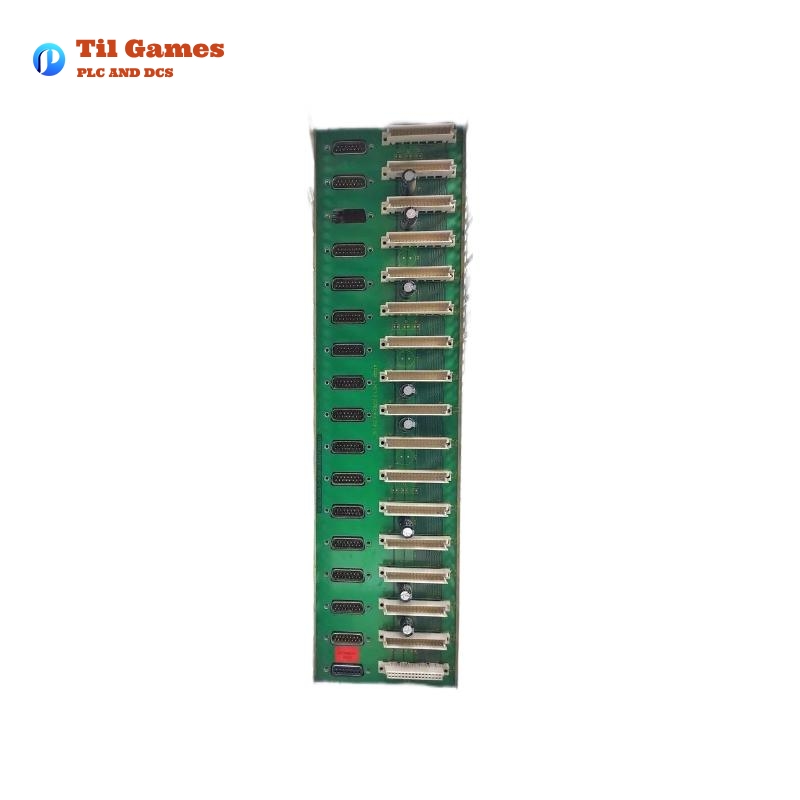

The Honeywell 05701-A-0511 is a 19-inch sub-rack designed for the 5701 Control System, part of the System 57 family. It provides a robust and modular platform for industrial gas detection and monitoring applications. This rear-access rack supports up to 16 channels of gas detection in a 3U height configuration, making it ideal for integration into standard 19-inch cabinets or panels. Its electromagnetic interference (EMI)-protected design ensures reliable operation in demanding industrial environments.
Key Parameters
| Parameter | Specification |
|---|---|
| Model Number | 05701-A-0511 |
| Rack Type | Full 19-inch, 3U height |
| Channel Capacity | Up to 16 channels (with Engineering Card) |
| Dimensions | 19″ (483 mm) wide x 3U (133.35 mm) height |
| Weight | 4.1 kg |
| Field Wiring Access | Rear access |
| Compatibility | 5701 Control System components |
| Material | Durable metal construction |
| Power Input | 24V DC (via DC Input Card) |
| Certifications | EMC compliant, indoor use only |
Applications
- Industrial Gas Monitoring: Detects combustible or toxic gases in manufacturing plants, refineries, and chemical facilities.
- Safety Systems: Integrates with alarm relays and control systems for hazard mitigation.
- Environmental Compliance: Monitors emissions and ensures adherence to safety regulations.
- Process Control: Supports multi-channel configurations for zoned or master alarm setups.
Product Advantages
- Modular Design: Supports front or rear wiring configurations for flexible installation.
- Scalability: Expandable with up to 16 channels using plug-in control cards.
- EMI Protection: Shielded compartments ensure reliable signal integrity.
- Easy Maintenance: Hot-swappable cards minimize downtime during servicing.
- Compatibility: Works with catalytic, 4–20mA, and analog sensors.
- High Integrity: Optional High Integrity Relay Cards for critical alarm systems.
