Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 10001/A/1 |
| Associated Modules | 10001/1/1 or 10001/R/1 |

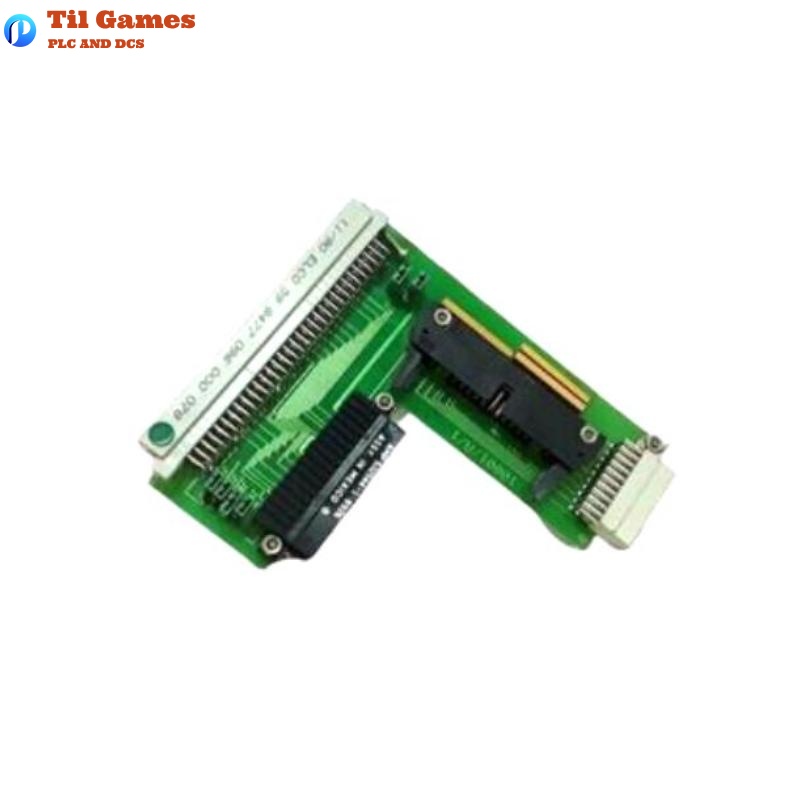

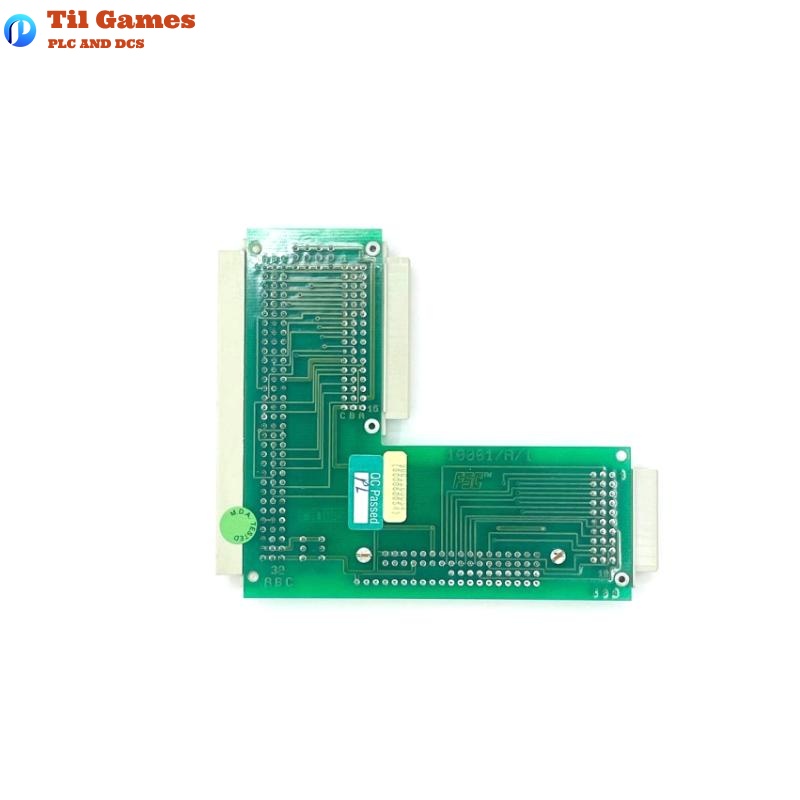

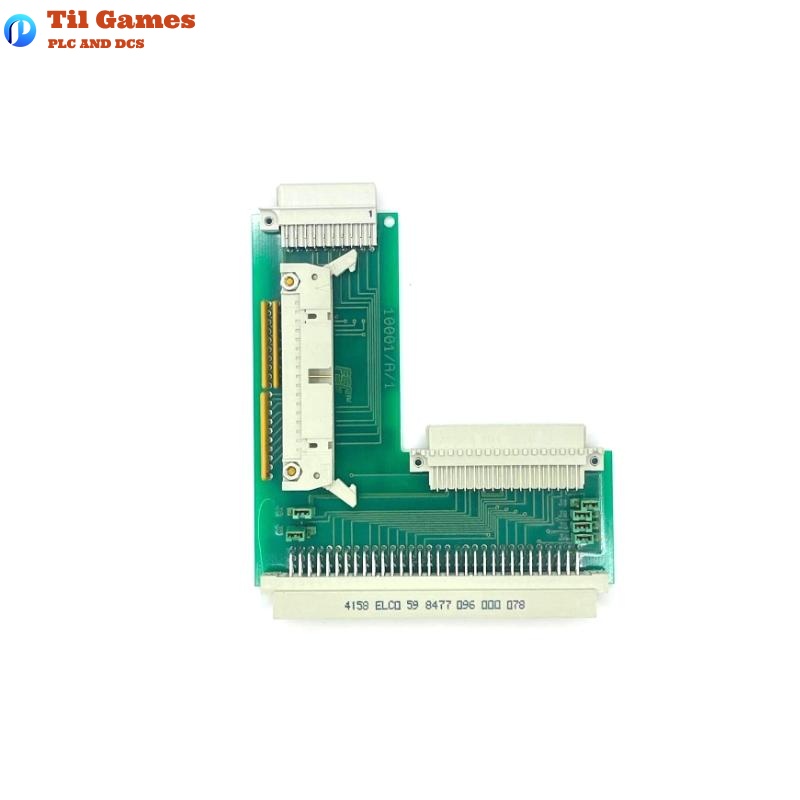

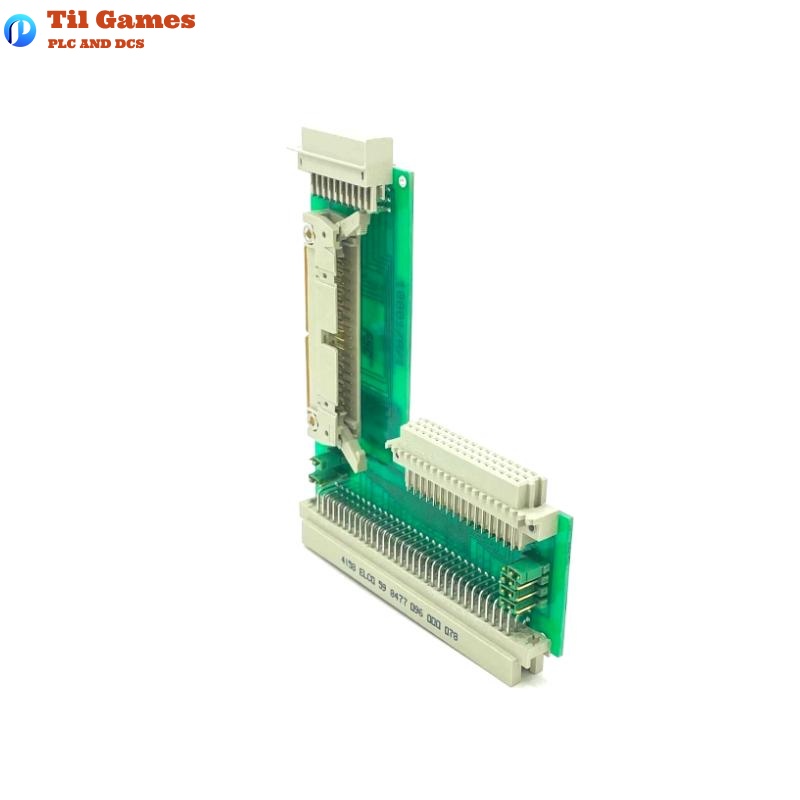

| Function | Wiring part of the Vertical Bus Driver |
| Jumper Configuration | J1–J4: VBD Number; J5–J6: CP Number |
| Mounting | 19-inch rack mounting with 96-pin bolts |
| Supported Vertical Distance | Up to 5 meters |
| Maximum VBDs per CP | 14 |
| Max HBDs per VBD | 10 |
| Dimensions (W x H x D) | 160 x 120 x 25 mm |
| Weight | 0.15 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 10001/A/1 module?
A1: The 10001/A/1 is the wiring part of the Vertical Bus Driver and provides interface connectivity between the electronic part and the vertical bus.
Q2: How many Vertical Bus Drivers can be connected to a Central Part rack?
A2: A maximum of 14 Vertical Bus Drivers can be installed per Central Part rack.
Q3: Can I replace the 10001/A/1 module while the system is powered?
A3: No, modules should not be removed or replaced while power is applied to the Central Part.
Q4: How do I assign the VBD and CP numbers?
A4: Use jumpers J1–J4 to set the VBD number and J5–J6 to assign the Central Part number.
Q5: What is the maximum supported distance between the VBD and I/O rack?
A5: The maximum distance is 5 meters (16.4 feet).
Q6: Is the 10001/A/1 compatible with redundant configurations?
A6: Yes, it is used in both redundant and non-redundant configurations with 10001/1/1 or 10001/R/1.
Q7: What are the power supply requirements for the associated VBD modules?
A7: 5 VDC with current consumption of 225 mA (10001/1/1) or 275 mA (10001/R/1).
Q8: Are there any safety approvals for this product?
A8: Yes, it is certified with CE, TÜV, and UL approvals.
