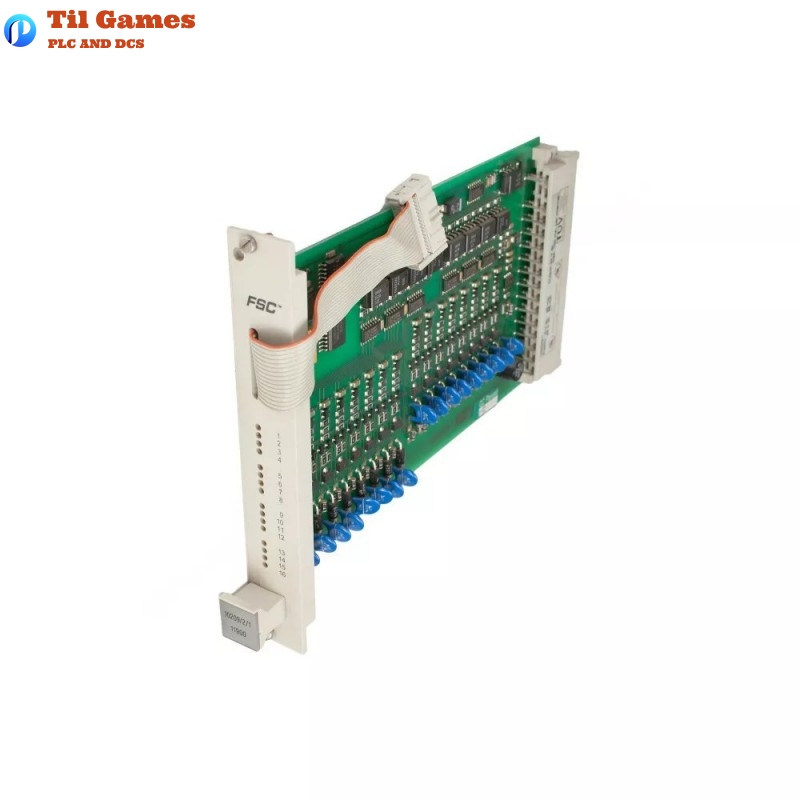

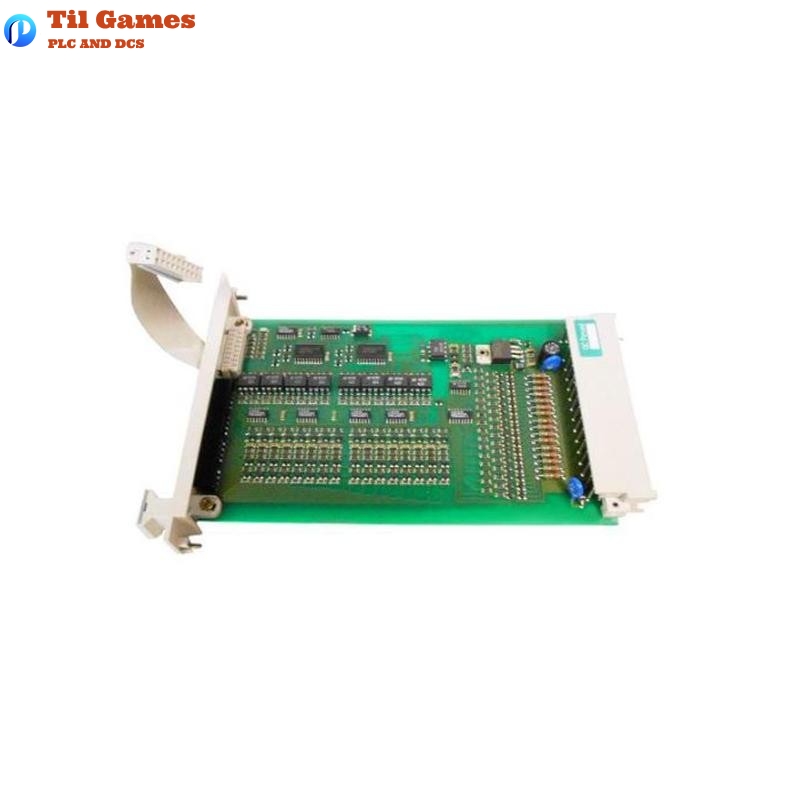

Honeywell 10209/2/1 Digital Output Module

Manufacturer：Honeywell

Product Number：10209/2/1

Product Type：Digital Output Module

Origin：USA

Dimensions：130 x 40 x 180 mm

Weight：0.65 kg

Frequently Asked Questions (FAQ)

Q1: How many output channels are available in the 10209/2/1 module?
A1: The module provides 16 digital output channels.

Q2: Are the outputs protected against short circuits?
A2: Yes, all outputs are solid-state source type and are short-circuit proof.

Q3: What is the maximum current each output can handle?
A3: Each output can drive up to 100 mA.

Q4: Can inductive loads be connected directly to the outputs?
A4: Yes, inductive loads such as relays can be connected. Each output includes a suppression diode for protection.

Q5: Does the module support fail-safe operation?
A5: No, the outputs are not tested and therefore should not be used in fail-safe applications.

Q6: What happens to the outputs if the system watchdog is triggered?
A6: All outputs are de-energized when the watchdog is activated or if the system shuts down.

Q7: What is the maximum allowable load capacitance per channel?
A7: Each channel supports a maximum load capacitance of 1 microfarad (µF).

Q8: What are the required supply voltages for the module to operate?
A8: The module requires 5 Vdc at 35 mA and 24 Vdc at 85 mA (excluding output load).
