Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 2MLQ-RY2A-CC |
| Output Channels | 16 points |
| Isolation Method | Relay isolation |
| Rated Load Voltage/Current | DC24V 2A (resistive) / AC220V 2A (COSΦ=1) |
| Minimum Load | DC5V / 1mA |
| Maximum Load Voltage/Current | AC250V, DC125V |
| Off-state Leakage | 0.1mA (AC220V, 60Hz) |
| Max On/Off Frequency | 3,600 times/hour |
| Surge Absorber | None |
| Electrical Lifetime | ≥100,000 times (DC24V/1A, DC100V/0.1A) |
| Mechanical Lifetime | ≥20,000,000 times |
| Response Time (Off→On) | ≤10 ms |
| Response Time (On→Off) | ≤12 ms |
| Common Type | 16 points / 1COM |
| Current Consumption | 500mA (all outputs ON) |
| Operation Indicator | LED ON when output is active |

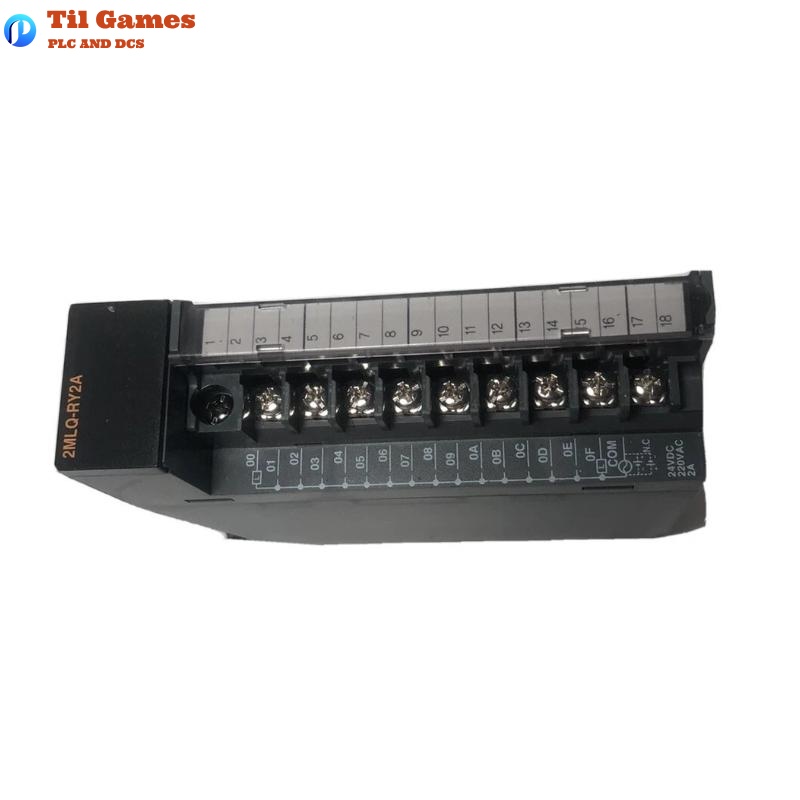

| External Connection | 18-point terminal block (M3 x 6 screw) |
| Dimensions (mm) | 114 × 48 × 127 |
| Weight | 0.17 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum supported load voltage for the 2MLQ-RY2A-CC?
A1: The module supports up to AC250V or DC125V.
Q2: What is the maximum switching frequency per hour?
A2: It can operate up to 3,600 times per hour.
Q3: What is the relay lifetime?
A3: Electrical lifetime is 100,000 operations; mechanical lifetime exceeds 20 million.
Q4: Does the module have built-in surge protection?
A4: No, this model does not include a surge absorber.
Q5: Are there output status indicators for each channel?
A5: Yes, each output point has an LED indicator that lights up when active.
Q6: What is the typical response time of the module?
A6: Less than or equal to 10 ms for OFF→ON, and 12 ms for ON→OFF.
Q7: What type of isolation does the module use?
A7: It uses relay-based electrical isolation.
Q8: What is the external connection method?
A8: It connects via an 18-point terminal block with M3 x 6 screws.
