Technical Specifications
| Parameter | Specification |
|---|---|

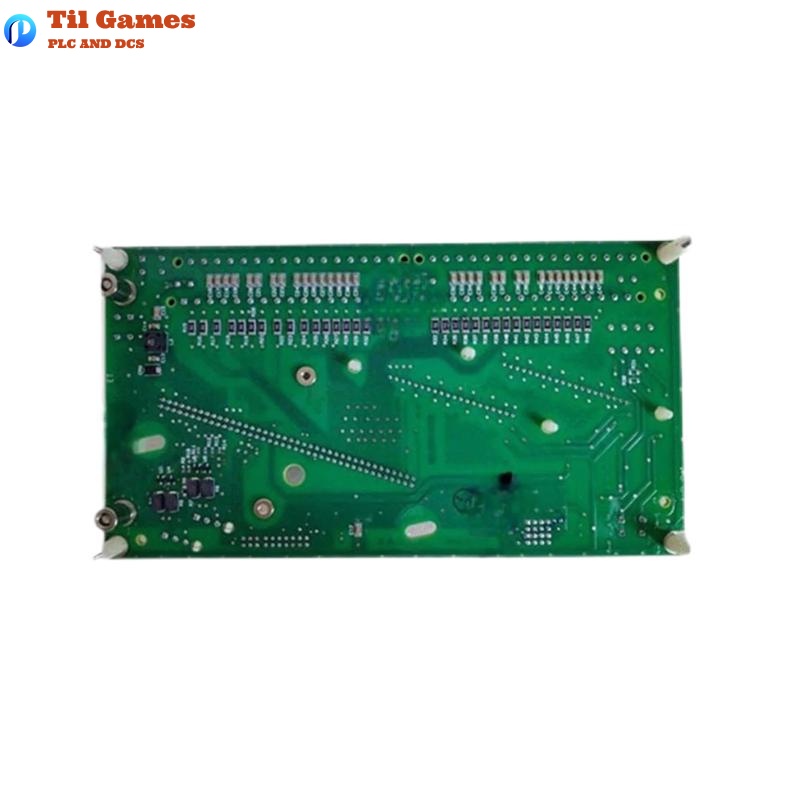

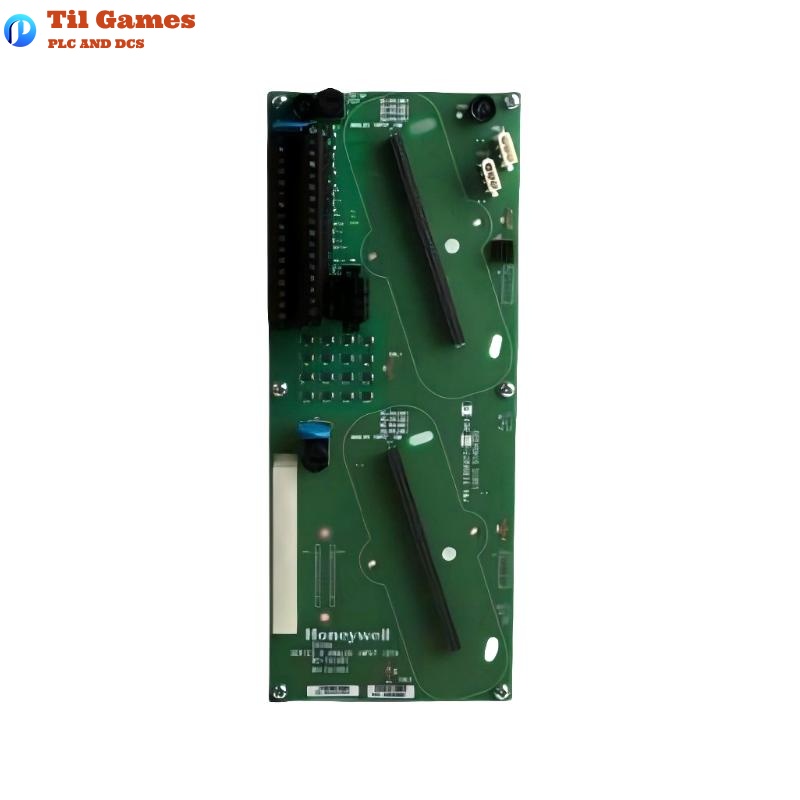

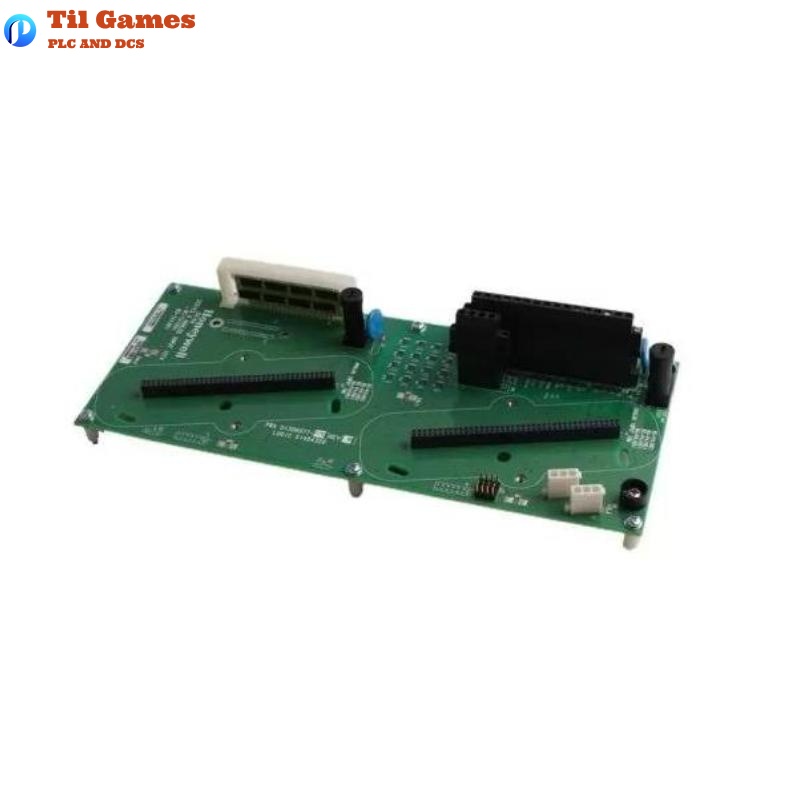

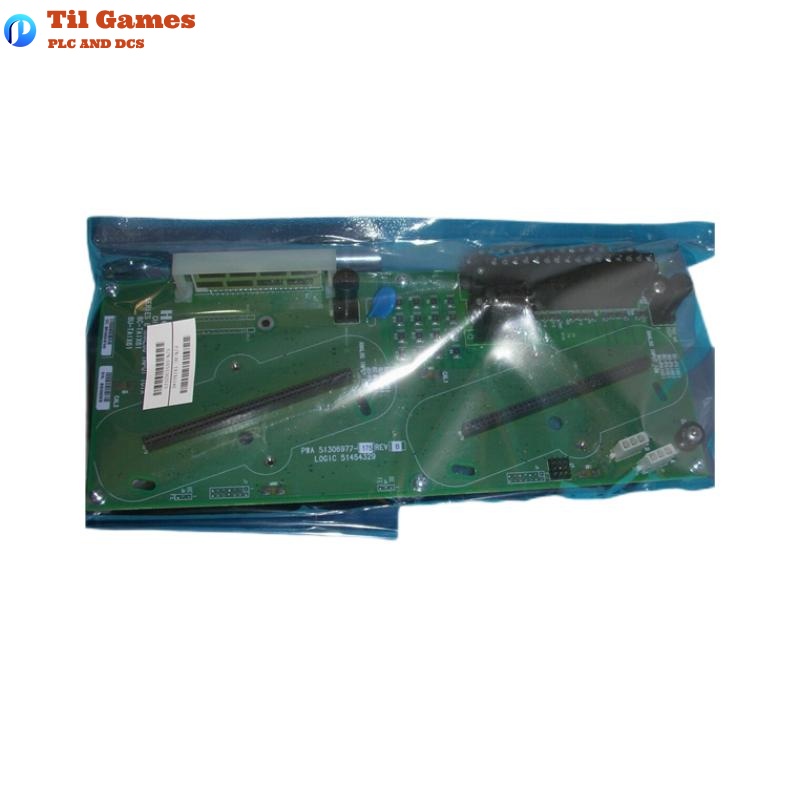

| Model | 8C-TAIX61 (used with IOM module CC-PAIH51) |
| Input Type | Current (2-wire or self-powered transmitters) |
| Input Channels | 16 channels (all single-ended) |
| Input Range | 4-20 mA (through 200 Ω resistor) |
| A/D Resolution | 16 bits |
| Common Mode Rejection | 70 dB (500Ω source imbalance, 0~60 Hz) |
| Common Mode Voltage | -6 to +5 V peak |
| Normal Mode Rejection | 19 dB at 60 Hz |
| Filter Response | Single-pole RC, -3 dB @ 6.5 Hz |
| Max Input Voltage | ±30 V (differential inputs, no damage) |
| Crosstalk | -60 dB (channel-to-channel, DC~60 Hz) |
| Input Impedance | >10 MΩ (voltage input) |
| Input Scan Rate | 50 ms |
| Hardware Accuracy | ±0.075% of FS (@ 23.5°C ±2°C) ±0.15% of FS (0~60°C) |
| Transmitter Power | Individually current-limited, non-incendive protection |
| Dimensions | 220 x 120 x 152.4 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does the 8C-TAIX61 support redundancy?
A1: Yes, it is designed for redundant configurations when used with the CC-PAIH51 IOM module.
Q2: What type of transmitters are supported per channel?
A2: Each channel supports 4-20 mA 2-wire or self-powered transmitters.
Q3: Are 250Ω resistors built-in for current measurement?
A3: Yes, each channel uses a 200Ω resistor on the IOTA to convert current to voltage.
Q4: What is the sampling rate of the module?
A4: Each input channel is scanned every 50 milliseconds.
Q5: Does the module support HART communication?
A5: Yes, it supports fast collection of multivariable HART data.
Q6: Is open wire detection available?
A6: Yes, the module includes open wire diagnostic protection.
Q7: Is there current-limiting protection on each channel?
A7: Yes, current-limiting circuits are built-in per channel with no fuse required.
Q8: Is external power required for the module?
A8: No, the module is powered via the IOTA without needing separate external power.
