Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 8C-TCNTA1 |

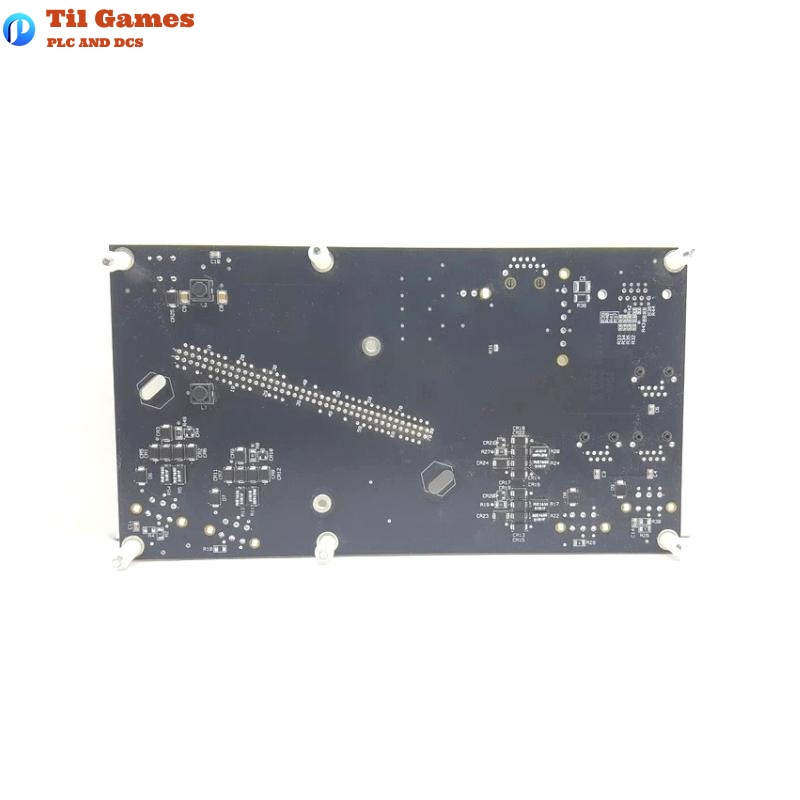

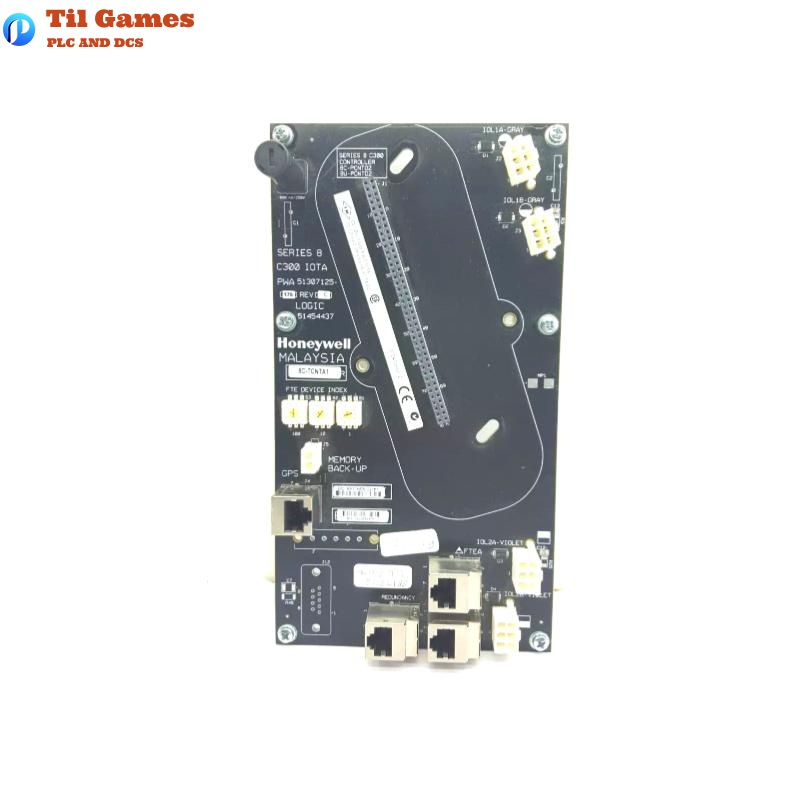

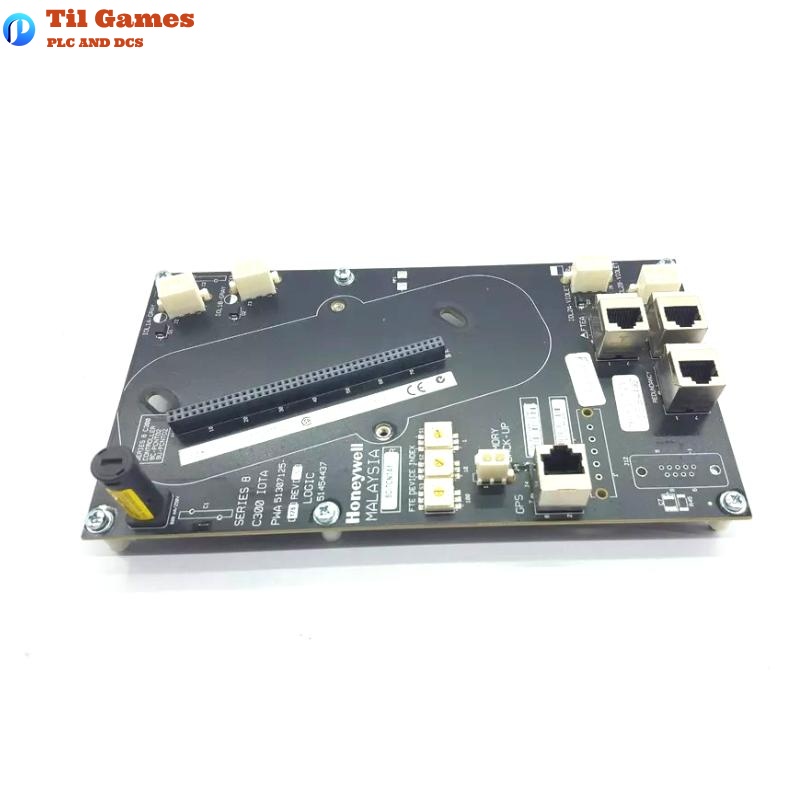

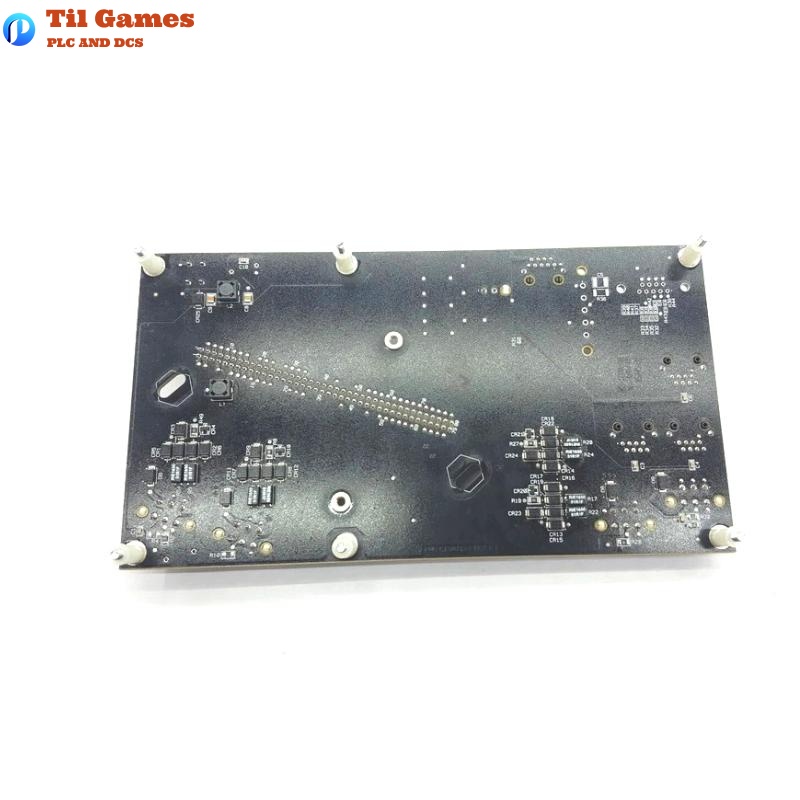

| Description | Series 8 C300 Controller I/O Termination Assembly (Coated) |
| Mounting Type | Vertical mounting |
| Power Requirement | 24 VDC (supplied via Series 8 power system cables) |
| Module Current | 320 mA |
| Supported I/O Types | All Series 8 modules |
| Supported I/O Links | 2 links, up to 40 IOMs per link |
| Max I/O per Controller | Up to 80 I/O units (Redundant or Non-Redundant) |
| Dimensions (W x H) | 220 x 120 mm |
| Weight | 0.6 kg |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Hot Swap | Supported |
| Redundancy Support | Yes |
| Certifications | Class I, Div 2, Groups A-D; Zone 2 Ex nA IIC T4 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the 8C-TCNTA1 module?
A1: It serves as the I/O Termination Assembly for the C300 controller, connecting the controller to field devices and providing signal termination, power distribution, and redundancy support.
Q2: Does the 8C-TCNTA1 support redundancy?
A2: Yes. It supports redundancy through dual module configuration with a redundancy cable.
Q3: Is hot swapping supported for this module?
A3: Yes. The module can be inserted or removed while powered, reducing system downtime.
Q4: What are the environmental requirements for operation?
A4: It operates from 0 to 60°C, stores from -40 to 85°C, and supports 5–95% non-condensing humidity.
Q5: Can it be used in harsh industrial environments?
A5: Yes. The coated version provides protection against moisture, dust, and corrosive conditions—rated for G3 environments.
Q6: What are the module’s dimensions and weight?
A6: The module measures 220 x 120 mm and weighs 0.6 kg.
Q7: Is an external power module required for field devices?
A7: No. The IOTA provides onboard field power distribution, eliminating the need for extra power modules.
Q8: What certifications does the module hold?
A8: It is certified for Class I Division 2 and Zone 2 hazardous areas with Ex nA IIC T4 rating.
