Technical Specifications
| Parameter | Description |
|---|---|

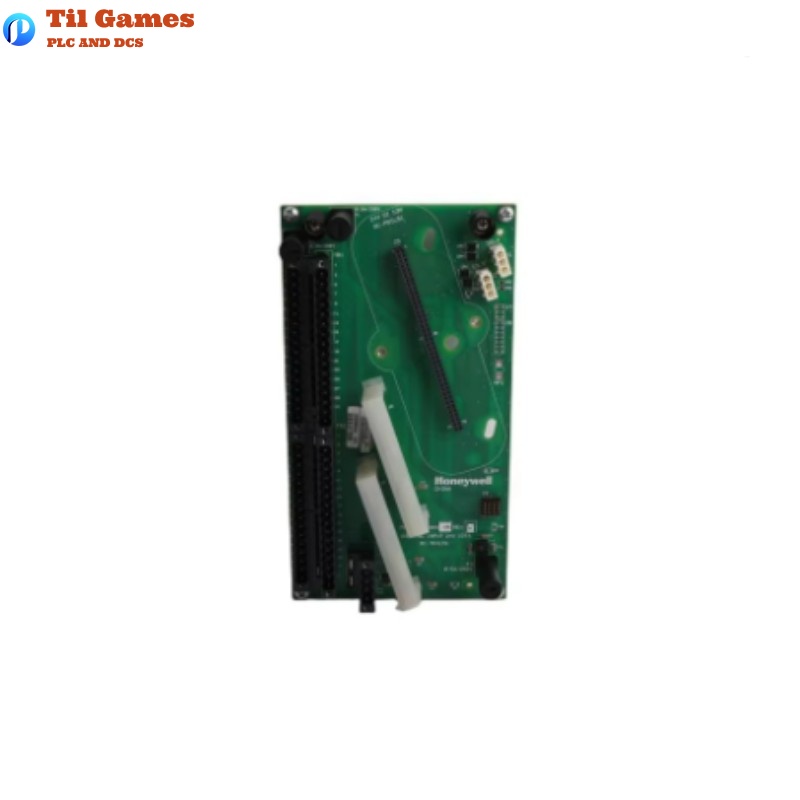

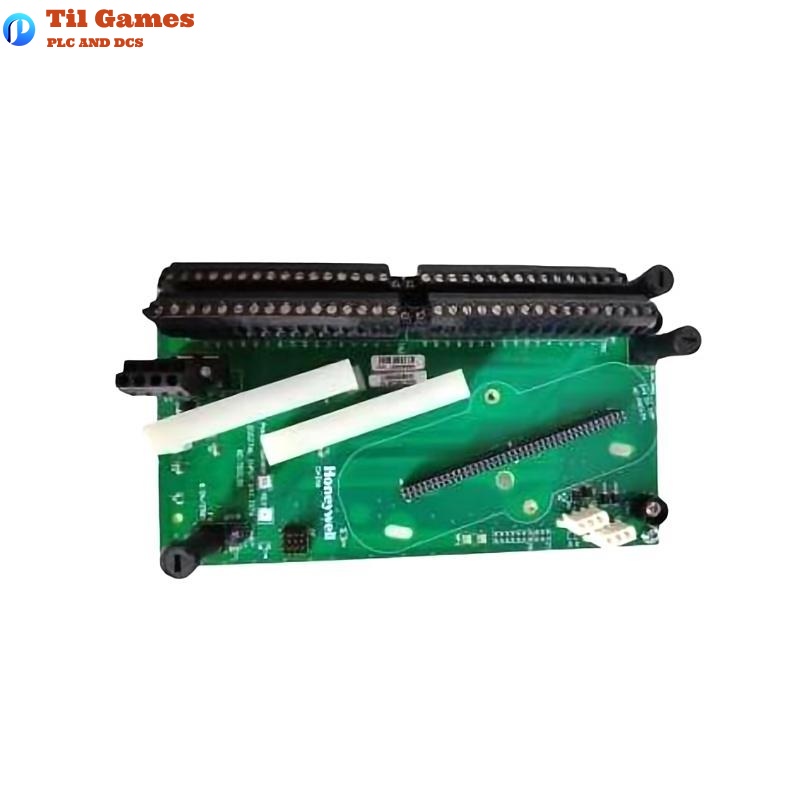

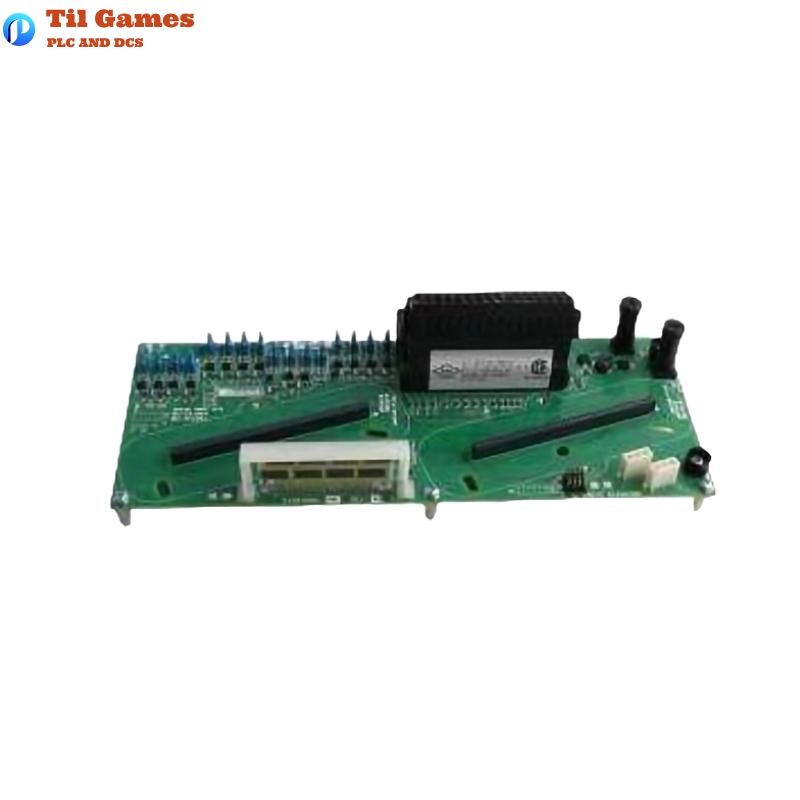

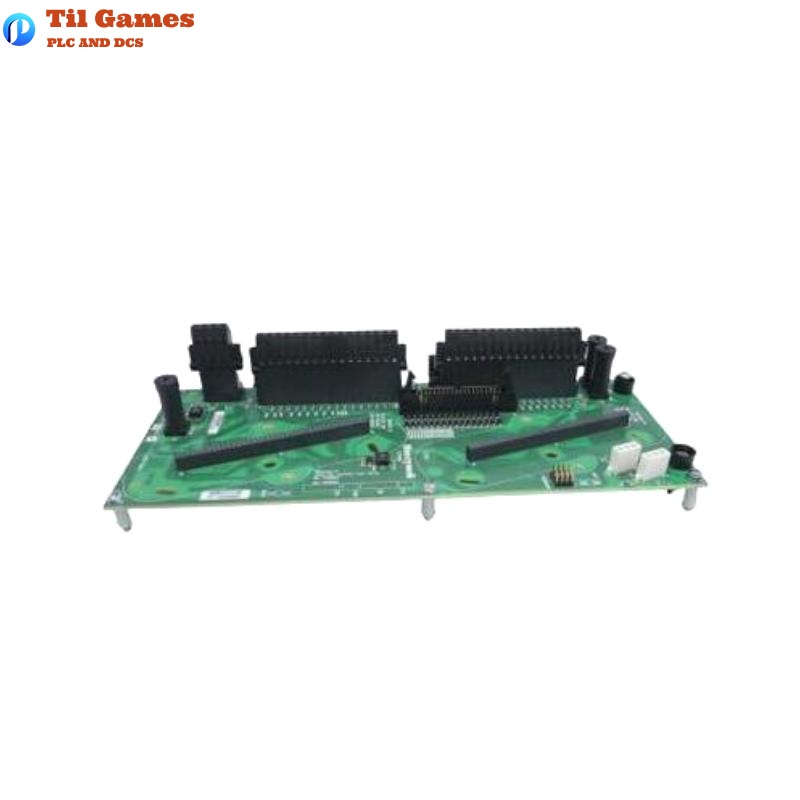

| Model | 8C-TDIL51 (Coated Version) |
| Module Type | Digital Input IOTA |
| DI Power Voltage Range | 18 to 30 VDC (User-supplied field power) |
| Input Channels | 32 channels |
| Input Impedance | 4.2 kΩ |
| Isolation Method | Optical isolation (in IOM) |
| Isolation Voltage | 1000 VAC RMS (System to Field Isolation) |
| ON Sense Voltage/Current | ≥13 VDC or ≥3 mA |
| OFF Sense Voltage/Current | ≤5 VDC or ≤1.2 mA |
| Filter/Isolation Delay | 5 ms ± 20% |
| Mounting | Vertical, plugs directly into backplane |
| Redundancy Support | Yes (via 8C-TDIL61 module) |
| Dimensions | 160 x 40 x 130 mm |
| Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many digital input channels does the 8C-TDIL51 support?
A1: It supports 32 channels of 24VDC digital input.
Q2: What is the input voltage range for this module?
A2: The module accepts signals from 18 to 30 VDC.
Q3: Does it support redundancy?
A3: Yes, redundancy is supported using the 8C-TDIL61 module.
Q4: Is electrical isolation provided?
A4: Yes, the module provides 1000 VAC RMS system-to-field isolation.
Q5: Does the module provide field power?
A5: Internal or external power options are available, supporting non-incendive field power.
Q6: What isolation method is used?
A6: Optical isolation is employed within the IOM.
Q7: Does the module have internal diagnostics?
A7: Yes, it includes extensive internal diagnostics to ensure data integrity.
Q8: What are the dimensions and weight of the module?
A8: The dimensions are 160 x 40 x 130 mm, and it weighs 0.5 kg.
