Technical Specifications
| Parameter | Specification |
|---|---|

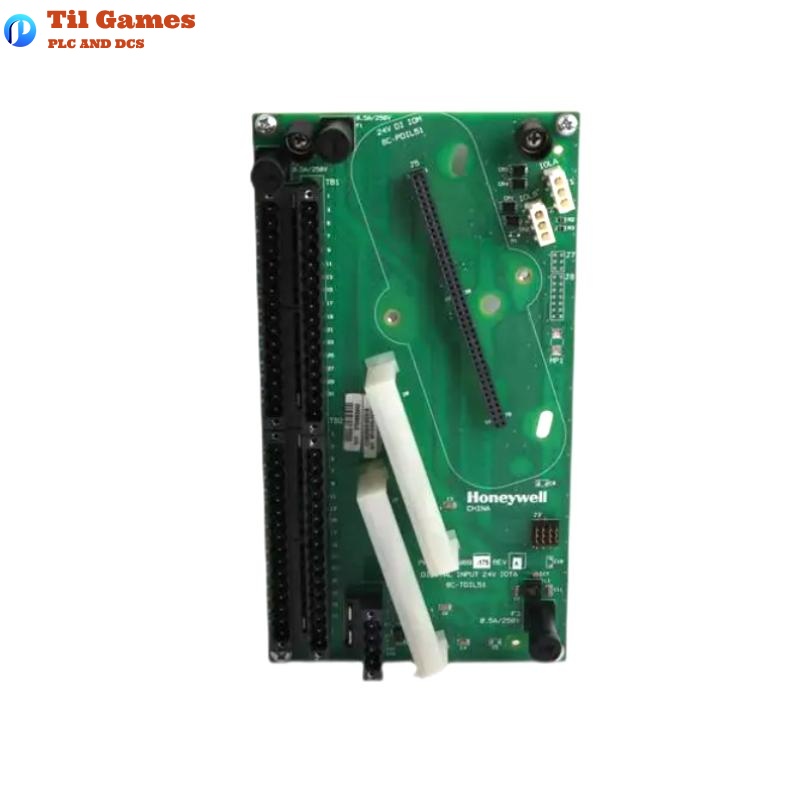

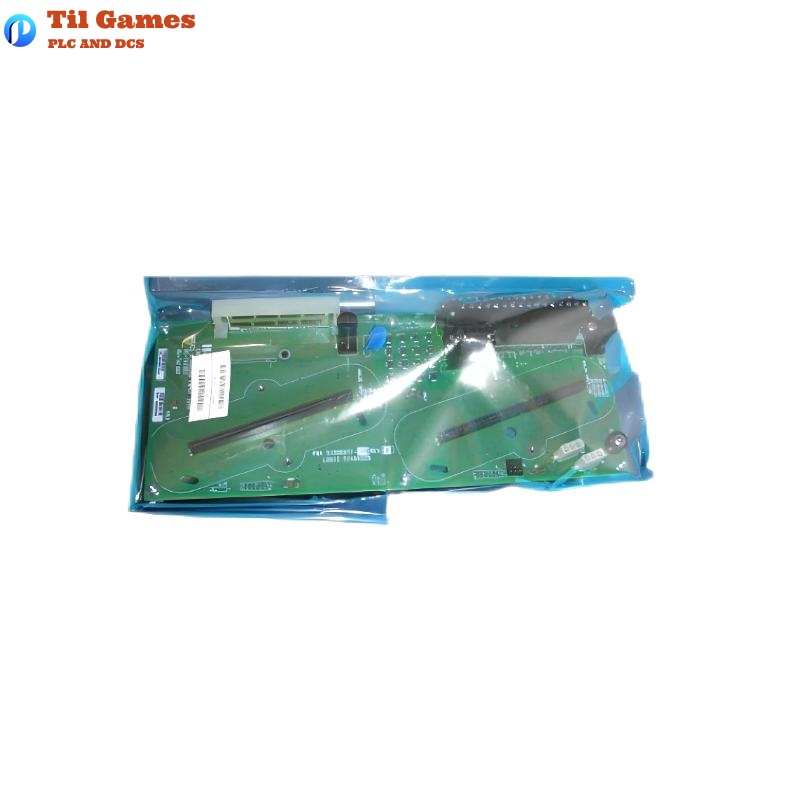

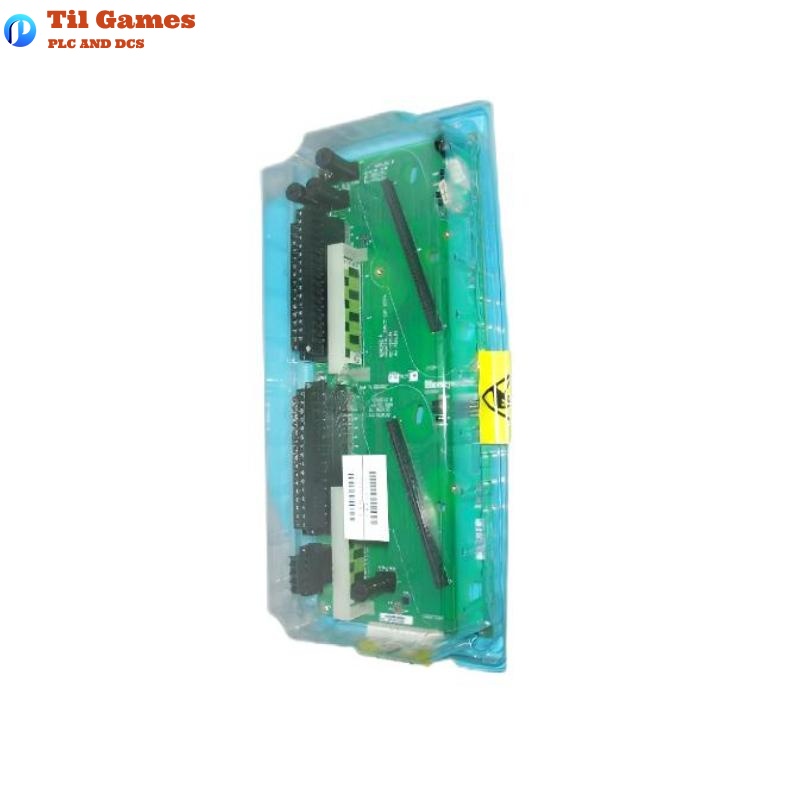

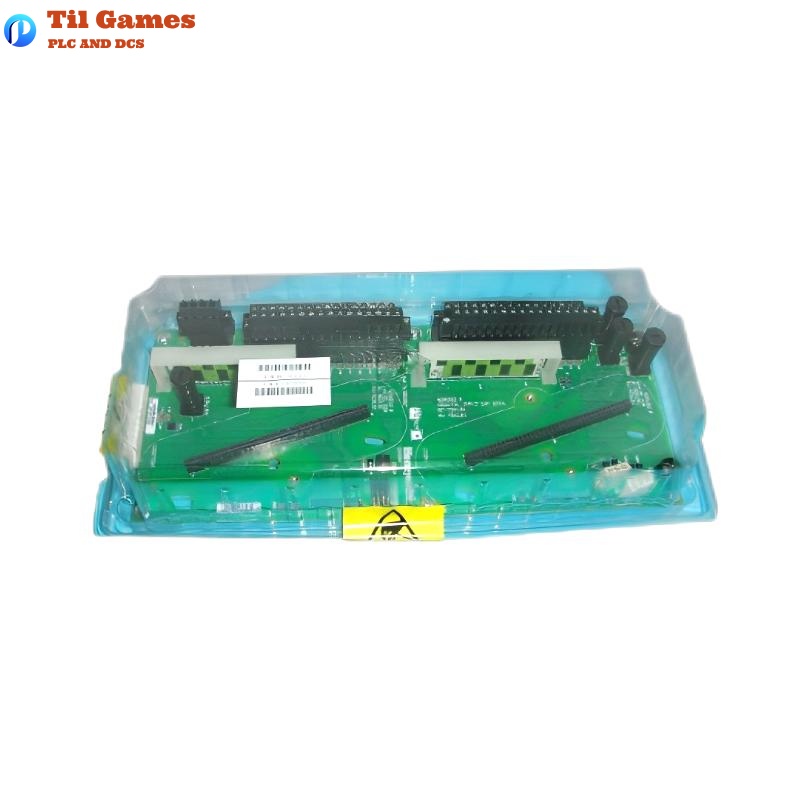

| Module Model | 8C-TDIL61 (IOM: DC-PDIL51) |
| IOTA Model | DC-TDIL61 (Redundant type) |
| Input Type | 24VDC Digital Input |
| Number of Input Channels | 32 |
| Electrical Isolation | 1000 VAC RMS |
| Isolation Type | Optical Isolation |
| Power Supply Range | 18 to 30 VDC |
| ON State Voltage/Current | ≥13 VDC or ≥3 mA |
| OFF State Voltage/Current | ≤5 VDC or ≤1.2 mA |
| Input Impedance | 4.2 kΩ |
| Input Delay | 5 ms ± 20% |
| Module Dimensions | 160 x 40 x 130 mm |
| Module Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many digital input channels does the 8C-TDIL61 module support?
A1: The module supports 32 channels of 24VDC digital input.
Q2: Does the 8C-TDIL61 module support redundancy?
A2: Yes, it supports redundant configuration for use in high-availability systems.
Q3: What is the electrical isolation rating for the inputs?
A3: The module provides electrical isolation of 1000 VAC RMS between input and logic.
Q4: What is the voltage range required for proper module operation?
A4: The module operates within a voltage range of 18 to 30 VDC.
Q5: What isolation method is used for input signal separation?
A5: The module uses optical isolation to ensure safe separation between channels and logic circuits.
Q6: Is open wire detection supported by the module?
A6: Yes, the DC-PDIL51 module includes open wire detection capability to improve signal integrity.
Q7: What is the typical input delay of the module?
A7: The input delay is 5 milliseconds with a tolerance of ±20%.
Q8: What are the physical dimensions and weight of the module?
A8: The module measures 160 mm x 40 mm x 130 mm and weighs 0.5 kg.
