Technical Specifications
| Parameter | Specification |
|---|---|

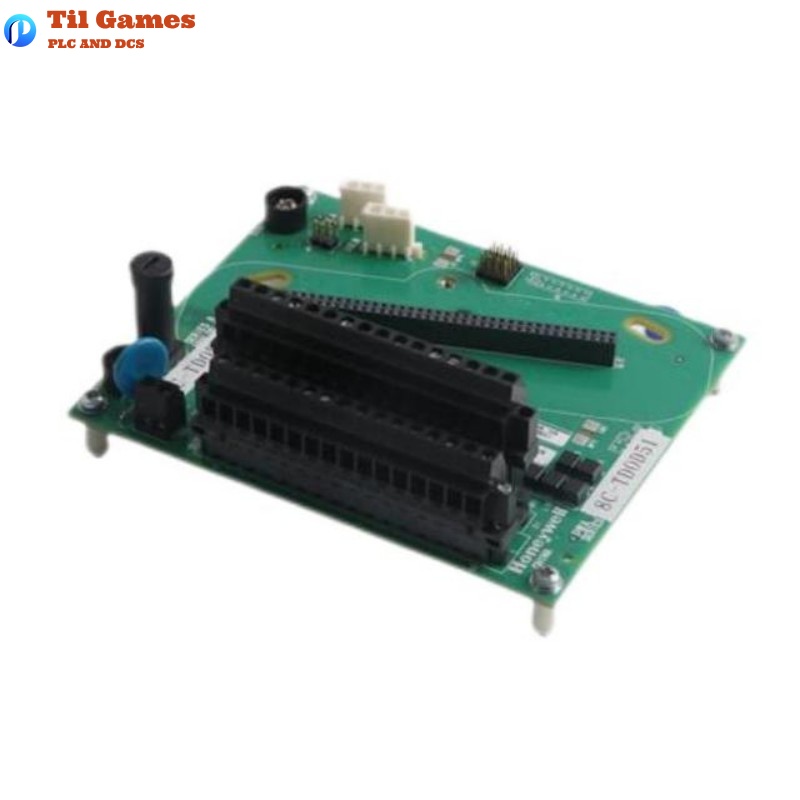

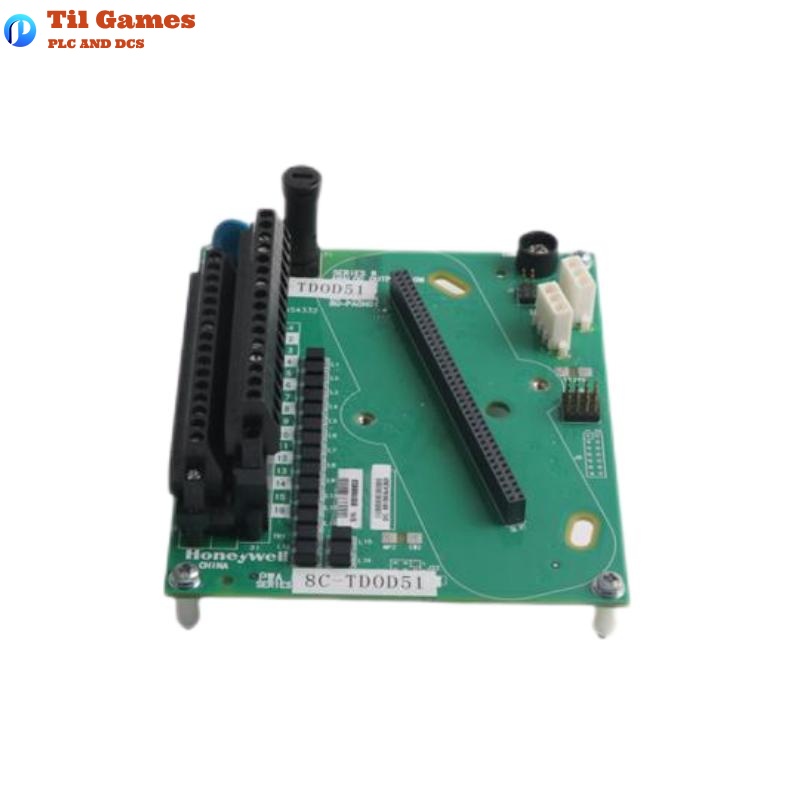

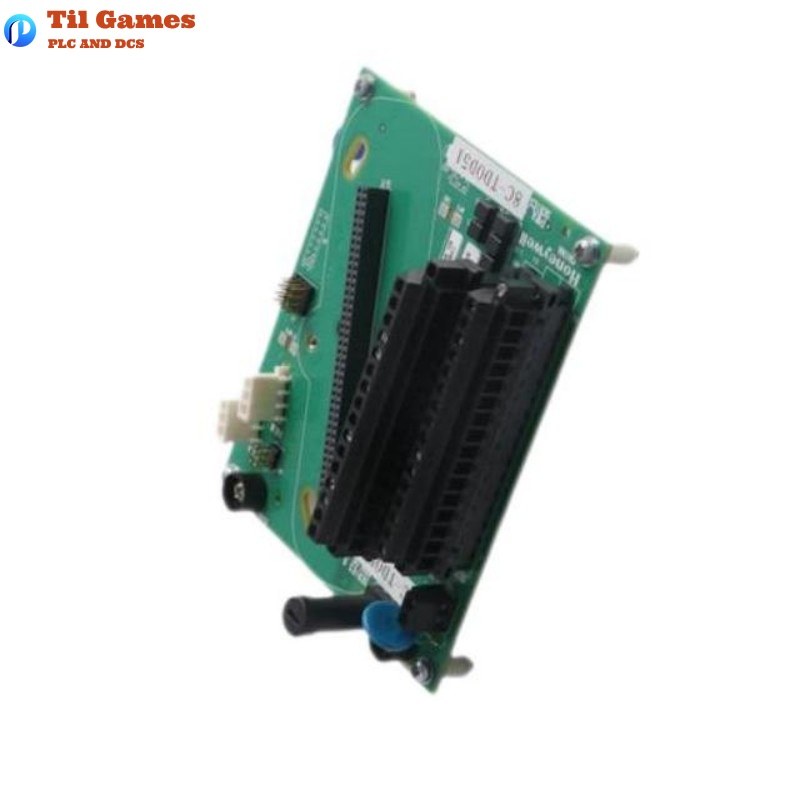

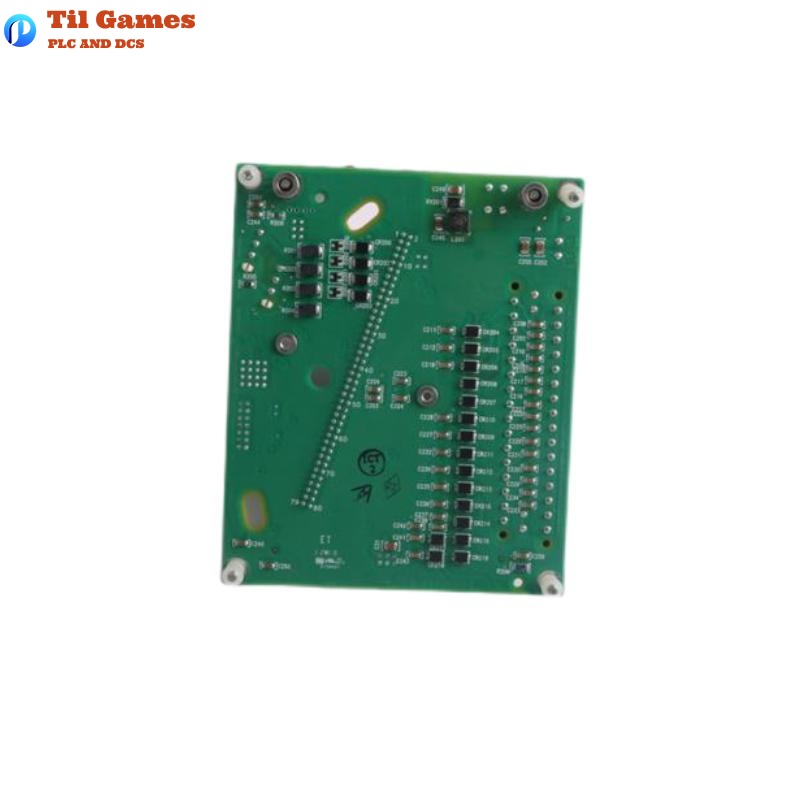

| Model | 8C-TDOD51 (Coated) |
| Module Type | Digital Output Module |
| Output Type | SINK |
| Output Channels | 32 |
| Load Voltage | Max 30 VDC |
| Load Current per Channel | Max 0.1 A |
| Short Circuit Protection | Series fuses (1 per 8 channels, total 4 for 32 channels) |
| On-State Voltage Drop | Max 1 VDC at 0.1 A |
| Off-State Voltage | Typically 24 V |
| Off-State Leakage Current | Max 100 µA |
| Turn-On/Turn-Off Time | Max 10 ms |
| Isolation Type | Optical isolation (System to Field, with external power only) |
| Isolation Voltage | 1000 VAC RMS |
| Redundancy | Supported (via 8C-TDOD61) |
| FAILOPT Behavior | Per channel: Hold Last Value or Shed to Safe Value |
| Power Configuration | Supports bussed or external field power |
| Dimensions | 120 x 70 x 50 mm |
| Weight | 0.7 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many output channels does the module support?
A1: It supports 32 digital output channels.
Q2: What is the maximum current per channel?
A2: The maximum output current per channel is 0.1 A.
Q3: Does the module have short circuit protection?
A3: Yes, each group of 8 channels is protected by a fuse; 4 fuses in total.
Q4: Is redundancy supported by this module?
A4: Yes, redundancy is available using the 8C-TDOD61 module.
Q5: What is the output type of the module?
A5: The output is SINK type.
Q6: Is the module electrically isolated between system and field?
A6: Yes, isolation is provided at 1000 VAC RMS when using external field power.
Q7: What is the maximum supported load voltage?
A7: The module supports up to 30 VDC.
Q8: What are the dimensions and weight of the module?
A8: Dimensions are 120 x 70 x 50 mm, and the weight is 0.7 kg.
