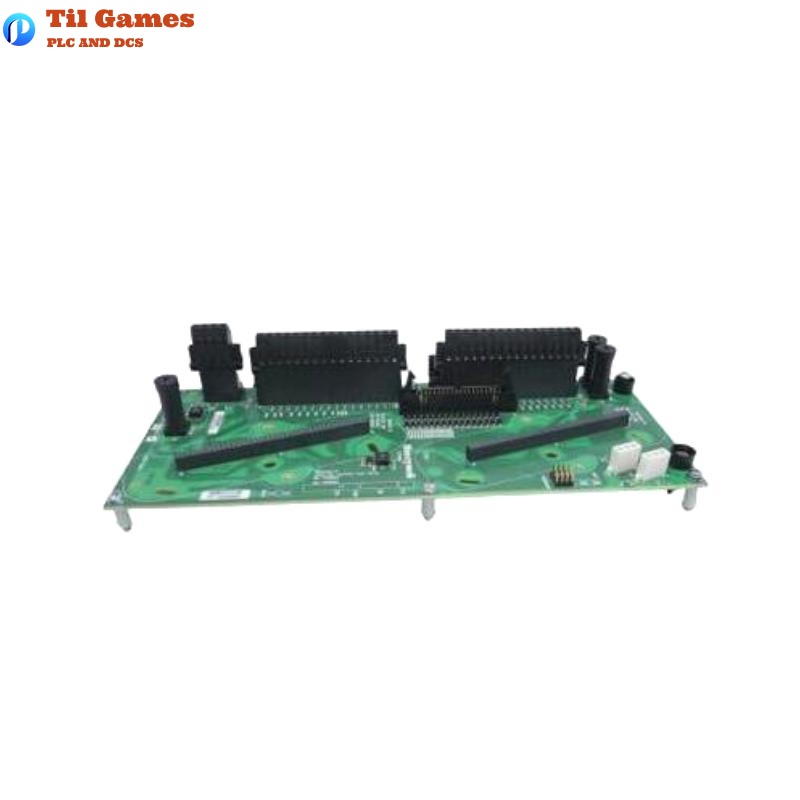

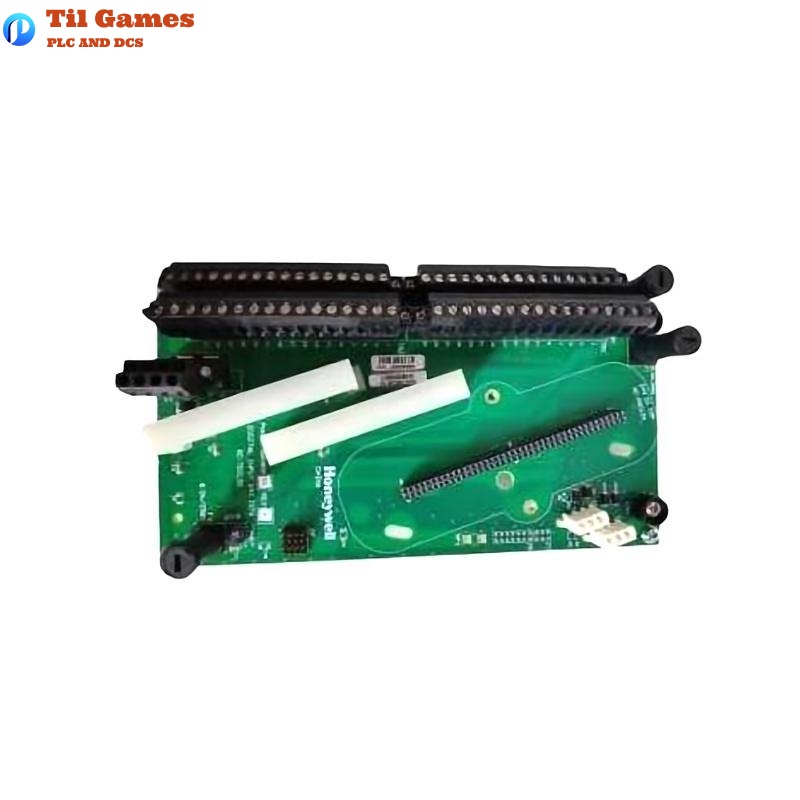

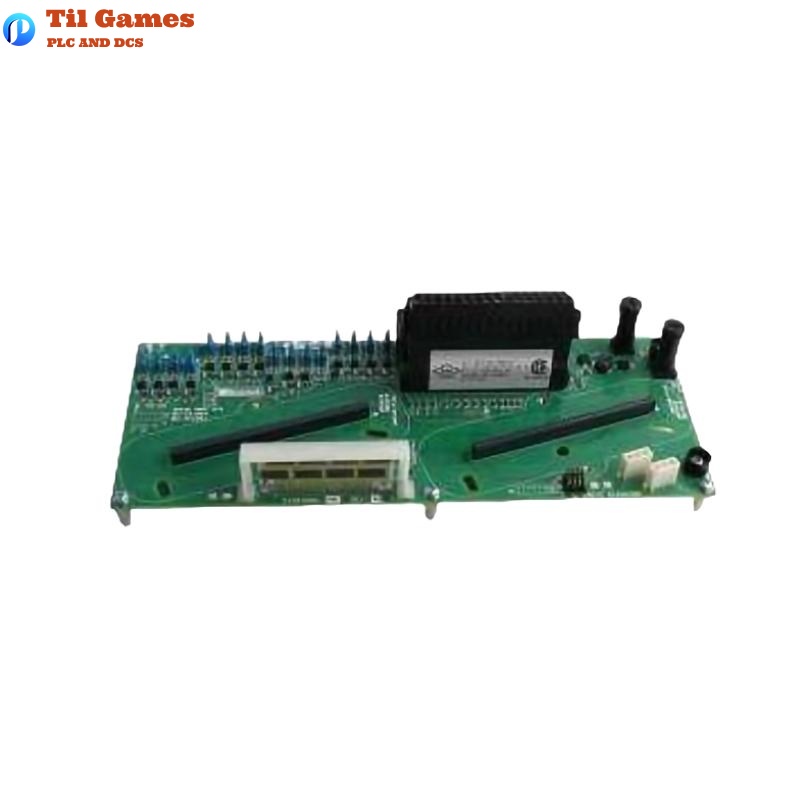

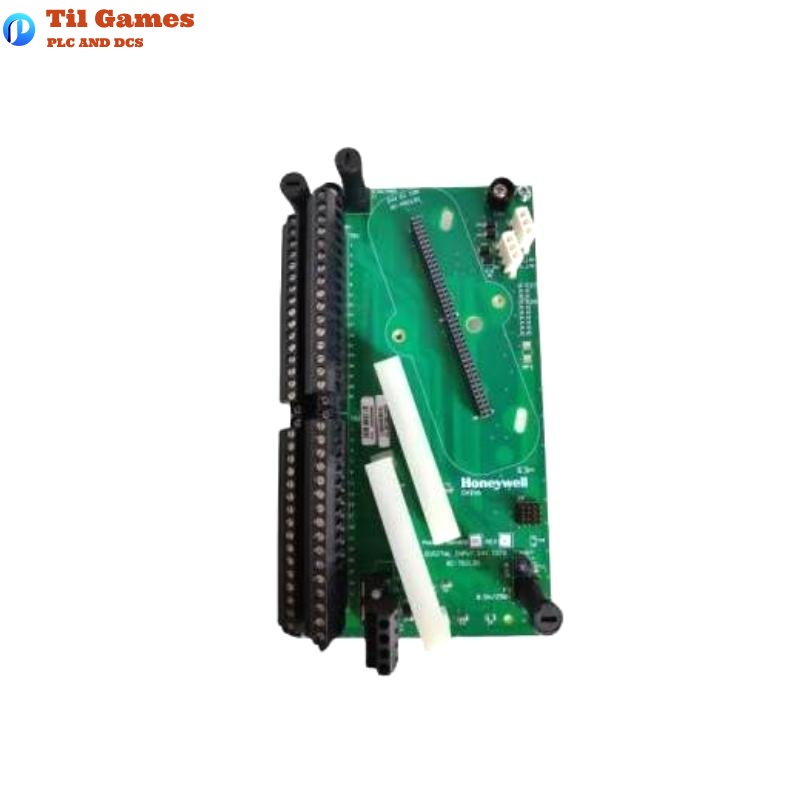

Technical Specifications – Honeywell 8C-TDOD61 Digital Output IOTA
| Parameter | Specification |
|---|---|
| Model Number | 8C-TDOD61 |
| Output Channels | 32 |
| Output Type | Current Sink |
| Load Voltage | Max 30 VDC |
| Load Current | Max 0.1 A per channel |
| Short-Circuit Protection | One fuse per 8 channels (total 4 fuses) |
| Galvanic Isolation | 1000 VAC RMS (system to field for external power) |
| On-State Voltage | Max 1 VDC at 0.1 A |
| Off-State Voltage | Typ. 24 V |
| Off-State Leakage Current | Max 100 µA |
| Turn-On/Off Time | Max 10 ms |
| Switchover Gap (Redundancy) | 0 ms (no gap) |
| Dimensions (W × H × D) | 130 × 30 × 145 mm |
| Weight | 0.45 kg |
FAQ
FAQ – Honeywell 8C-TDOD61
Q1: What is the output type of the 8C-TDOD61 module?
A1: It uses a current sinking output type for 24VDC control applications.
Q2: How many digital outputs does the module support?
A2: The module supports 32 output channels.
Q3: What is the maximum load voltage and current per channel?
A3: Each channel supports up to 30 VDC and 0.1 A maximum.
Q4: Does this module support redundancy?
A4: Yes, the 8C-TDOD61 is designed for redundant configurations.
Q5: Is there internal protection for short circuits?
A5: Yes, each group of 8 channels is protected by a fuse, with 4 fuses total for 32 channels.
Q6: What is the typical turn-on and turn-off time?
A6: The module has a maximum switching time of 10 milliseconds.
Q7: Is galvanic isolation provided?
A7: Yes, galvanic isolation is ensured between the system and field when external power is used.
Q8: What are the physical dimensions and weight?
A8: The dimensions are 130 × 30 × 145 mm and it weighs 0.45 kg.
