Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 8C-TDODB1 |

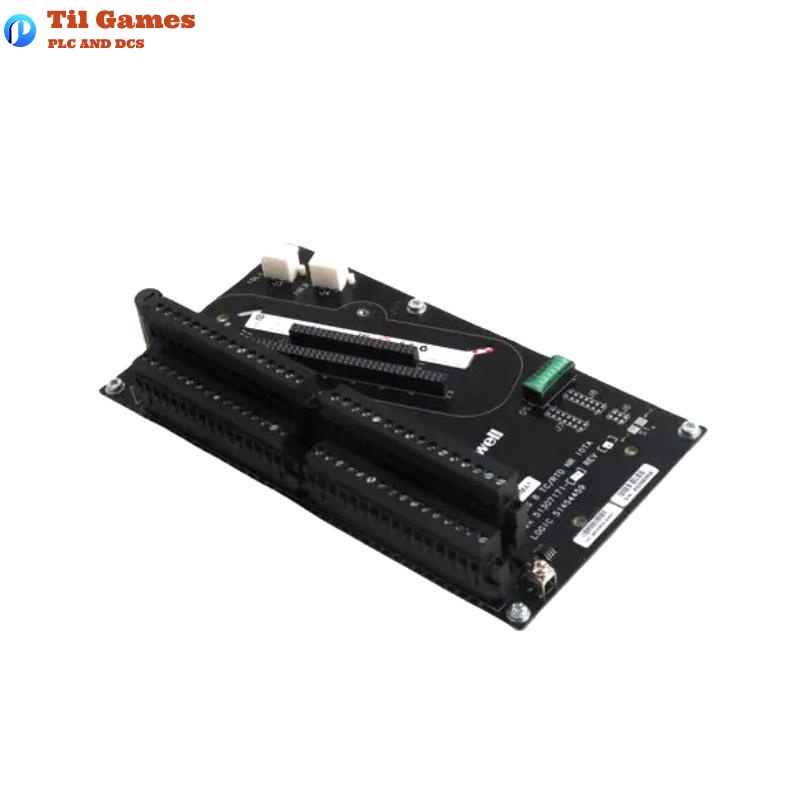

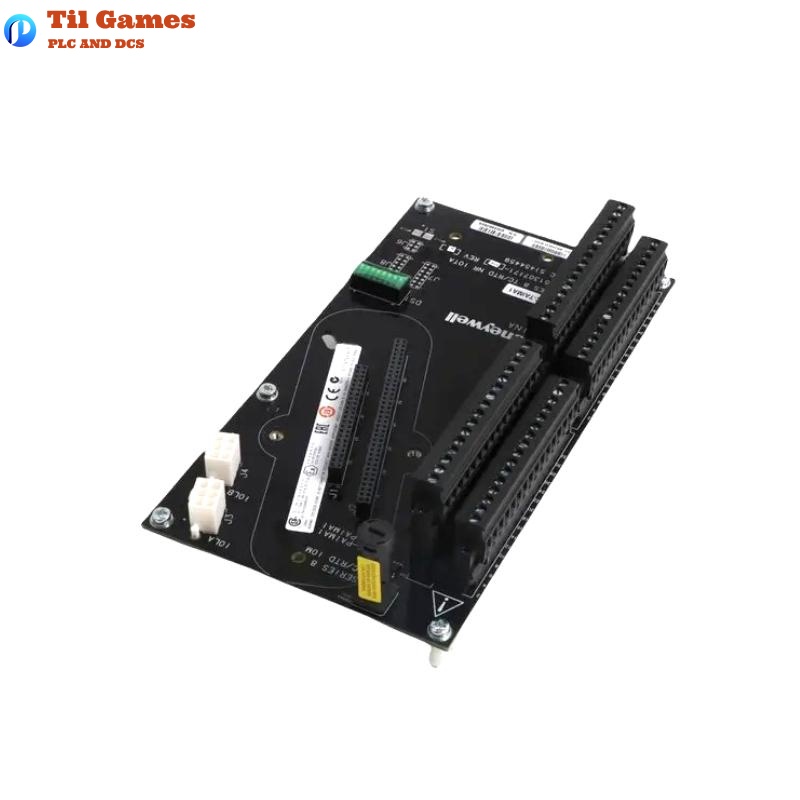

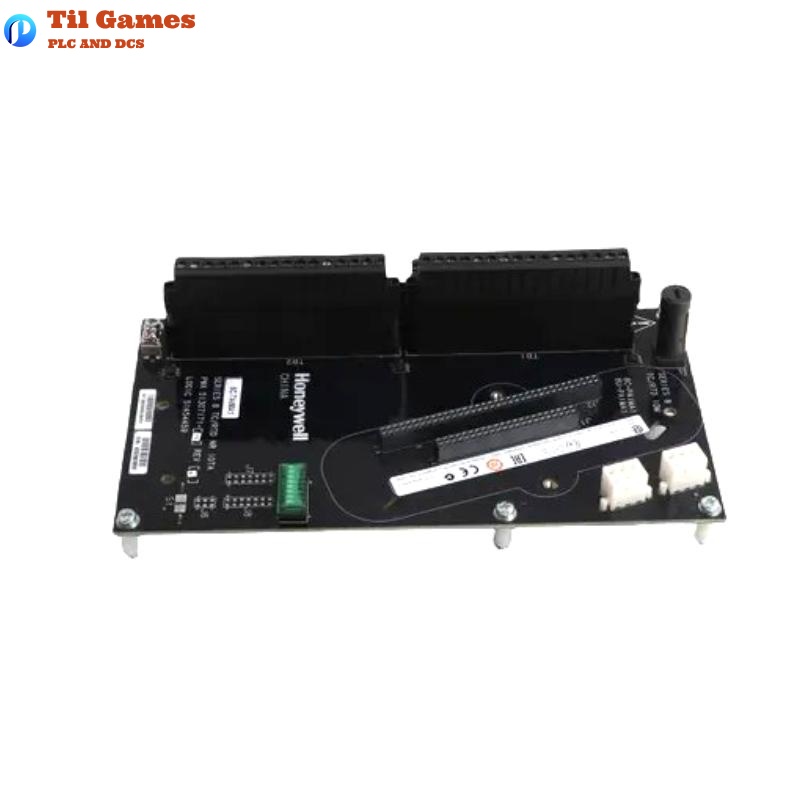

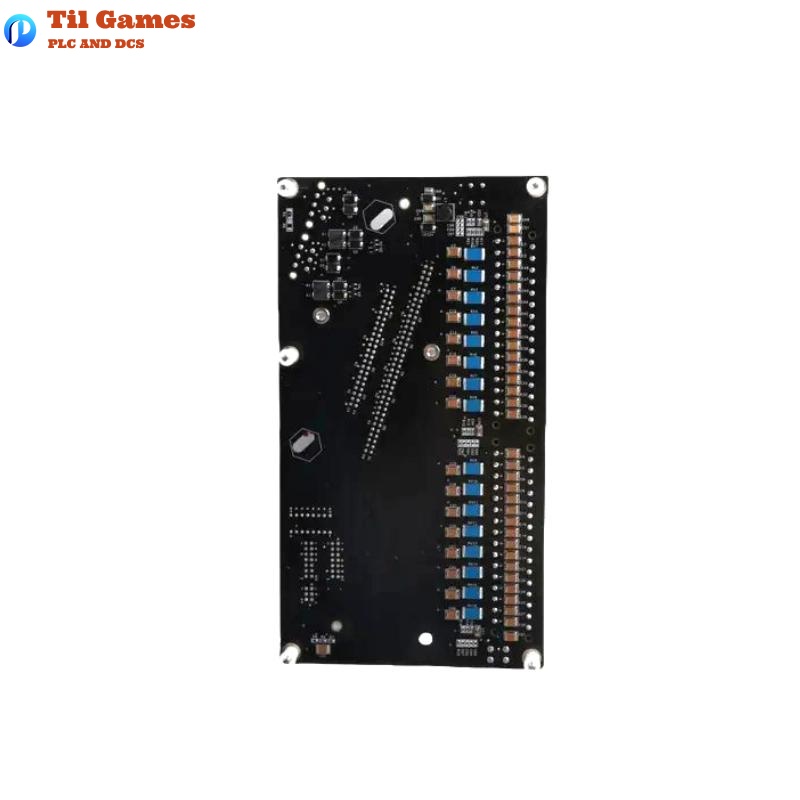

| Type | Digital Output IOTA (Redundant, Coated) |
| Output Channels | 32 channels |
| Output Type | Current Sourcing (Source) |
| Operating Voltage | 24 VDC |
| Max Load Voltage | 30 VDC |
| Max Load Current/Channel | 100 mA |
| Module Current Consumption | 105 mA |
| Off-State Leakage Current | Max 5 µA |
| Turn-On/Off Time | Max 10 ms |
| Hot Swap Support | Supported |
| Isolation | 1000 VAC RMS for field power (external supply) |
| Dimensions (W × H × D) | 244 × 38 × 147 mm |
| Weight | 0.45 kg |
| Operating Temperature | 0 to 60 ℃ |
| Storage Temperature | -40 to 85 ℃ |
| Certifications | Class I, Division 2, Groups A–D; T4; Zone 2 Ex nA |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is 8C-TDODB1 a sourcing or sinking output module?
A1: It is a sourcing output module, providing current to field devices.
Q2: What is the maximum current per output channel?
A2: Each output channel can handle up to 100 mA. There are four fuses, one per 8 channels.
Q3: Does the module support hot-swapping?
A3: Yes, the module supports insertion and removal under power.
Q4: Is redundancy supported by 8C-TDODB1?
A4: Yes, redundancy is supported when paired with a second IOM on the same IOTA.
Q5: What is the switching response time?
A5: The turn-on and turn-off time is a maximum of 10 milliseconds.
Q6: Does the module have short-circuit protection?
A6: Yes, short-circuit protection is provided via fuses (1 per 8 channels).
Q7: What environments is the module suited for?
A7: The coated variant is suitable for harsh environments and meets G3 corrosion standards.
Q8: How does the output behave during redundant switchover?
A8: During redundancy switchover, the output current transitions with no gap (0 ms), ensuring uninterrupted control.
