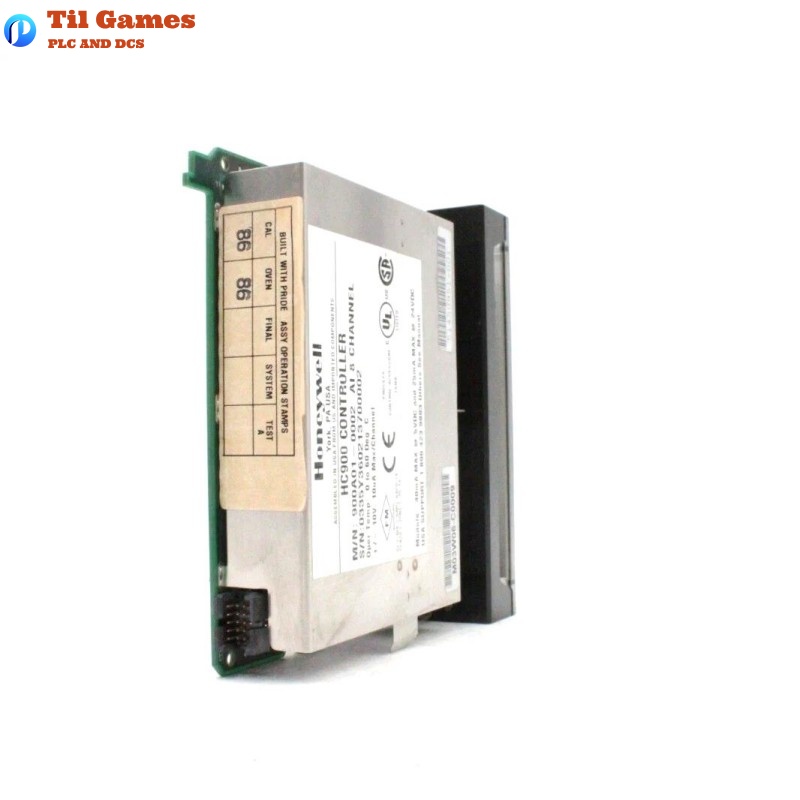

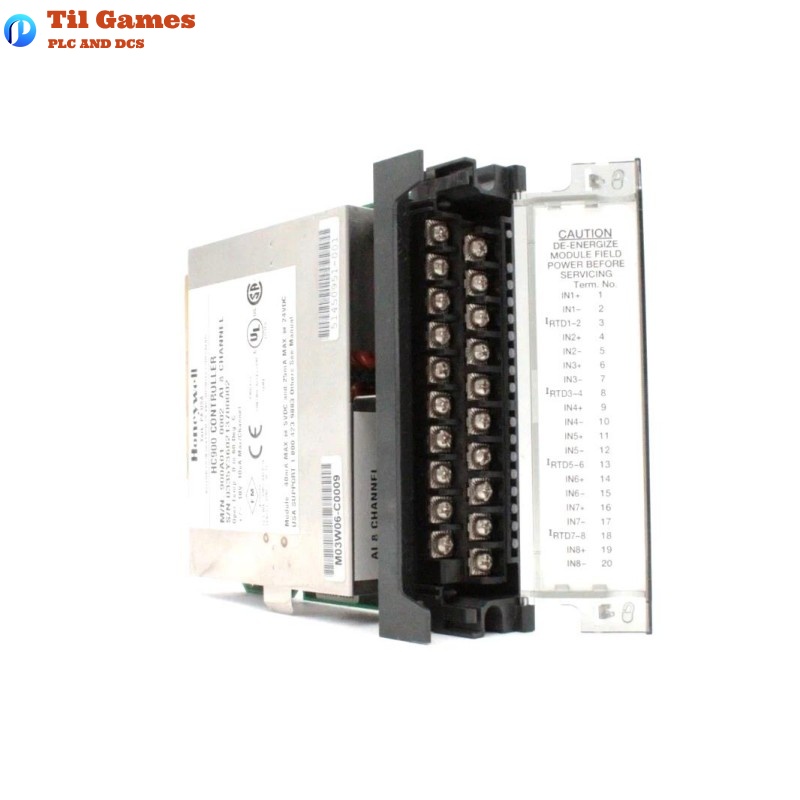

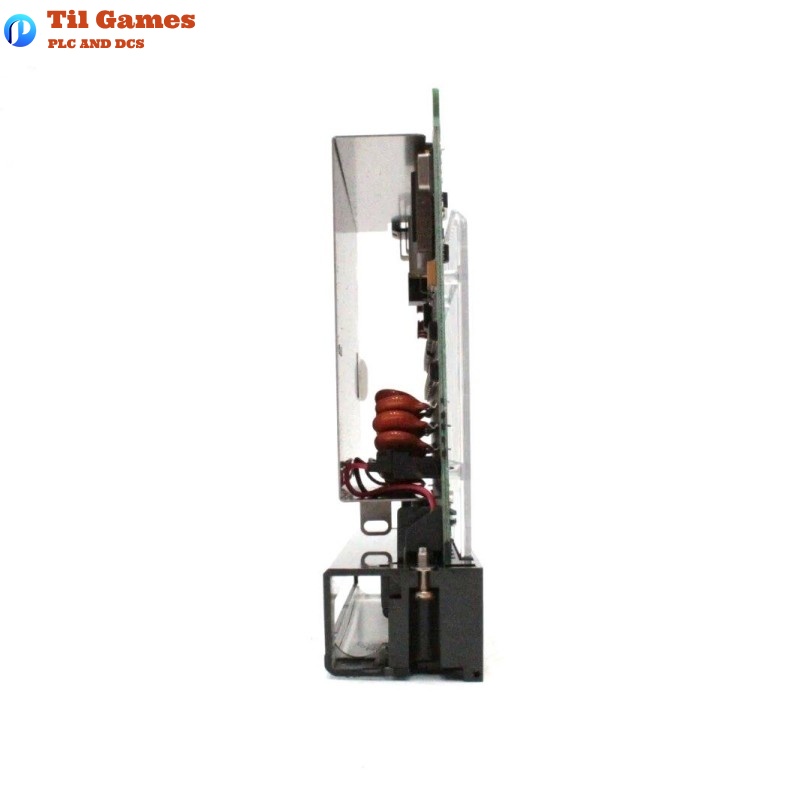

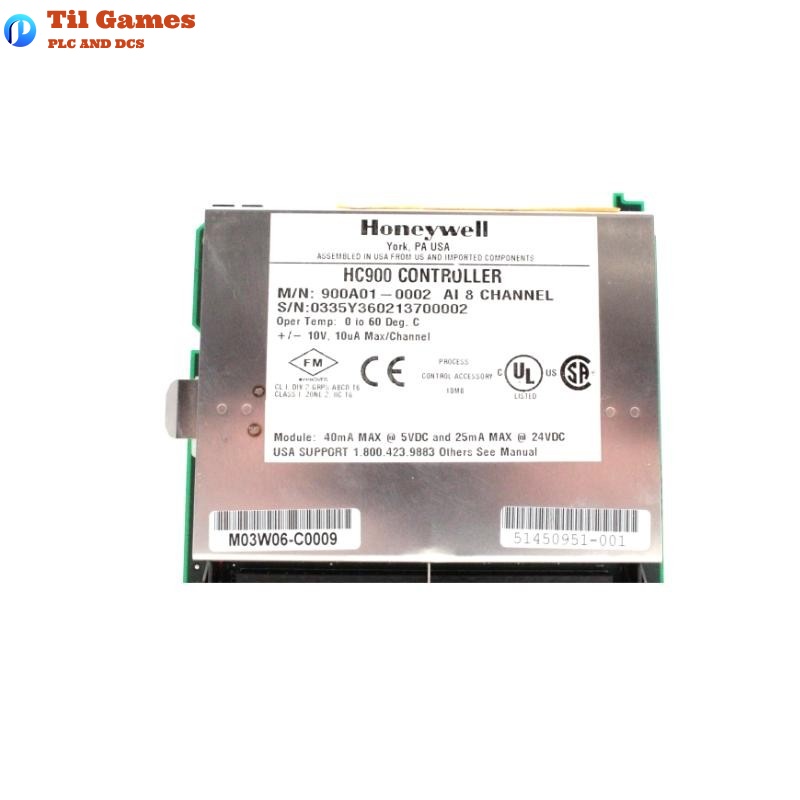

Honeywell 900A01-0002 ControlEdge HC900 Analog Output Module

Manufacturer：Honeywell

Product Number：900A01-0002

Product Type：Analog Output Module

Origin：USA

Dimensions：137 × 35.6 × 137.16 mm

Weight：0.21 kg

FAQ

Q1: How many analog outputs does the 900A01-0002 module support?
A1: The module provides 4 isolated analog current output channels.

Q2: What is the output current range of the module?
A2: Each output can be configured from 0 to 21.8 mA and scaled by the user as needed.

Q3: Are the output channels galvanically isolated?
A3: Yes, each output is isolated from the others (500 VDC) and from logic circuits (600 VDC).

Q4: Does the module support a failsafe value?
A4: Yes, a user-specified failsafe output value can be configured for loss of communication conditions.

Q5: Is output feedback supported?
A5: Yes, the module provides feedback to the controller indicating that current is flowing.

Q6: How is calibration managed for this module?
A6: Calibration data is stored in non-volatile memory; the module supports both redundant factory calibration and per-channel field calibration.

Q7: What is the maximum allowable load resistance per output?
A7: Each output can drive a load of up to 750 ohms.

Q8: How many of these modules can be installed in a single I/O rack?
A8: Up to 10 modules can be installed, or 12 with ambient temperature de-rating.
