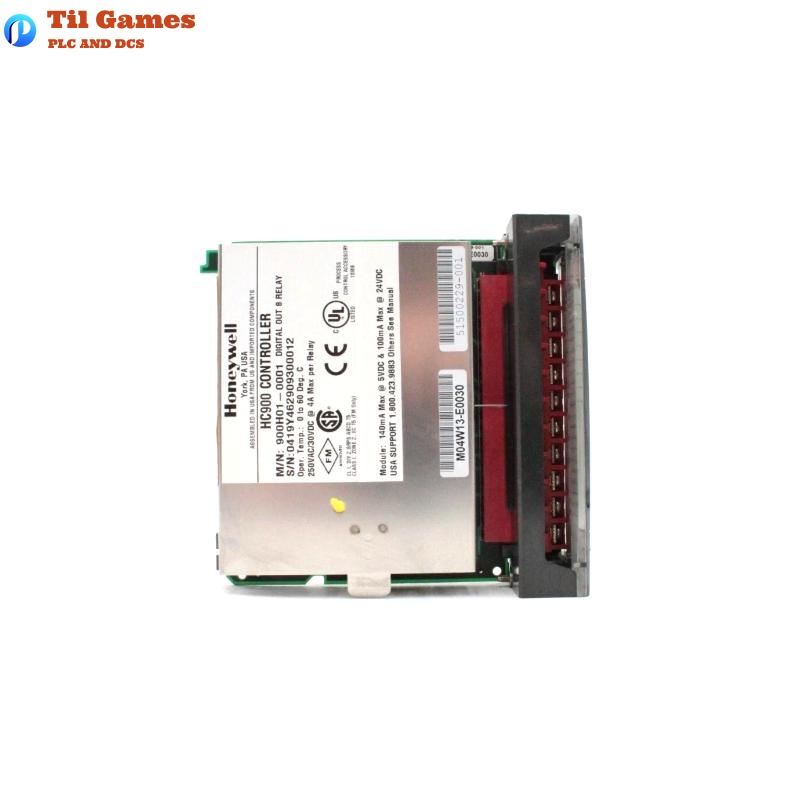

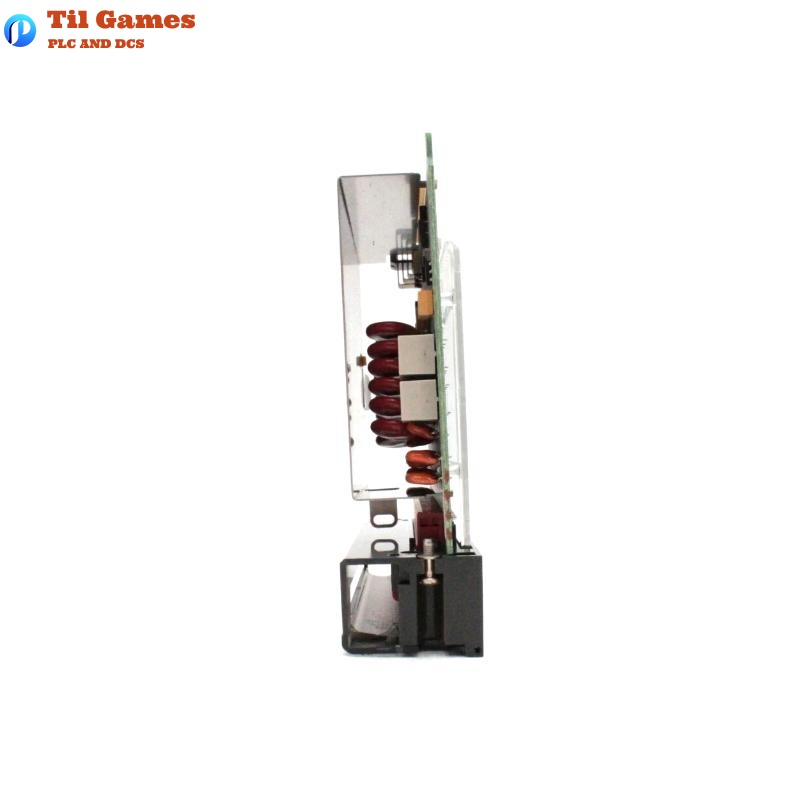

Technical Specifications

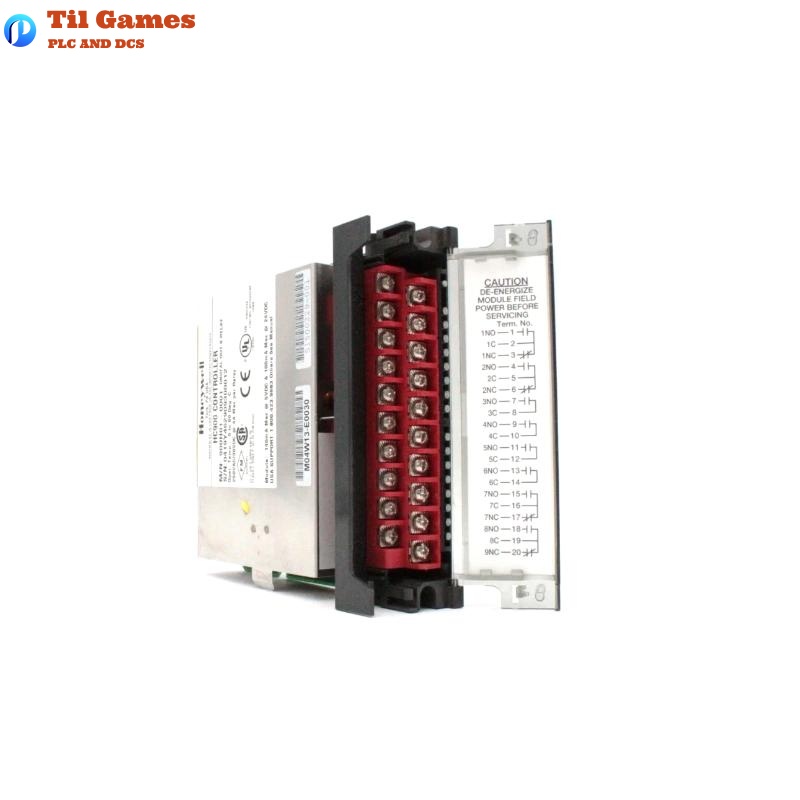

| Parameter | Description |
|---|---|
| Model Number | 900H01-0001 |
| Type | Relay Output Module |
| Relay Channels | 8 total (4 Form A, 4 Form C) |
| Output Type | Electromechanical relays |
| Voltage Rating | 120/240 VAC, 30 VDC |
| Current Rating | 4A @ 240VAC/30VDC resistive load |
| Incandescent Load | 0.5A @ 240VAC/30VDC |
| Isolation | Galvanic isolation: Relay-to-Relay and Relay-to-Logic |
| Max. Leakage Current | 1 mA @ 350 VDC |
| Response Time (OFF→ON) | ≤ 11 ms |
| Response Time (ON→OFF) | ≤ 8 ms |
| Life Expectancy (Mechanical) | 50 million operations (180 cycles/minute) |
| Life Expectancy (Electrical) | 100,000 operations |
| Power Consumption (5V) | 110 mA |
| Power Consumption (24V) | 100 mA |
| Dimensions (H x W x D) | 137 x 35.6 x 137.16 mm |
| Weight | 0.425 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the total number of relay outputs in the 900H01-0001 module?
A1: The module includes 8 relay outputs – 4 Form A and 4 Form C types.
Q2: What is the maximum resistive load each relay can handle?
A2: Each relay supports up to 4A at 240VAC or 30VDC resistive load.
Q3: Are the relays in this module galvanically isolated?
A3: Yes, both relay-to-relay and relay-to-logic isolations are provided.
Q4: What is the expected mechanical life of the relays?
A4: The mechanical life expectancy is 50 million operations at 180 cpm.
Q5: Does this module support fuse protection?
A5: The module itself does not include internal fuses. External fuses should be installed for each output.
Q6: What are the typical response times of the relays?
A6: OFF-to-ON is ≤11 ms, and ON-to-OFF is ≤8 ms.
Q7: Is there any limit to the number of these modules per rack?
A7: No specific limit is defined; however, power and thermal considerations must be met.
Q8: What is the module’s size and weight?
A8: The dimensions are 137 x 35.6 x 137.16 mm, and the weight is 0.425 kg.
