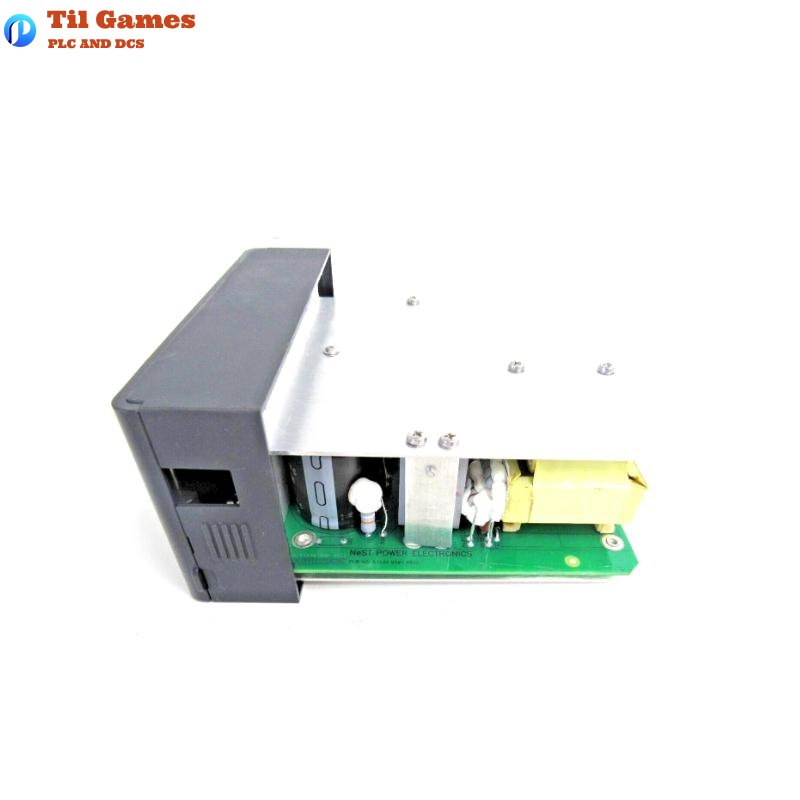

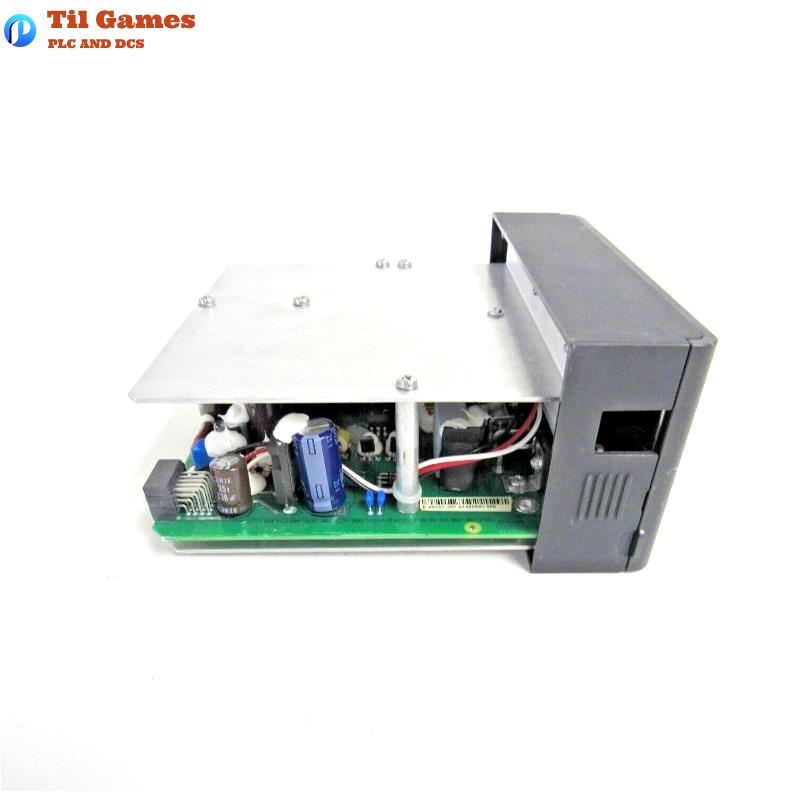

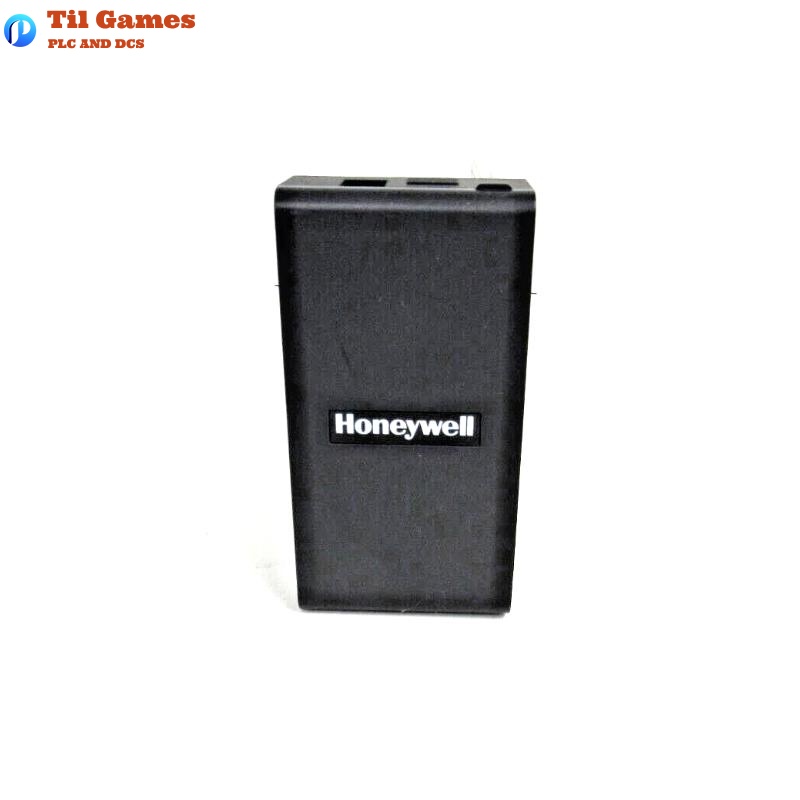

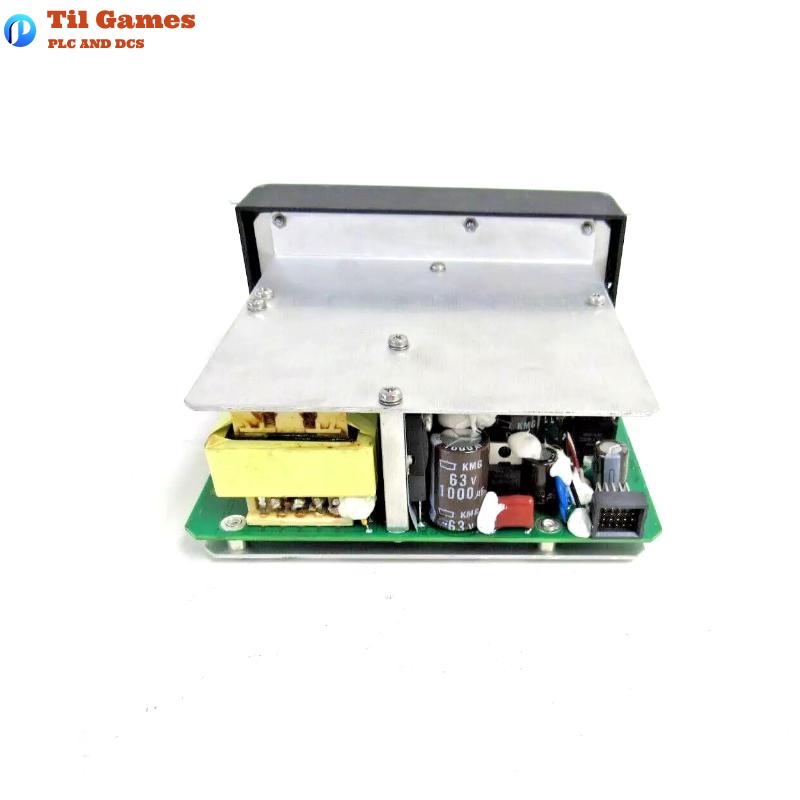

Honeywell 900P02-0301 Controller Power Supply Module Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 900P02-0301 |
| Type | Controller Power Supply Module |
| Input Voltage | 120/240 VAC |
| Power Rating | 28 W |
| Output Voltage | 5 VDC and 24 VDC |
| Mounting Method | Installed in HC900 controller or I/O rack |
| Application | Powers HC900 controllers and I/O modules |
| Operating Temp | 0 to 60°C |
| Storage Temp | -40 to 85°C |
| Humidity Range | 5% to 95% non-condensing |
| Cooling Method | Natural convection |
| Certifications | CE, UL, CSA, RoHS |
| Dimensions | 137 x 72.6 x 151 mm |
| Weight | 0.65 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What systems is the 900P02-0301 power supply compatible with?
A1: It is designed for use with Honeywell HC900 controller systems to supply regulated power to controllers and I/O modules.
Q2: Does it support redundant power configurations?
A2: Yes, it can be paired with another 900P01 or 900P02 to enable redundant power supply architecture in HC900 systems.
Q3: What output voltages does the module provide?
A3: The module provides both 5 VDC and 24 VDC outputs to meet the power requirements of different HC900 components.
Q4: Is hot swapping supported?
A4: No, the module does not support hot swapping. Power must be turned off before removing or installing.
Q5: What is the operating temperature range of the module?
A5: It operates reliably within a temperature range of 0 to 60°C, suitable for industrial environments.
Q6: Does the module have built-in protection?
A6: Yes, it includes an internal non-replaceable fuse for short circuit protection, enhancing system safety.
Q7: What rack types can this module be installed in?
A7: It can be installed in any HC900 controller or I/O expansion rack with 4, 8, or 12 slots.
Q8: What certifications does the module carry?
A8: The 900P02-0301 module is CE, UL, CSA, and RoHS certified, ensuring compliance with global industry standards.
