Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 900P24-0601 |

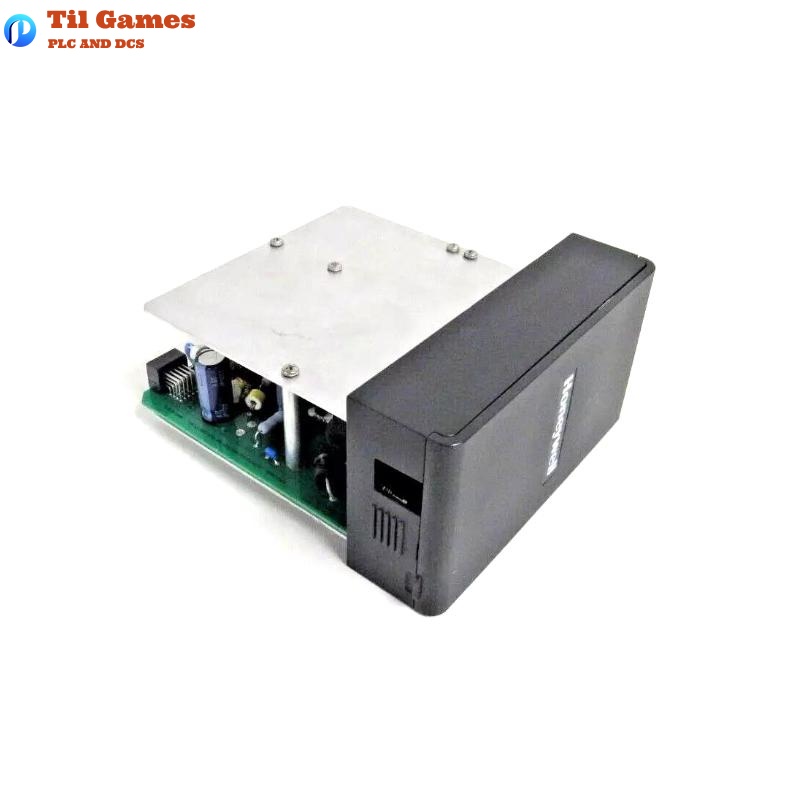

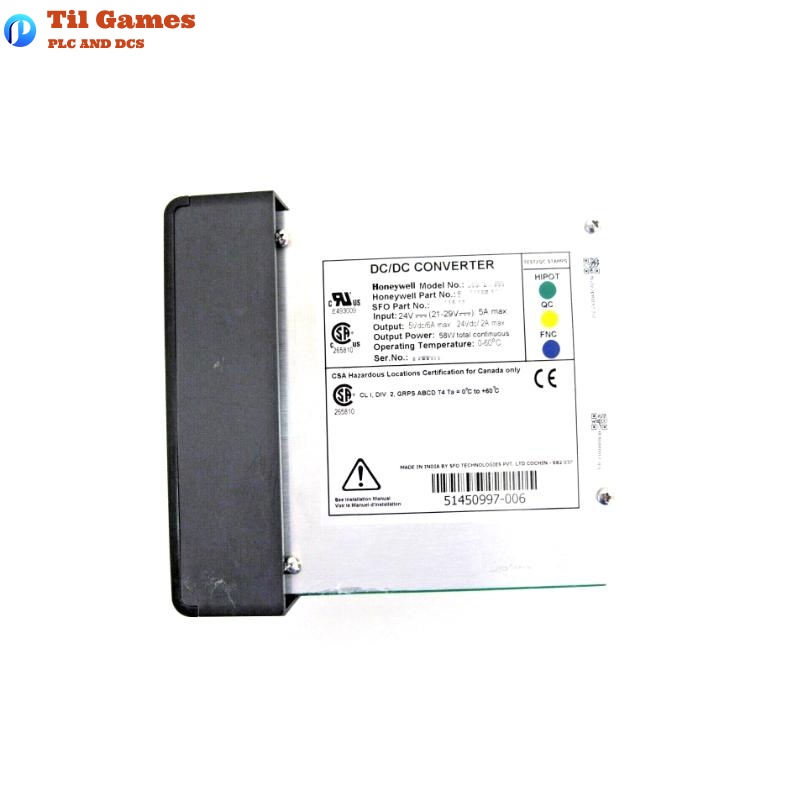

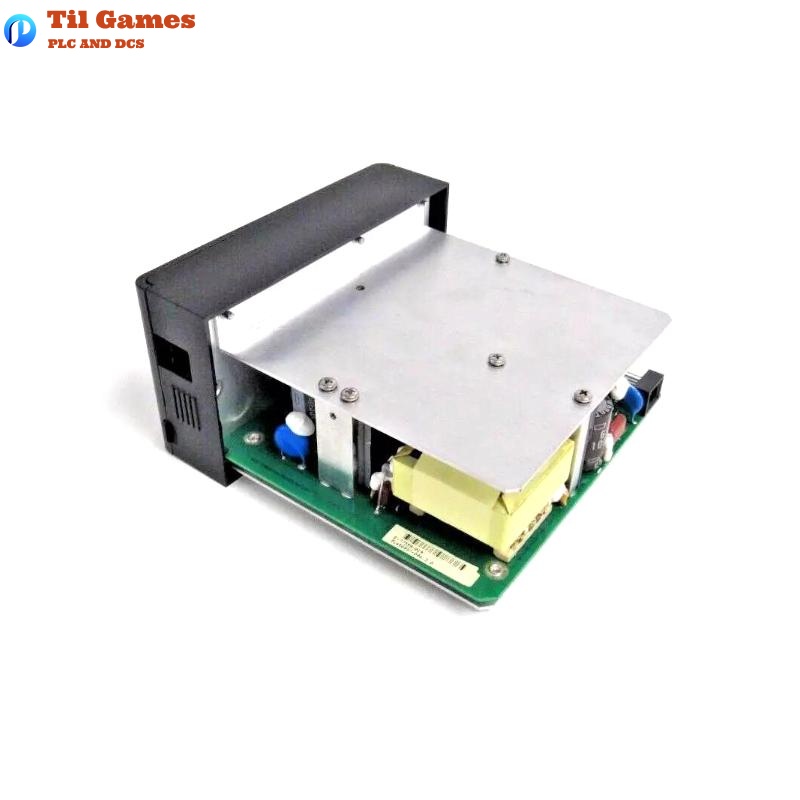

| Type | 24VDC Input Power Supply Module |
| Input Voltage Range | 21 to 29 VDC |
| Inrush Current | 30A @ 29VDC for 3ms |
| Output Voltage | 5VDC and 24VDC |
| Max Output Power | 60W |

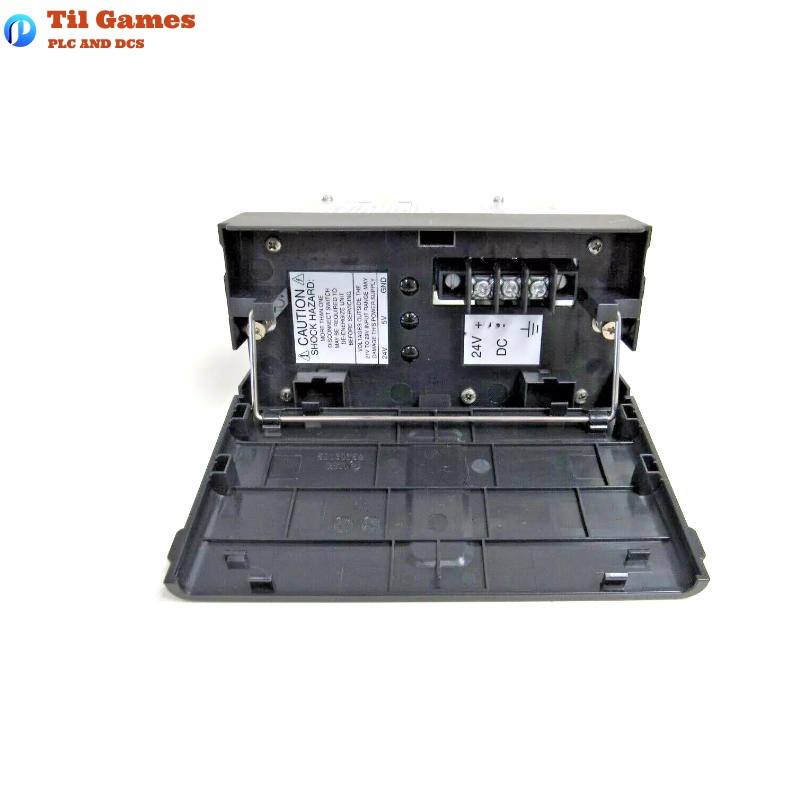

| Wiring Method | Screw terminals, supports #12–22 AWG wires |
| Internal Fuse | Non-replaceable type |
| Dimensions (H x W x D) | 137 x 72.6 x 151 mm |
| Weight | 0.65 kg |
| Certifications | CE, UL, CSA, ATEX, FM |
| Mounting | Standard 35mm DIN rail |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | Operating: 10%–90%, Storage: 5%–95%, non-condensing |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of power input does the 900P24-0601 module support?
A1: It supports 24VDC input with an operating range of 21 to 29 VDC.
Q2: What is the output power capacity of the module?
A2: The module delivers up to 60W total, providing both 5VDC and 24VDC.
Q3: What is the inrush current on startup?
A3: The inrush current is 30A for 3 milliseconds at 29VDC input.
Q4: Does the module contain a replaceable fuse?
A4: No, it contains a non-replaceable internal fuse for protection under fault conditions.
Q5: Which certifications does this module comply with?
A5: The module meets CE, UL, CSA, ATEX, and FM standards.
Q6: What HC900 configurations is the module compatible with?
A6: It supports controller racks, remote I/O racks, and redundant controller racks.
Q7: How is the module mounted?
A7: It mounts on a standard 35mm DIN rail.
Q8: What is the operating temperature range?
A8: The module operates from 0 to 60°C and can be stored from -40 to 70°C.
