Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | Honeywell 900R08-0101 |

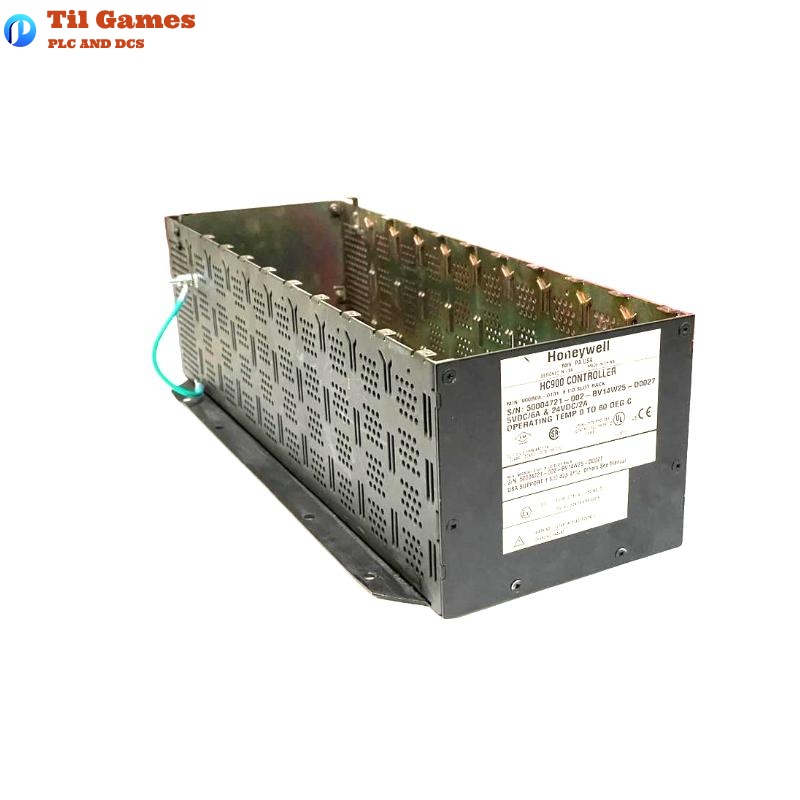

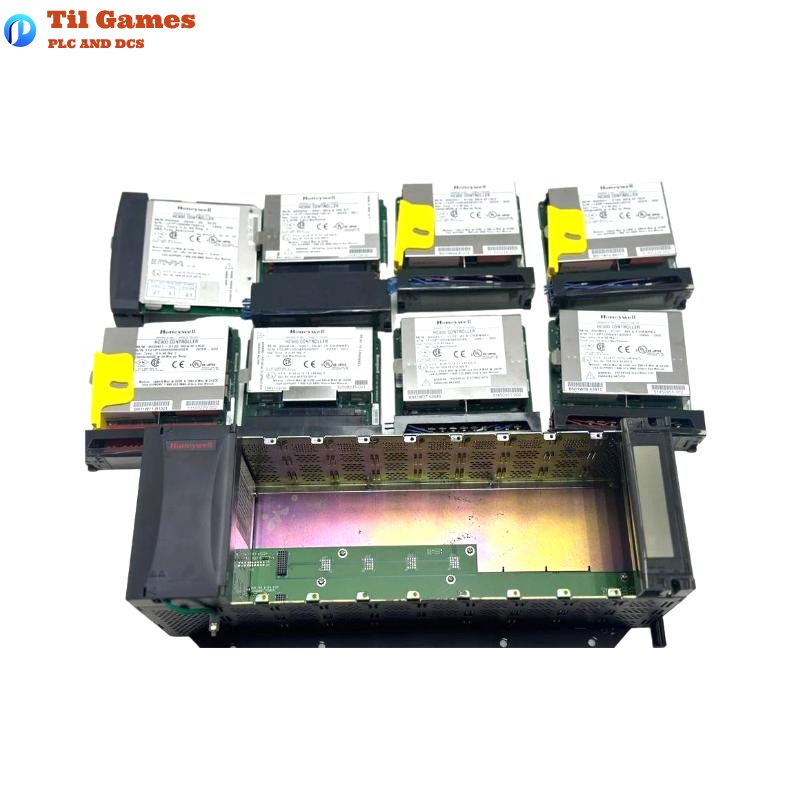

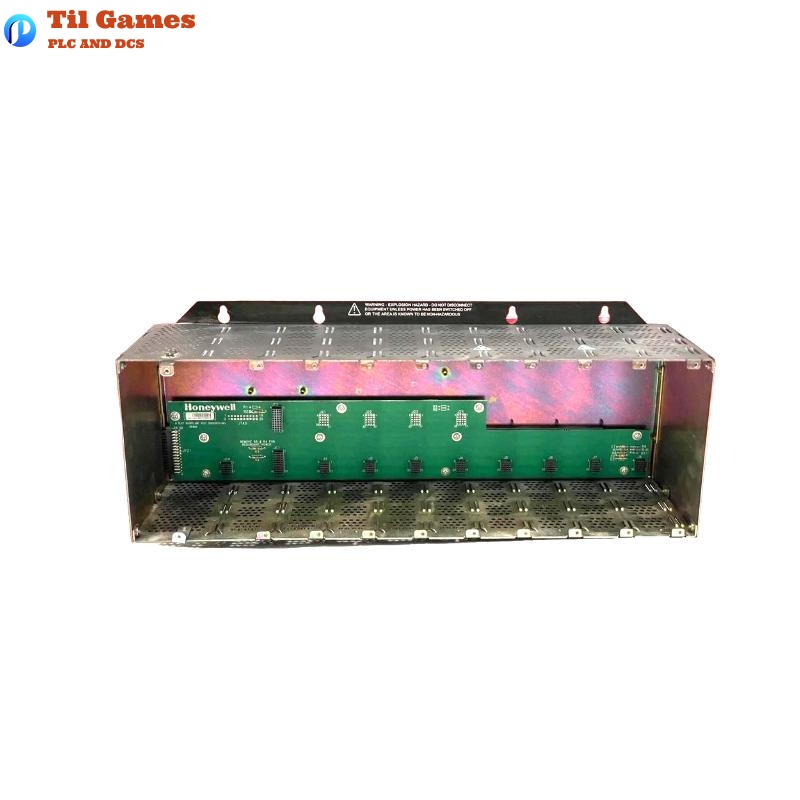

| Description | ControlEdge HC900 8-slot standard I/O rack |
| Mounting Method | Surface mount with 4 screws on the back |
| Module Handling | Hot-swappable modules supported |
| Tray Material | PVC with UL94-V0 flammability rating |
| Temperature Range | Operating: 0°C to 60°C; Storage: -40°C to 70°C |
| Humidity Range | Operating: 10% to 90%; Storage: 5% to 95% non-condensing |
| Certifications | CE, UL, ATEX, IECEx, CSA, FM, UKCA |
| Dimensions (HxWxD) | 137 x 419.1 x 151.7 mm |
| Weight | 3.126 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does the 900R08-0101 rack support hot-swapping of modules?
A1: Yes, modules can be inserted or removed under power for convenient maintenance.
Q2: What types of I/O modules are supported?
A2: It supports various types including analog input/output, digital input/output, pulse/frequency/quadrature modules.
Q3: Does this rack support redundant power supplies?
A3: No, the 900R08-0101 is the standard version; for redundancy, use model 900R08R-0300.
Q4: What are the installation requirements?
A4: It must be mounted inside an enclosure, using either a 35mm DIN rail or rear panel mounting.
Q5: Is there mechanical keying to prevent wrong module insertion?
A5: Yes, hardware keying ensures correct module-to-terminal block matching.
Q6: Is the rack vibration-resistant?
A6: Yes, it meets industrial vibration standards (up to 1g, 250Hz).
Q7: Can the rack operate in harsh environments?
A7: Yes, all modules (except PSU) have G3 conformal coating for harsh environments.
Q8: What is the maximum power load the rack can handle?
A8: Total power depends on the mix of modules and the installed power supply (typically 60W for standard PSU).
