Technical Specifications
| Parameter | Description |
|---|---|

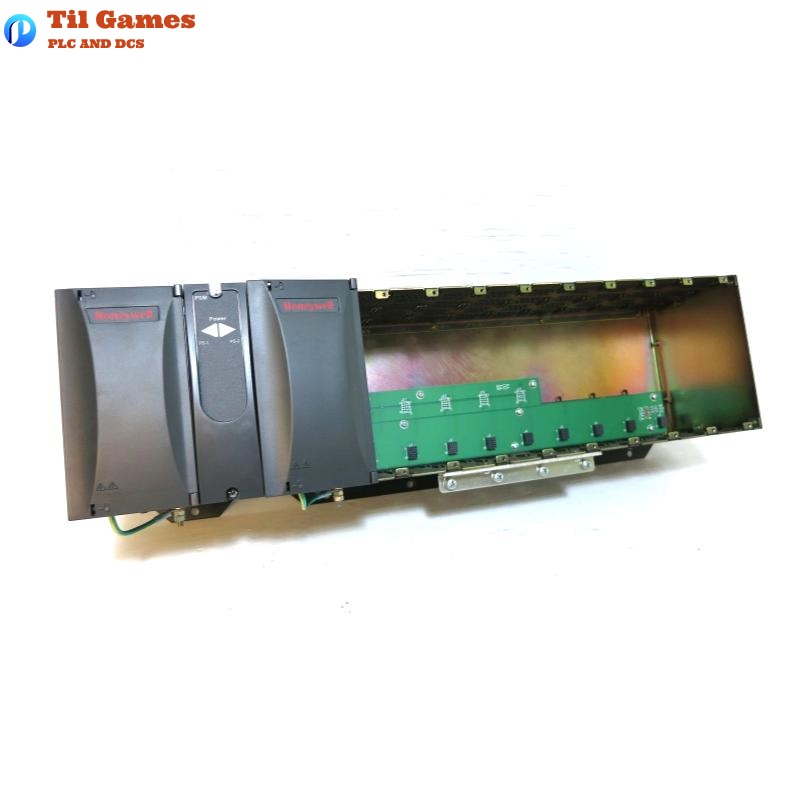

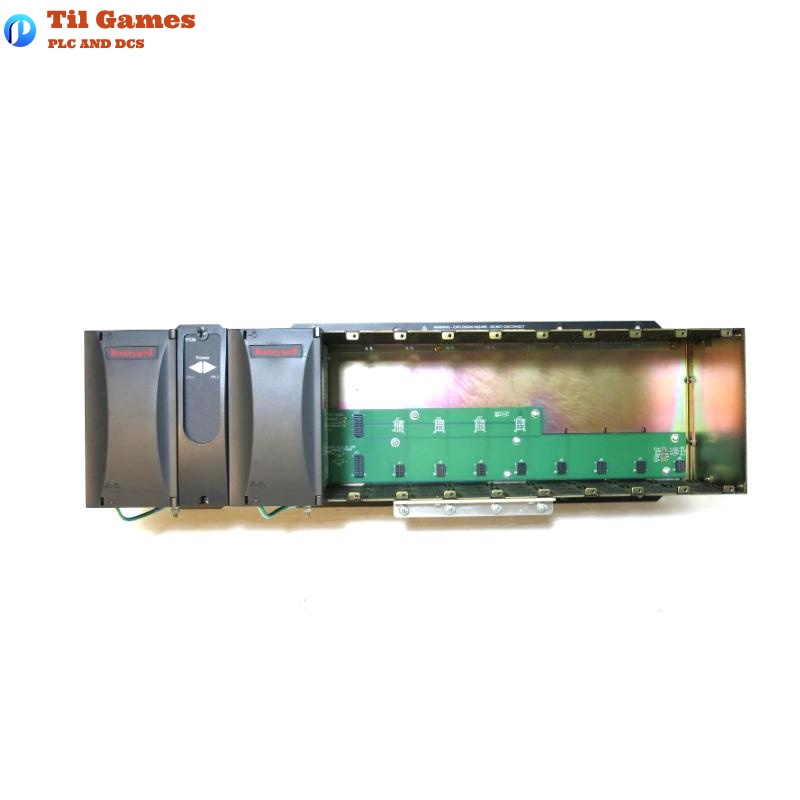

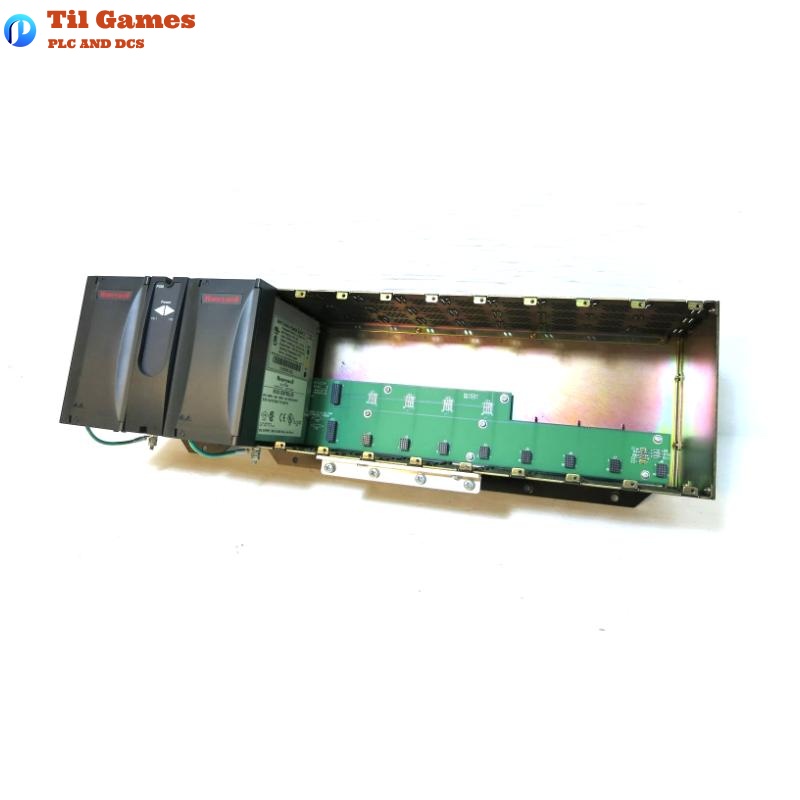

| Model Number | 900R08R-0200 |
| Slot Count | 8 slots for local I/O modules |
| Power Supply Support | Supports redundant power modules |
| Hot Swappable | Modules can be inserted or removed under power |
| Mounting | Standard 35mm DIN rail |
| Status LEDs | Tri-color LED for module status (Green = OK, Red = Fault, Amber = Force) |
| I/O Indicators | Channel LEDs for digital I/O status |
| Labeling | Removable, writable I/O label on module door |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | Operating: 10%–90% non-condensing; Storage: 5%–95% non-condensing |
| Vibration Resistance | 5Hz–15.77Hz: 2.03mm peak; 15.77–250Hz: 1.0g acceleration |
| Flammability Rating | Tray material: PVC, UL94-V0 |
| Dimensions (H x W x D) | 137 x 530.9 x 151.7 mm |
| Weight | 4.422 kg |
| Certifications | CE, UL, ATEX, IECEx, UKCA, CSA, FM |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does this 8-slot rack support redundant control?
A1: Yes, the 900R08R-0200 is designed to support redundant power and controller configurations.
Q2: Are the modules hot-swappable?
A2: Yes. Modules can be inserted or removed under power, but field power should be disconnected before terminal removal.
Q3: Do I need special terminal blocks?
A3: Both Barrier and Euro style terminal blocks are available depending on the I/O module type.
Q4: What types of I/O modules are supported?
A4: A variety of modules are supported, including analog input/output, digital input/output, relay output, and pulse input.
Q5: What are the typical applications for this rack?
A5: It’s used in applications like thermal process control, water treatment systems, and power generation systems.
Q6: Does the rack have status LEDs?
A6: Yes. Each module includes channel LEDs and a tri-color module status LED for quick diagnostics.
Q7: Are there environmental restrictions for installation?
A7: Yes. It should be installed in a control cabinet with proper ambient conditions and no forced airflow over modules.
Q8: What is the maximum supported power load?
A8: With a 60W power module, the total power capacity depends on the mix and number of I/O modules installed.
