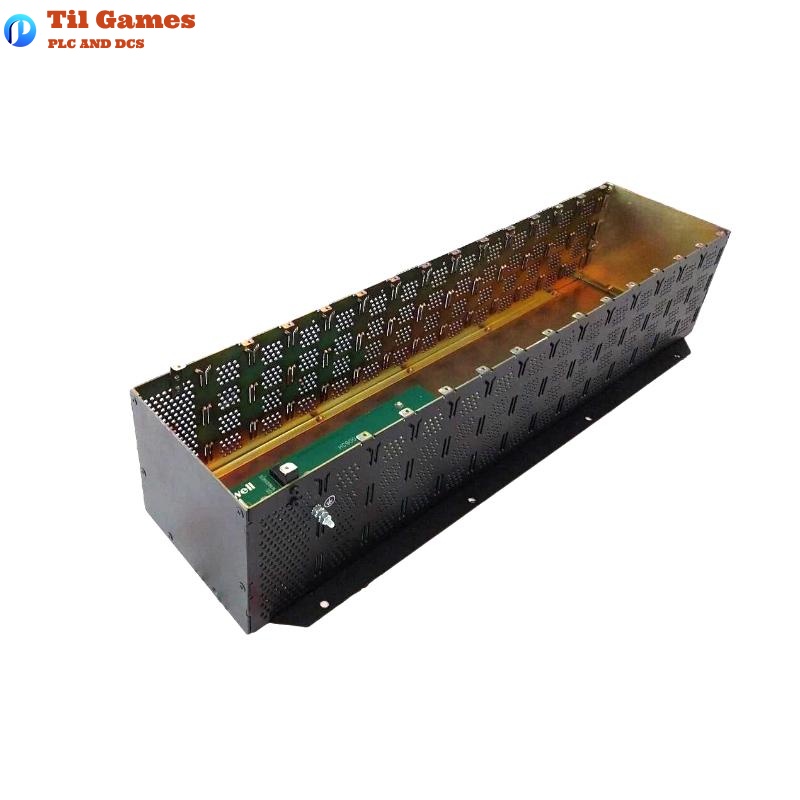

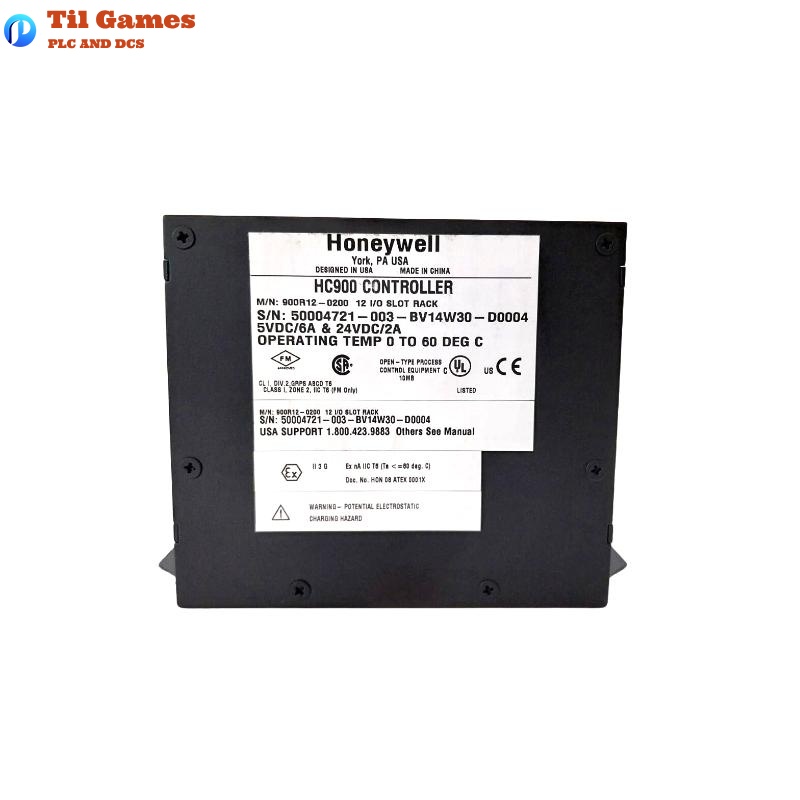

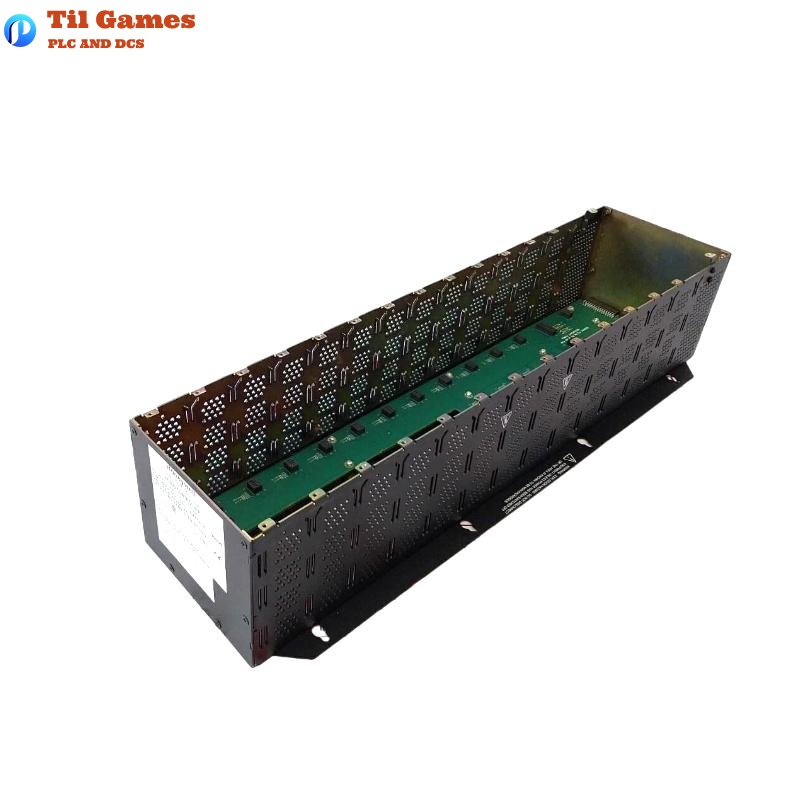

Honeywell 900R12-0200 ControlEdge HC900 12 I/O slot Rack

FAQ

Q1: Does the 12-slot I/O rack support hot-swapping of modules?
A1: Yes, the 900R12-0200 rack supports hot-swap for I/O modules without powering down the controller.

Q2: Is redundant power supported?
A2: This model does not support redundant power. Use model 900R12R-0300 for redundant power capability.

Q3: What mounting method is used?
A3: It supports surface mounting using four screws on the back.

Q4: Is DIN rail mounting possible?
A4: Yes, it supports installation on a standard 35 mm DIN rail.

Q5: Can it operate in harsh industrial environments?
A5: Yes, all components are coated for G3-level harsh environment operation, except for the PSU.

Q6: What is the weight of the rack?
A6: The rack weighs 4.072 kg.

Q7: Is it certified under CE and UL standards?
A7: Yes, the product meets CE, UL, ATEX, IECEx, CSA, FM, and RoHS 2 directives.

Q8: What is the normal operating temperature range?
A8: The standard operating temperature range is 0°C to 60°C.
