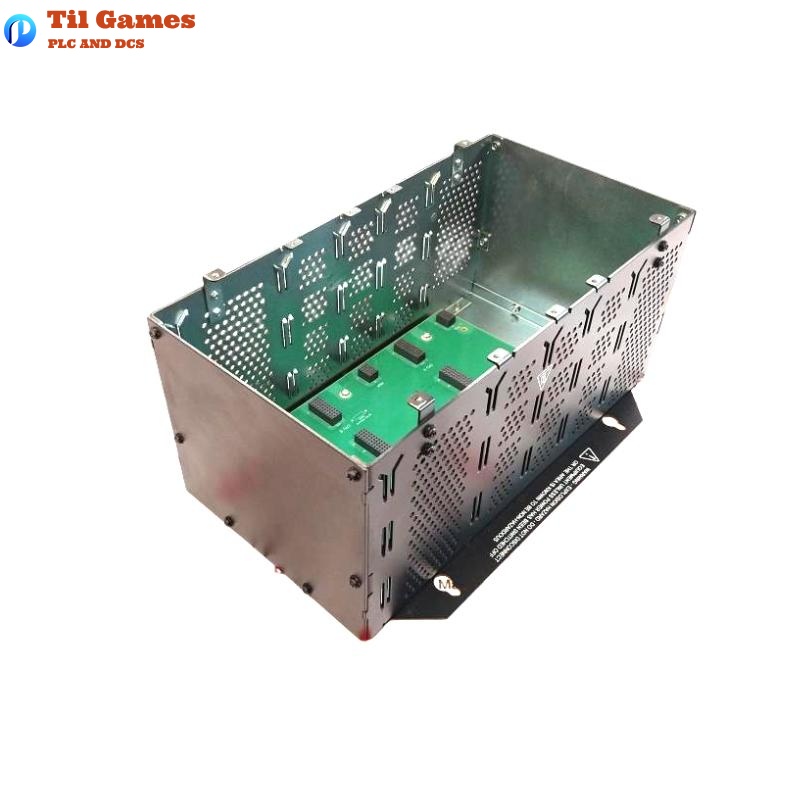

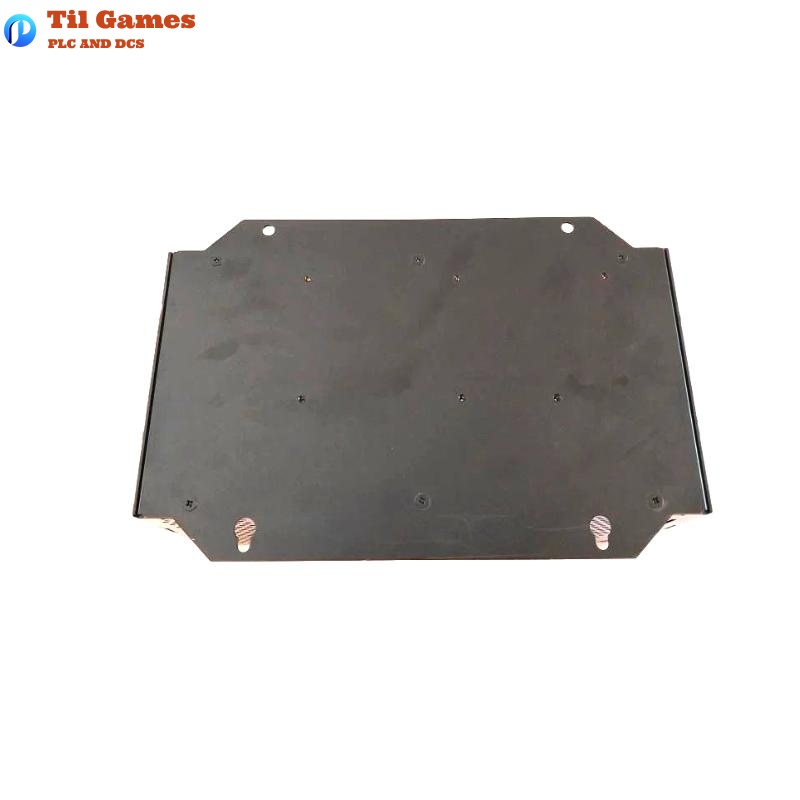

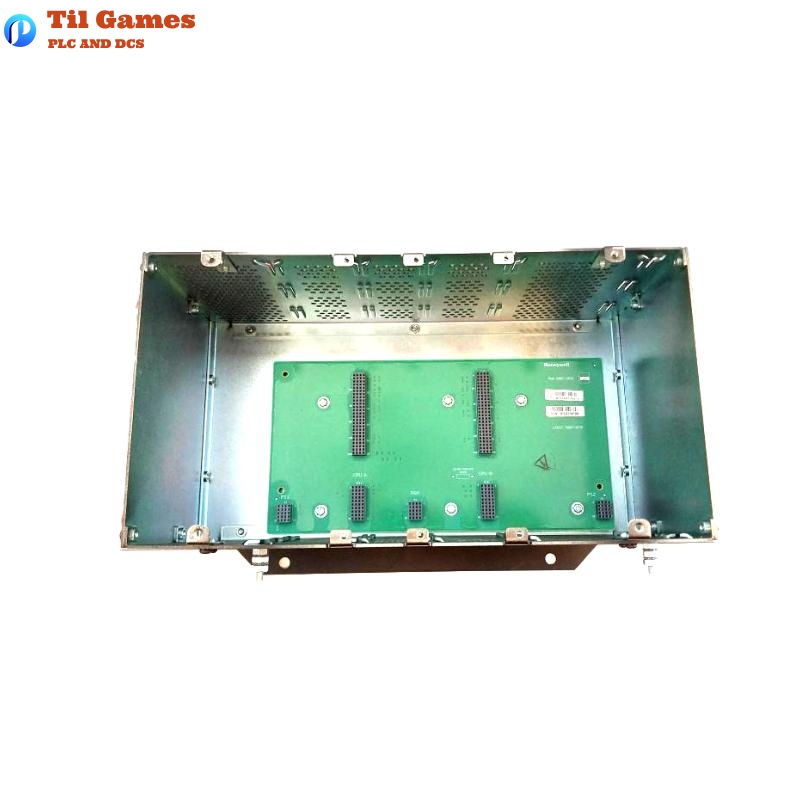

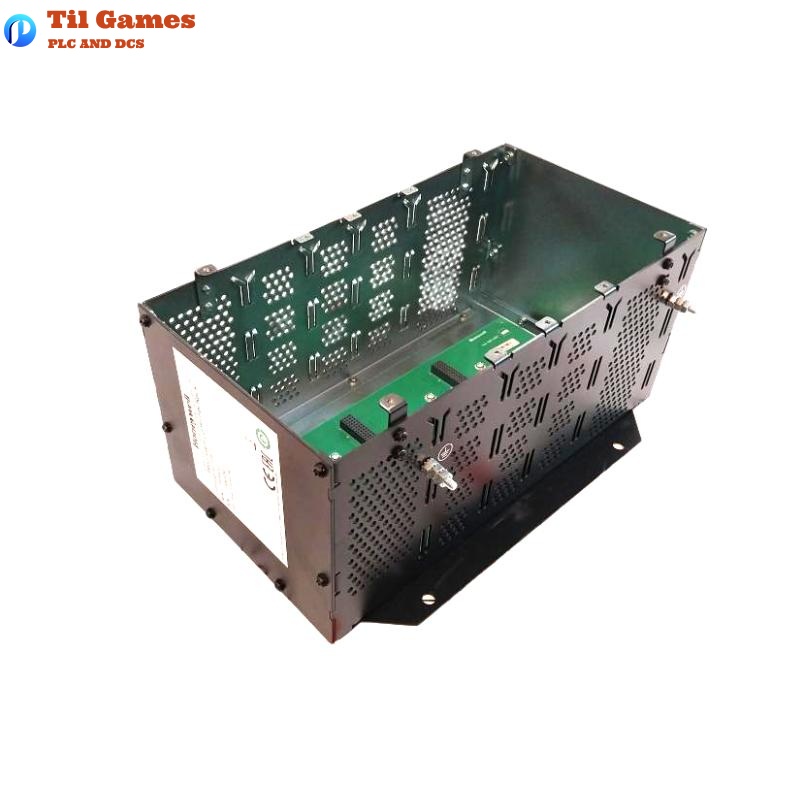

Honeywell 900RR0-0101 ControlEdge HC900 Redundant CPM Rack

FAQ

Q1: What is the primary function of the Honeywell 900RR0-0101?
A1: It supports redundant Control Processing Modules (CPMs) in the HC900 system, providing high system availability and fault tolerance.

Q2: What type of mounting does the rack support?
A2: It supports 35mm DIN rail mounting for convenient integration into control enclosures.

Q3: What is the operating temperature range for the 900RR0-0101?
A3: It operates from 0°C to 60°C and can be stored between -40°C and 70°C.

Q4: Is the product certified for industrial safety standards?
A4: Yes, it complies with CE, UL, ATEX, UKCA, IECEx, CSA, and FM certifications.

Q5: Does the 900RR0-0101 have vibration resistance?
A5: Yes, it withstands vibrations of 2.03mm at 5–15.77Hz and 1.0g at 15.77–250Hz.

Q6: Is there protection against harsh environments?
A6: Yes, all modules (except PSU) have G3-level conformal coating for corrosion resistance.

Q7: Can this rack be used with different power supplies?
A7: Yes, it is compatible with Honeywell 900P01 and 900P24 power supply modules.

Q8: What are the dimensions and weight of the 900RR0-0101?
A8: The dimensions are 137 x 261.6 x 151.7 mm, and the weight is 1.751 kg.
