Technical Specifications
| Parameter | Description |
|---|---|

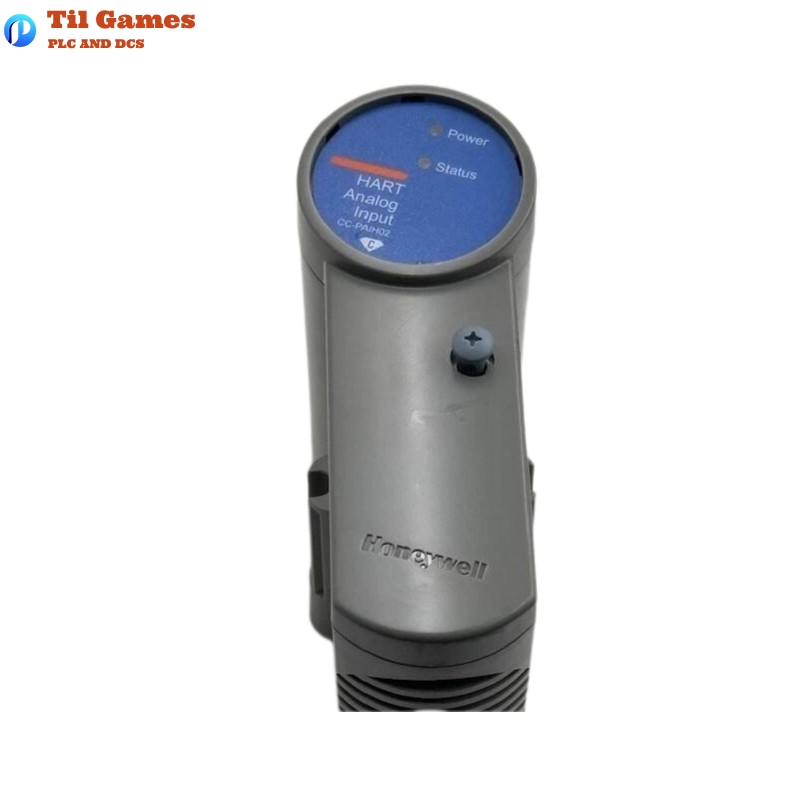

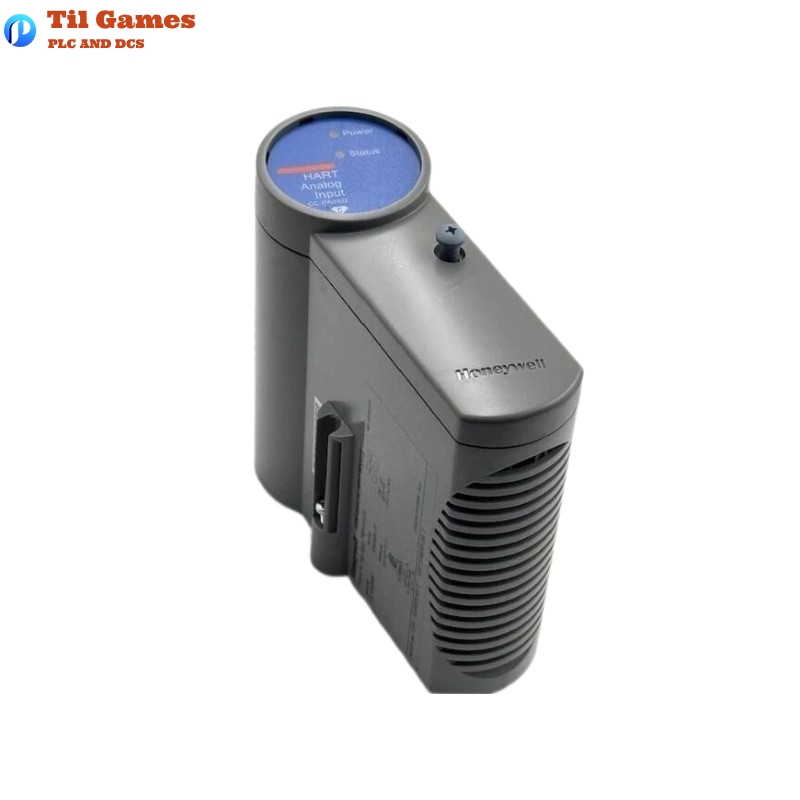

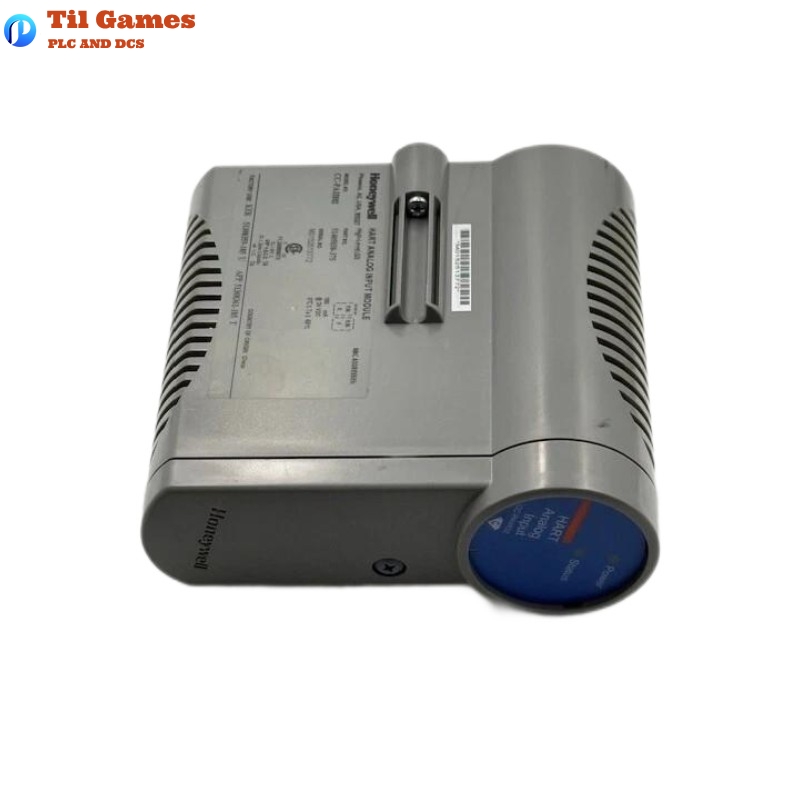

| Model | CC-PAIH02 |
| Input Type | High-Level Analog Input with HART |
| Number of Channels | 16 channels (support for full differential inputs on all 16 channels) |
| Input Signal Range | 4–20 mA, 0–5 V, 1–5 V |
| Input Type Support | Differential and single-ended |
| HART Compatibility | Yes (HART 6.0 and later) |
| Redundancy Options | Supports redundant and non-redundant IOTA setups |
| Mounting | Compatible with Cx-TAIX01, Cx-TAIX11, CC-TAID01, CC-TAID11, etc. |
| IOM Block | AI-HART |
| Protocol | Series C HART support (device data embedded in AI block) |
| Power Requirements | Integrated with system power (via IOTA) |
| Configuration Software | Experion PKS R410 and later |
| Module Compatibility | Compatible with various GI/IS and standard IOTAs |
| Dimensions (W x H x D) | 159 mm x 50 mm x 160 mm |
| Weight | 0.8 kg |
FAQ
FAQ (Q&A Format)
Q1: What is the main function of the CC-PAIH02 module?
A1: The CC-PAIH02 functions as a 16-channel high-level analog input module with HART protocol support, designed for integration into Honeywell’s Series C systems.
Q2: Does the CC-PAIH02 module support differential inputs?
A2: Yes, the CC-PAIH02 supports differential inputs on all 16 channels, offering greater flexibility and noise immunity in analog signal acquisition.
Q3: Which systems or configurations is the CC-PAIH02 compatible with?
A3: It is compatible with Series C I/O systems, specifically supporting IOTAs such as CC-TAID01, CC-TAID11, Cx-TAIX01, and Cx-TAIX11 for both redundant and non-redundant configurations.
Q4: Is this module compatible with HART communication protocols?
A4: Yes, it supports HART protocol version 6.0 and above, with features like HART device variable mapping, device status, and configuration transfer.
Q5: What software version is required to operate the CC-PAIH02?
A5: It is supported on Experion PKS R410 or later. Older firmware versions are not compatible and may result in module malfunction.
Q6: Can this module be used in intrinsically safe environments?
A6: Yes, when used with suitable GI/IS IOTA models like Cx-GAIX11 or Cx-GAIX21, along with isolators such as MTL4541 or MTL4544.
Q7: What are the power and wiring requirements for installation?
A7: It draws power via the IOTA base and requires proper grounding. Wiring depends on the IOTA type and may require shielded cables for analog signals.
Q8: What distinguishes CC-PAIH02 from its predecessor CC-PAIH01?
A8: CC-PAIH02 offers differential input capability across all 16 channels and full HART integration, while CC-PAIH01 supports differential inputs only on selected channels.
