Technical Specifications
| Parameter | Specification |
|---|---|

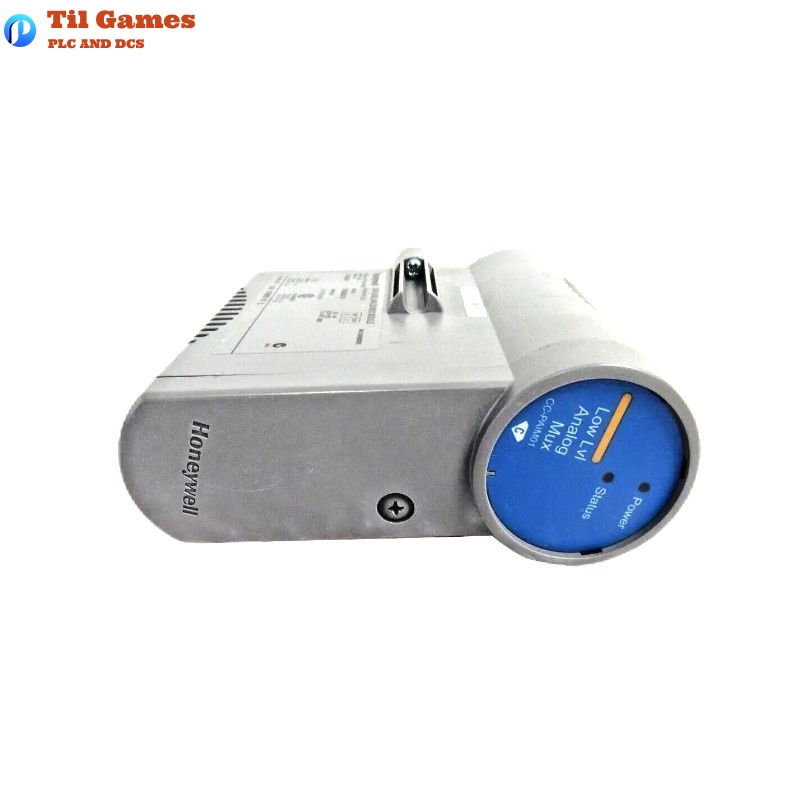

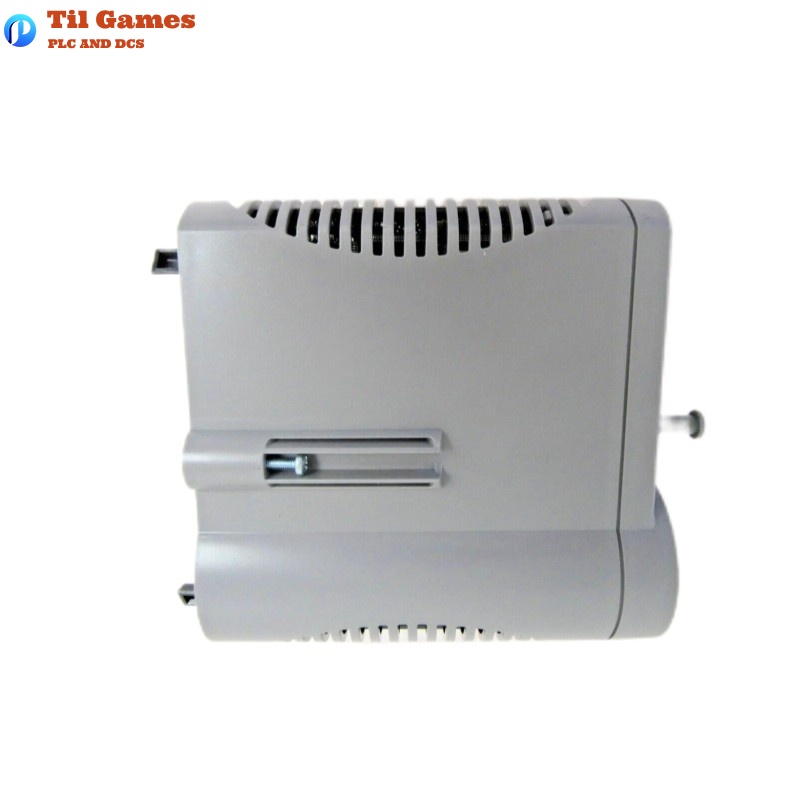

| Module Model | CC-PAIM01 |
| Input Type | Thermocouple (TC) and RTD |
| Input Channels | Up to 64 channels (in 16-point increments), fully isolated |
| Input Scan Rate | 1 second fixed (up to 64 channels/sec max.) |
| Channel Bandwidth | 0–4.7 Hz (-3 dB) |
| TC Input Nominal Range | -20 to +100 millivolts |
| Max Continuous Input | TC: -10 to +10V; RTD: -1 to +2V @ 100mA |
| Gain Error | ±0.050% Full Scale (max) |
| Temperature Stability | ±20 ppm/°C for both TC and RTD |
| Long-Term Drift | 500 ppm |
| Input Impedance (TC) | 1 MΩ at DC |
| CMV vs. Power System Common | ±250 VDC or VAC RMS |
| CMRR (50/60 Hz) | ≥ 120 dB |
| Channel-to-Channel Voltage | ±250 VDC or VAC RMS |
| Crosstalk | ≥ 80 dB (≥120 dB at 50/60 Hz) |
| NMRR | ≥ 60 dB |
| Cold Junction Accuracy (CJR) | 0–50°C: ±1.0°C; -20–60°C: ±1.5°C |
| RTD Excitation Current | 1 mA |
| TC Linearization Accuracy | ±0.05 Ω/°C |
| Open TC Detection | ≤1000Ω guaranteed no-trip, ≥1500Ω guaranteed trip |
| RTD Max Lead Resistance | 15 Ω |
| Surge Protection (sensor end) | EN 61000-4-5 (1kV line-line, 2kV line-ground) |
| Max Cable Length to FTA | 1000 ft with 16 AWG, 2-twisted pairs per FTA |
| Supported RTD Types | Pt100 (DIN/JIS), Ni120, Cu10 |
| Supported TC Types | ANSI J, K, E, T, B, S, R; JIS R’ |
| Supported mV Range | -20 to +100 mV |
| Dimensions | 63.5 mm (D) × 124.46 mm (W) × 307.34 mm (L) |
| Weight | 0.299 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of temperature inputs are supported?
A1: The module supports both thermocouple types (J, K, T, E, B, S, R, R’) and RTDs (Pt100, Ni120, Cu10).
Q2: How many input channels can one module handle?
A2: Up to 64 channels, added in 16-channel increments.
Q3: Does it support open thermocouple detection (OTD)?
A3: Yes, it performs OTD and marks invalid inputs as NAN to prevent incorrect control.
Q4: What is the scan rate for input channels?
A4: The scan rate is fixed at 1 second for up to 64 channels.
Q5: Is each channel electrically isolated?
A5: Yes, all channels are fully isolated from each other and from power system ground.
Q6: What is the maximum allowable common mode voltage?
A6: The module supports up to ±250 VDC or VAC RMS CMV.
Q7: Is the module surge protected?
A7: Yes, it meets EN 61000-4-5 industrial surge protection standards.
Q8: What are the dimensions and weight of the module?
A8: The dimensions are 63.5 × 124.46 × 307.34 mm and the weight is 0.299 kg.
