Technical Specifications
| Parameter Category | Specification Details |
|---|---|

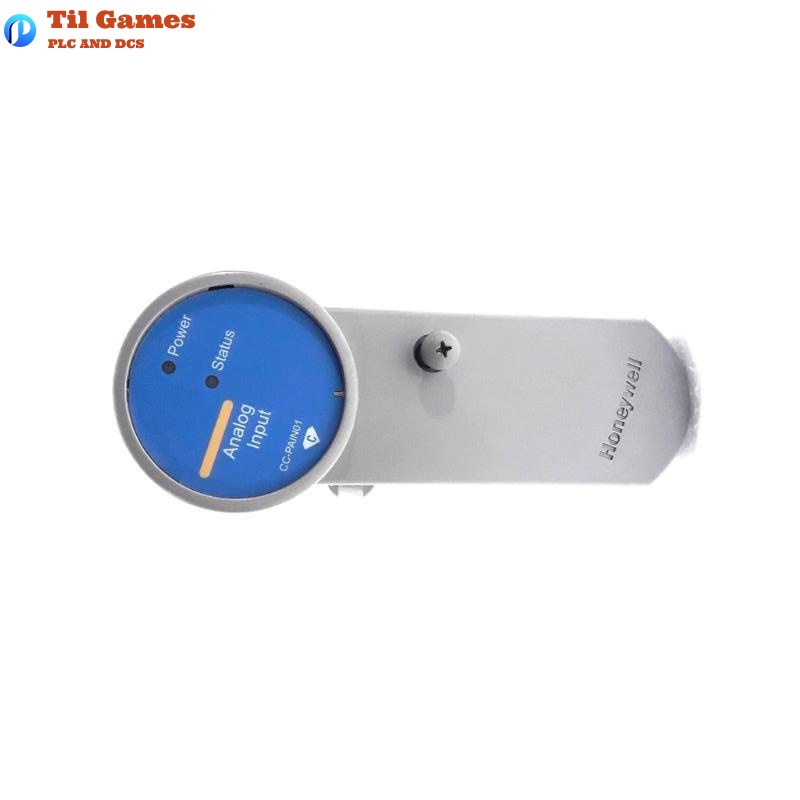

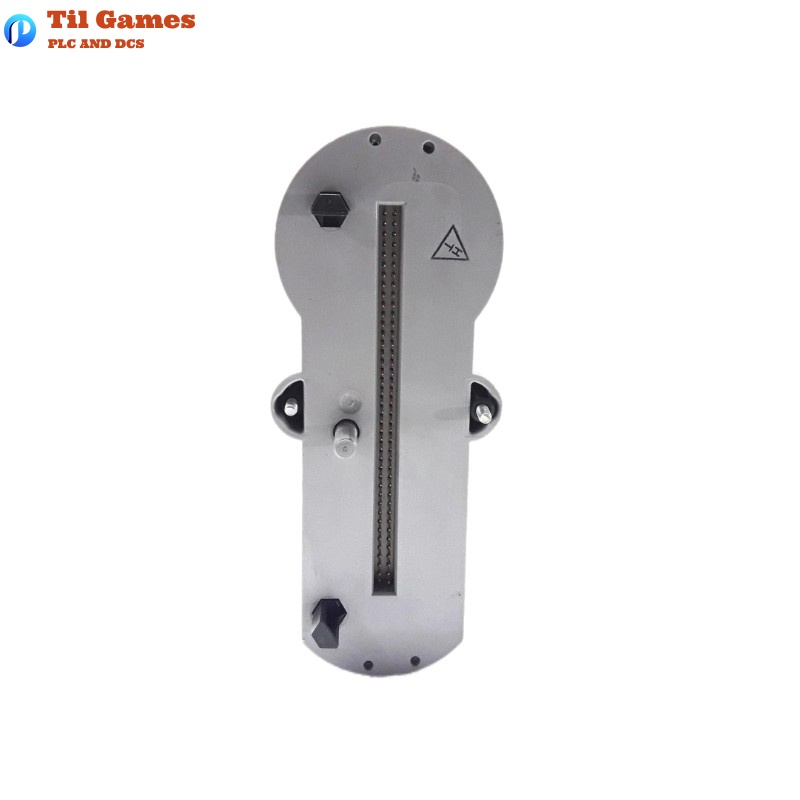

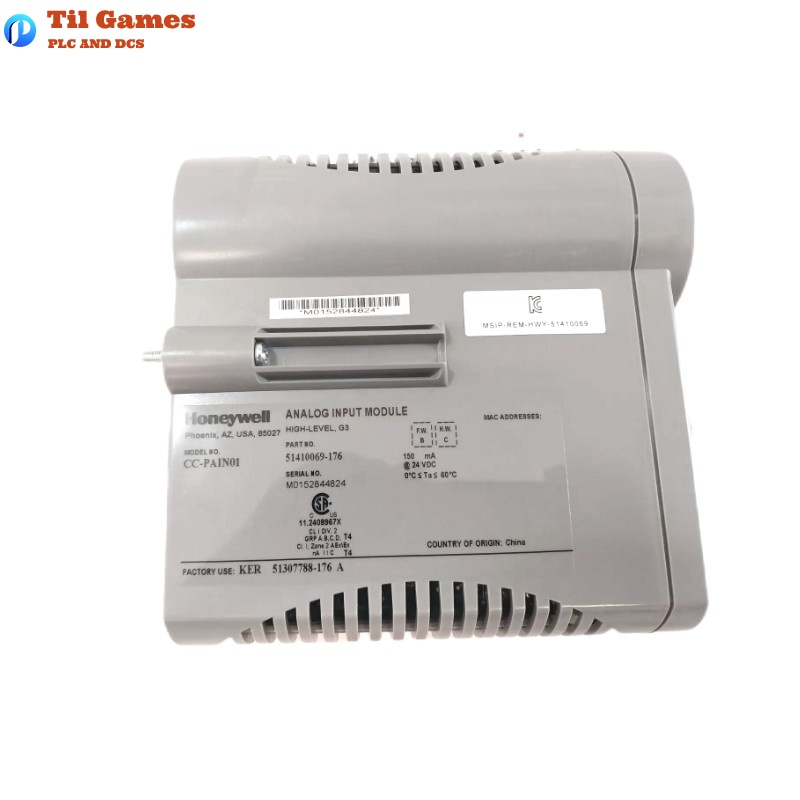

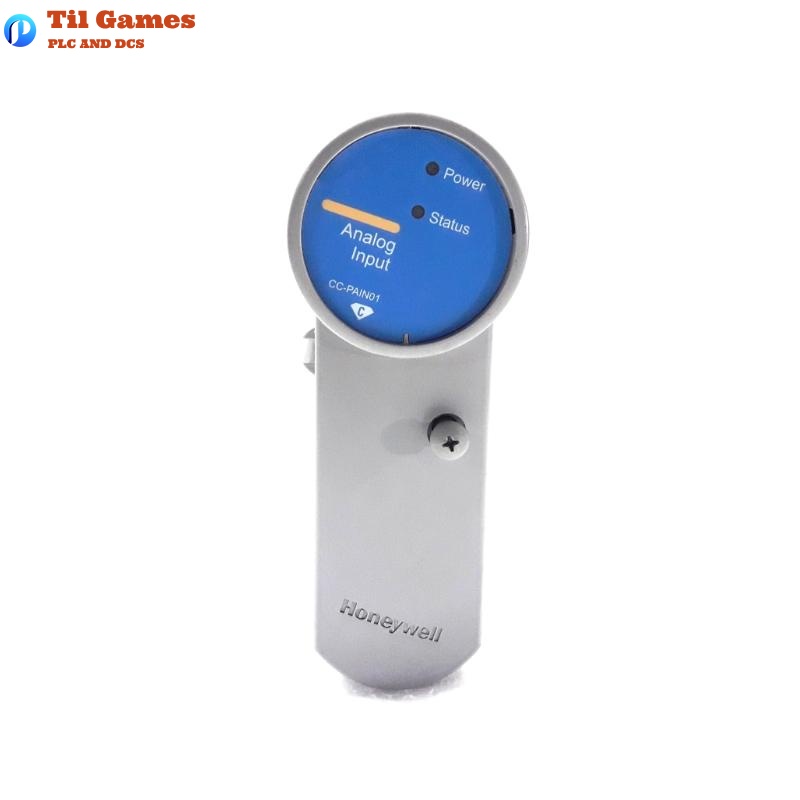

| Model | CC-PAIN01 |
| Input Type | Current input (2-wire or self-powered transmitters) |
| Input Channels | 16 channels (single-ended) |
| Resolution | 16-bit A/D converter |
| Input Range | 4–20 mA (via 200 Ω resistor) |
| CMRR | 70 dB (DC to 60 Hz, 500 Ω source imbalance) |
| Normal Mode Rej. | 20 dB @ 60 Hz |
| Filter Response | Single-pole RC, -3 dB @ 6.0 Hz |
| Max Input Voltage | ±30 V (no damage, differential inputs) |
| Crosstalk | -60 dB (channel-to-channel, DC to 60 Hz) |
| Input Scan Rate | 50 ms |
| Accuracy | ±0.075% FS @ 23.5°C ±2°C ±0.15% FS from 0 to 60°C |
| Power Protection | Individually protected current limiting for Class 1 Div 2 |
| Redundancy Support | Yes, with CC-TAIN11 redundant IOTA |
| Dimensions (mm) | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.299 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many analog input channels does this module support?
A1: The CC-PAIN01 module supports 16 single-ended current input channels.
Q2: What is the input signal range supported?
A2: It supports 4–20 mA standard analog signals through a 200-ohm load resistor.
Q3: Does the module support redundancy?
A3: Yes, redundancy is supported using a CC-TAIN11 redundant IOTA.
Q4: What is the input scan rate of the module?
A4: The input scan rate is 50 milliseconds.
Q5: What types of transmitters are compatible with this module?
A5: It is compatible with both 2-wire and self-powered current transmitters.
Q6: Is an external fuse required?
A6: No. Each channel has built-in current limiting for protection—external fuses are not needed.
Q7: What accuracy can be expected over temperature?
A7: ±0.075% of full scale at 23.5°C ±2°C, and ±0.15% over the range of 0 to 60°C.
Q8: What are the dimensions and weight of the module?
A8: The module measures 63.5 x 124.46 x 307.34 mm and weighs 0.299 kg.
