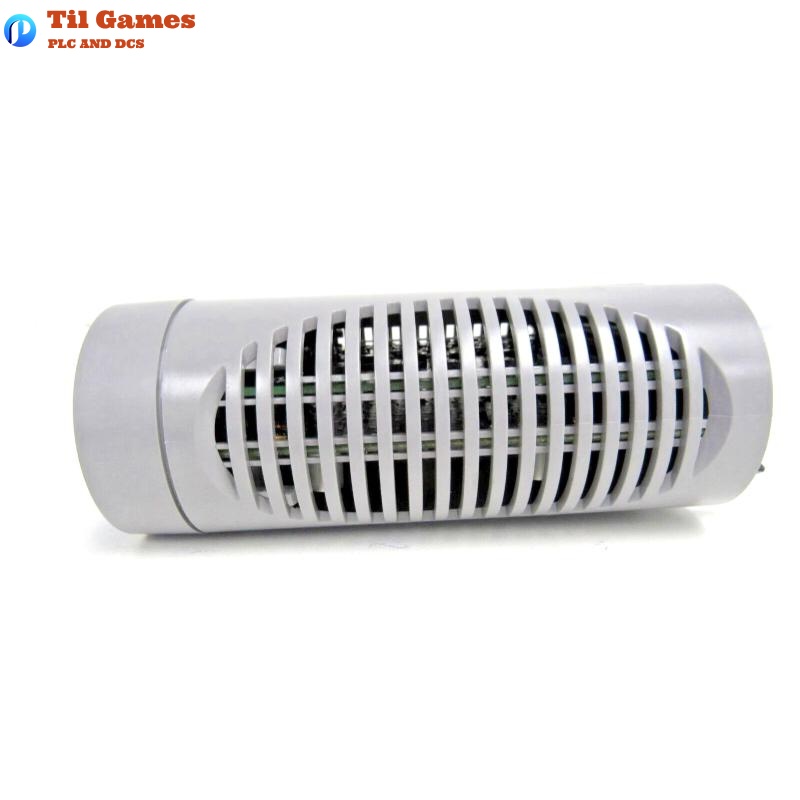

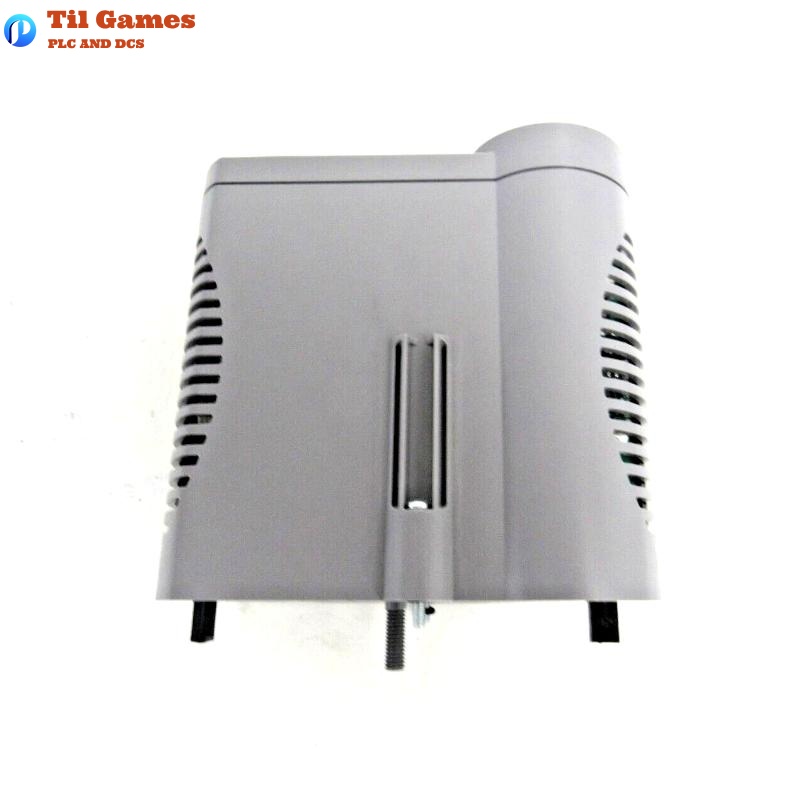

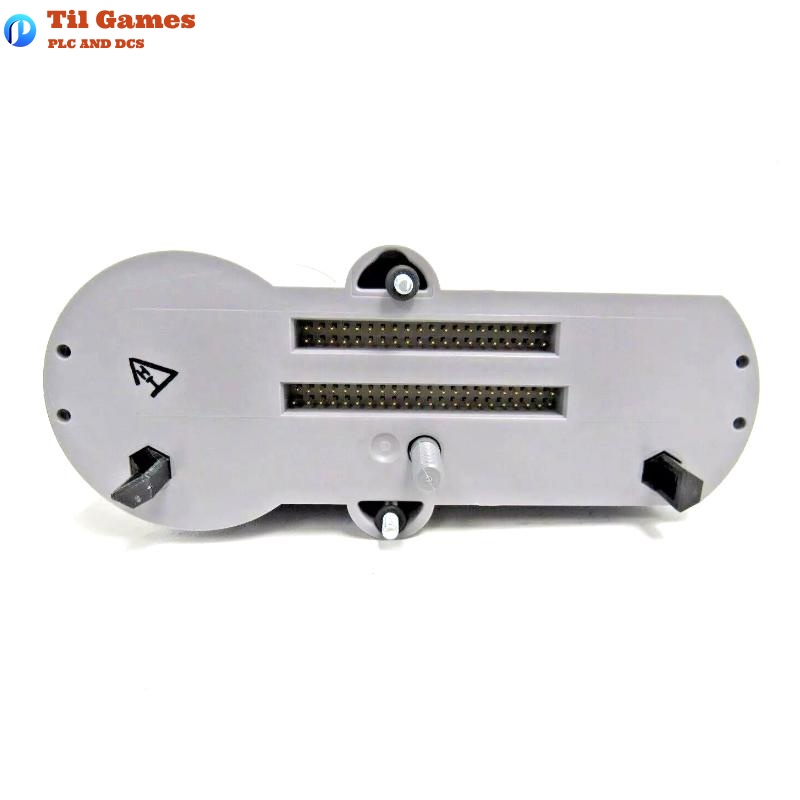

Technical Specifications
| Parameter | Specification |
|---|---|

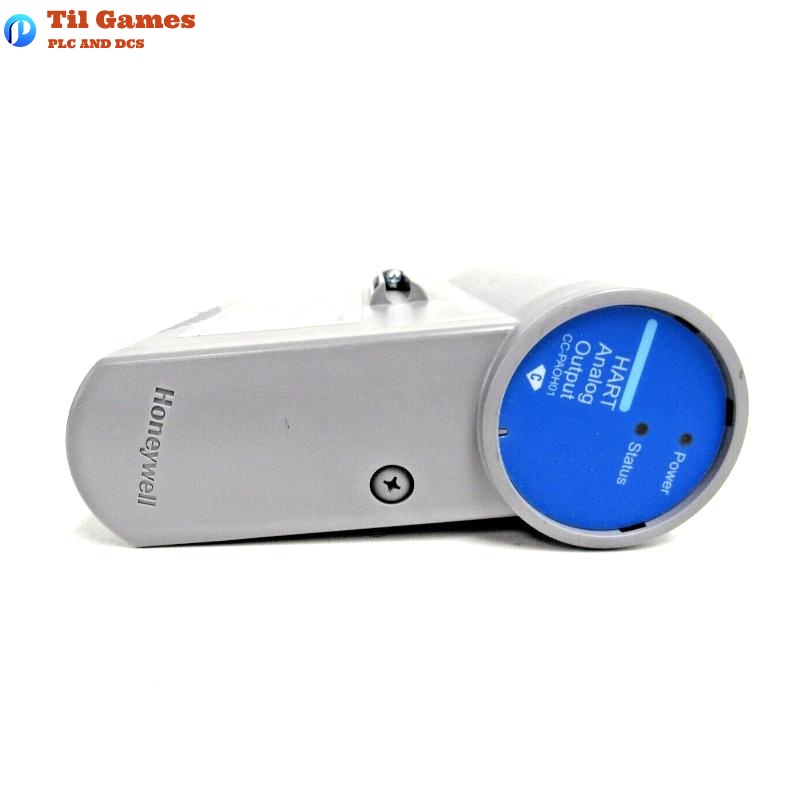

| Model | CC-PAOH01 |
| Output Type | 4-20 mA Current Output |
| Number of Output Channels | 16 Channels |
| Ripple | < 100 mV peak-to-peak across 250 Ω load |
| Output Temperature Drift | 0.005% of Full Scale per °C |
| Output Readback Accuracy | ±4% of Full Scale |
| Output Current Linearity | ±0.05% of Full Scale nominal |
| Resolution | ±0.05% of Full Scale |
| Calibrated Accuracy | ±0.35% of Full Scale at 25°C (including linearity) |
| Settable Output Current Range | 0 mA, 2.9 mA to 21.1 mA |
| Max Resistive Load | 800 ohms (at 24 V supply) |
| Max Output Compliance Voltage | 16 V (at 22–28 VDC power supply) |
| Max Open Circuit Voltage | 22 V |
| Response Time | Settles within 1% of final value in 80 ms |
| Output Cutoff Time (Redundancy) | Max 10 ms |
| HART Support | Yes, for multivariable instrument communication |
| Fail-Safe Behavior (FAILOPT) | Configurable per channel (Hold Last Value or Safe Value) |
| Open Wire Detection | Yes, with channel soft failure indication |
| Dimensions | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.458 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main function of the CC-PAOH01 module?
A1: It provides 16 channels of 4-20 mA analog current output and supports HART protocol, ideal for actuators and recorders.
Q2: Is redundancy supported?
A2: Yes, it supports redundancy with appropriate IOTA modules like CC-TAOX11.
Q3: Does it support HART communication?
A3: Yes, HART protocol is supported for status, configuration, and multivariable data.
Q4: What happens to output if the module fails?
A4: With FAILOPT, each channel can be configured to either hold last value or go to a safe value (e.g., 0 mA).
Q5: Does the module provide open wire detection?
A5: Yes, each channel has open wire detection with soft failure indication.
Q6: What is the maximum load resistance it can drive?
A6: Up to 800 ohms with a 24 V power supply.
Q7: Is the response time fast enough for control applications?
A7: Yes, the module stabilizes output within 80 ms to within ±1% of the target.
Q8: What are the physical dimensions and weight? Is it cabinet-friendly?
A8: The size is 63.5 x 124.46 x 307.34 mm and weight is 0.458 kg, suitable for standard cabinet installation.
