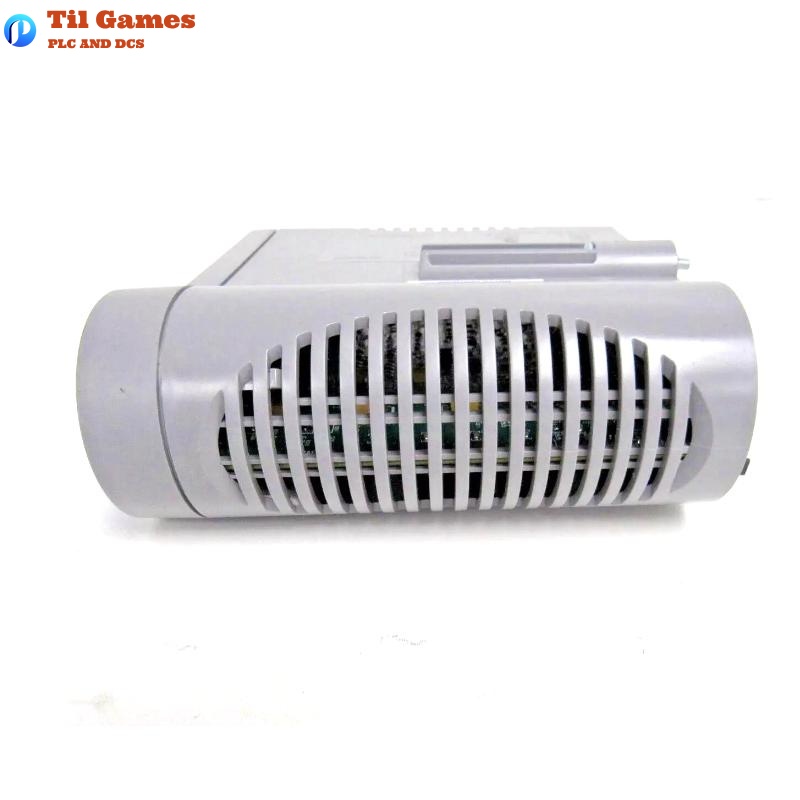

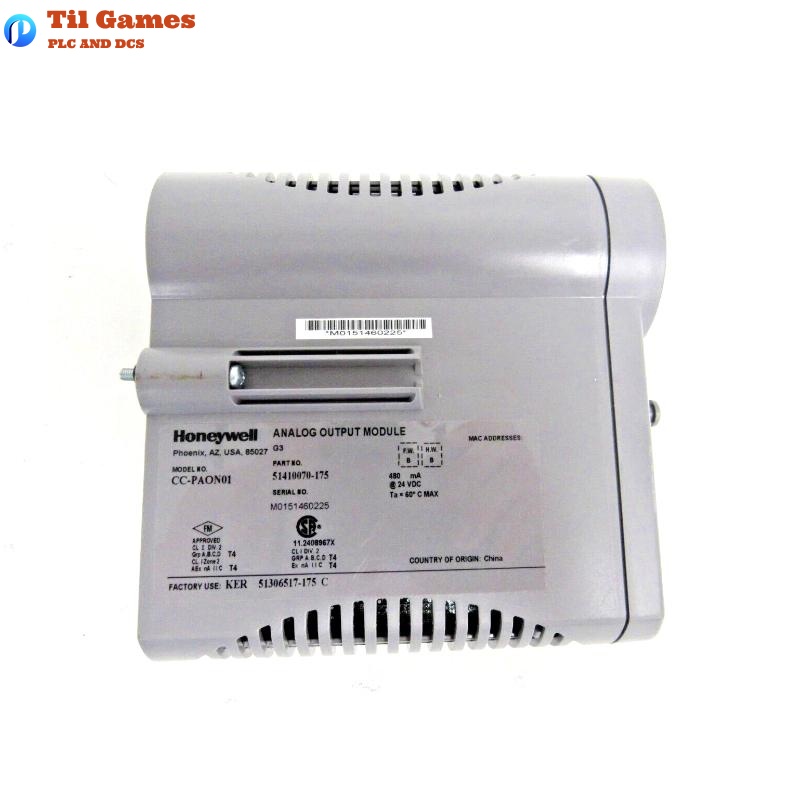

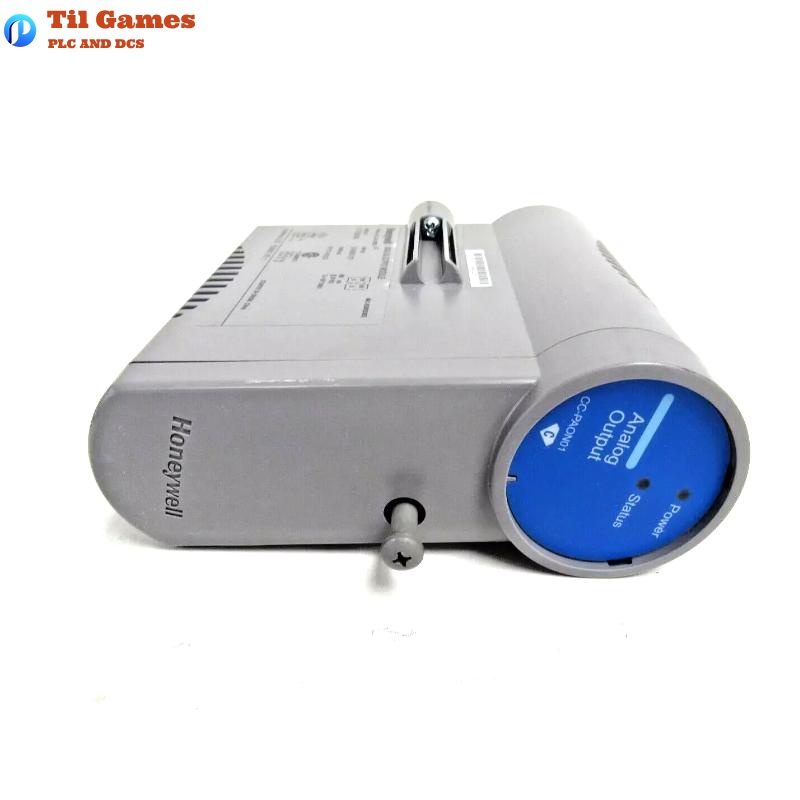

Honeywell CC-PAON01 51410070-175 Technical Specifications
| Category | Specification |
|---|---|
| Model | CC-PAON01 – High-Level Analog Output Module |
| Output Type | 4-20 mA current output |
| Channels | 16 channels |
| Output Ripple | < 100 mV peak-to-peak (across 250 Ω load) |
| Temp Drift | 0.005% of full scale per °C |
| Readback Accuracy | ±4% of full scale |
| Linearity | ±0.05% of full scale |
| Resolution | ±0.05% of full scale |
| Calibrated Accuracy | ±0.35% of full scale at 25°C (including linearity) |
| Settable Output | 0 mA, 2.9 mA to 21.1 mA |
| Max Load Resistance | 800Ω (at 22–28 VDC supply) |
| Max Compliance Voltage | 16V (at 22–28 VDC supply) |
| Max Open Voltage | 22V |
| Response Time | 80 ms to within 1% of final value |
| Output Gap on Switchover | Max 10 ms (redundant mode only) |
| Redundancy Support | Supported via CC-TAON11 IOTA |
| Dimensions (mm) | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.258 kg |
FAQ
Frequently Asked Questions
Q1: What type of output does the CC-PAON01 module support?
A1: It supports 4-20 mA analog current output.
Q2: How many output channels are available on this module?
A2: It provides 16 independent output channels.
Q3: Does this module support redundancy?
A3: Yes, redundancy is supported when paired with CC-TAON11 IOTA.
Q4: What is the response time of the module?
A4: It settles to within 1% of the final value in 80 milliseconds.
Q5: What is the maximum load resistance?
A5: Up to 800 ohms at a 22–28 VDC supply.
Q6: What is the maximum open circuit voltage?
A6: The maximum open voltage is 22V.
Q7: Is output readback available?
A7: Yes, it supports output current readback with ±4% full-scale accuracy.
Q8: What are the physical dimensions of the module?
A8: It measures 63.5 x 124.46 x 307.34 mm and weighs approximately 0.258 kg.
