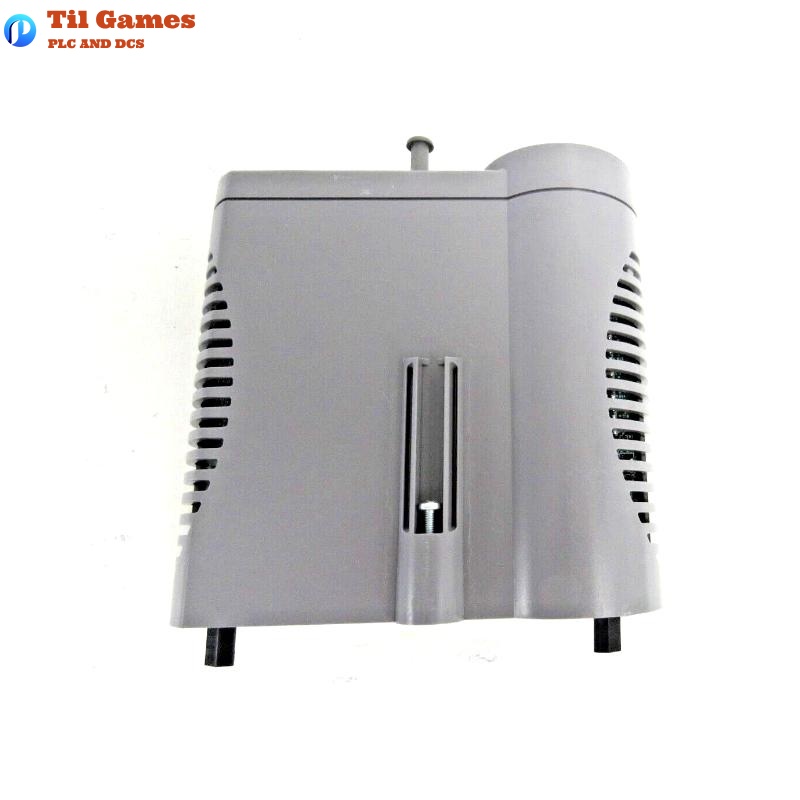

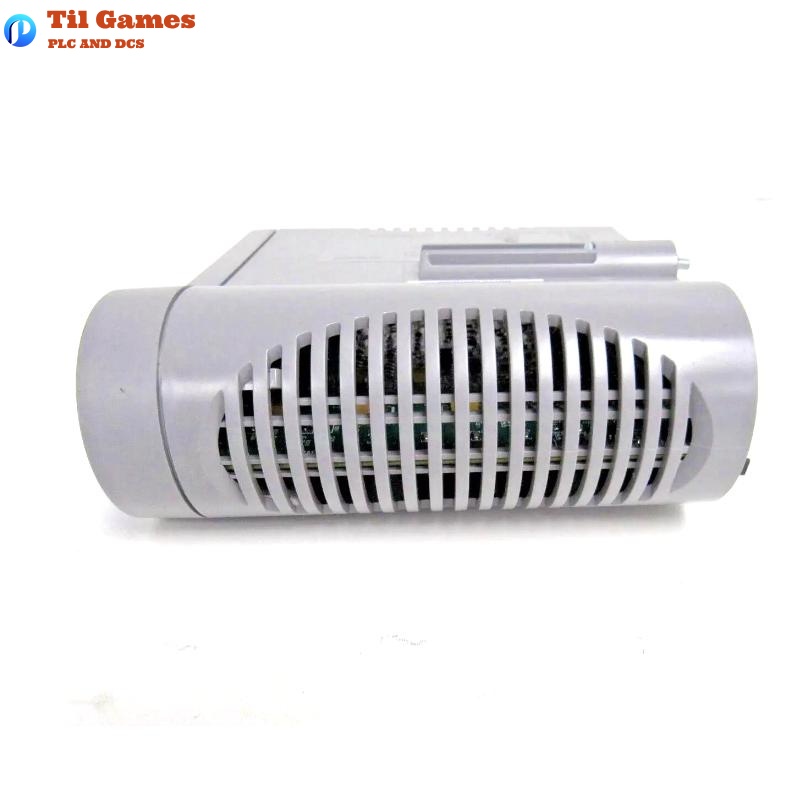

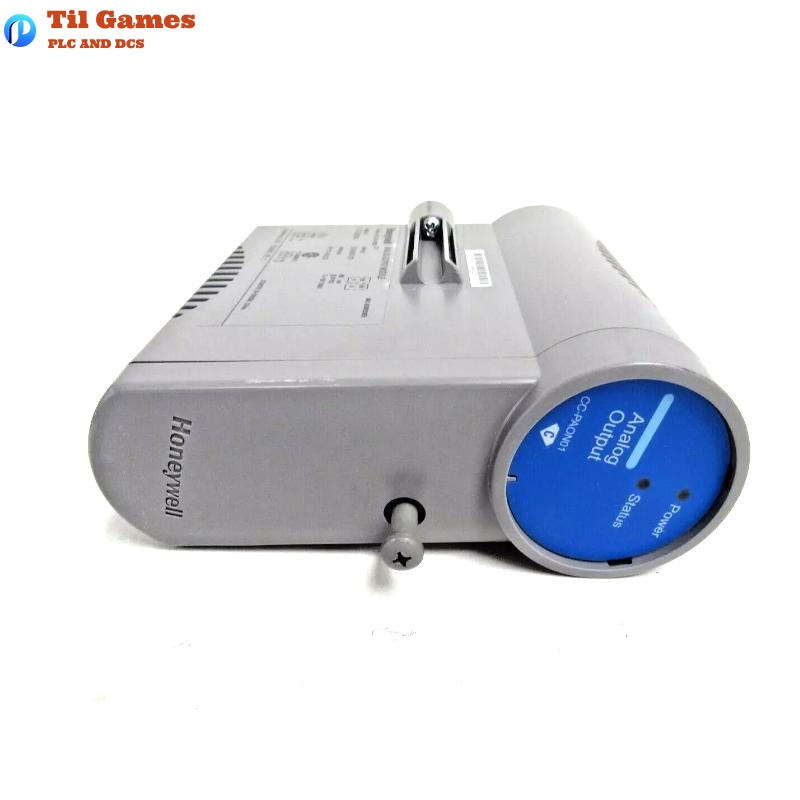

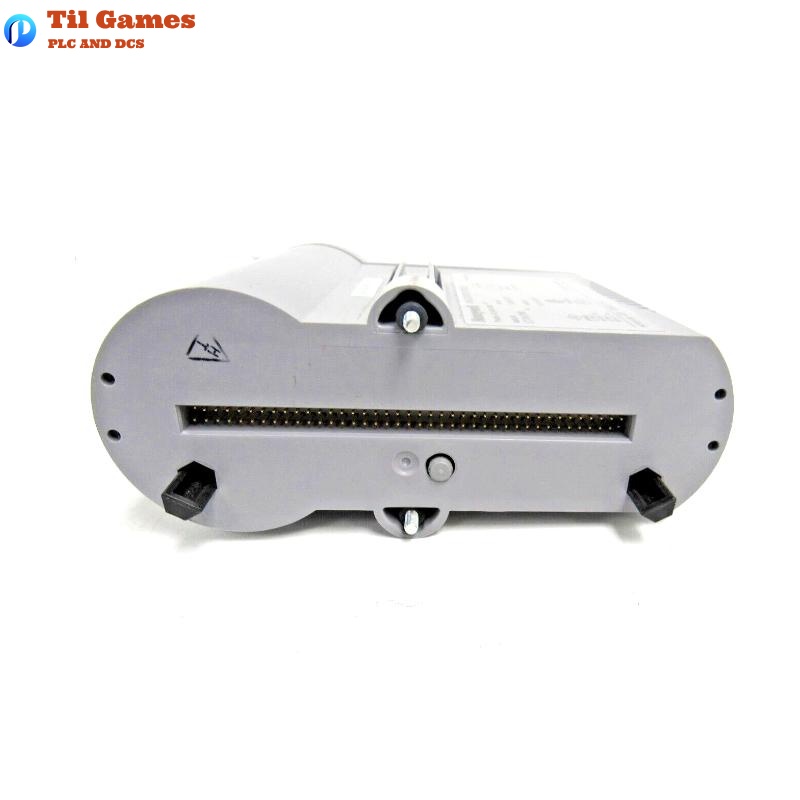

Honeywell CC-PAON01 Technical Specifications
| Parameter Category | Details |
|---|---|
| Model | CC-PAON01 |
| Type | High-Level Analog Output Module (Non-HART) |
| Output Channels | 16 |
| Output Type | 4–20 mA |
| Resolution | ±0.05% of Full Scale |
| Output Current Linearity | ±0.05% of Full Scale (nominal) |
| Calibrated Accuracy | ±0.35% of Full Scale (at 25°C) |
| Output Readback Accuracy | ±4% of Full Scale |
| Configurable Output Current Range | 0 mA, 2.9 mA to 21.1 mA |
| Max Resistive Load | 800 Ω (with 24V supply) |
| Max Output Compliance Voltage | 16 V (with 24V supply) |
| Max Open Circuit Voltage | 22 V |
| Output Ripple | < 100 mV peak-to-peak (at 250 Ω load) |
| Output Temperature Drift | 0.005% of Full Scale/°C |
| Response Time | Settles to 1% of final value within 80 ms |
| Redundancy | Supported via DC-TAOX61 IOTA |
| Open-Wire Detection | Supported with soft failure indication |
| FAILOPT Safety Mode | Channel-configurable for HOLD or SAFE VALUE |
| Dimensions | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.2 kg |
FAQ
Frequently Asked Questions
Q1: What type of output does the CC-PAON01 provide?
A1: It provides 4–20 mA high-level constant current analog output.
Q2: Does the module support per-channel safety mode configuration?
A2: Yes. Each channel can be configured to HOLD LAST VALUE or SHED TO SAFE VALUE.
Q3: Is redundancy supported for this module?
A3: Yes, redundancy is supported using a redundant IOTA and a second IOM.
Q4: How does the module handle open wire detection?
A4: It includes open-wire detection and triggers a channel soft failure alert if an open circuit is detected.
Q5: What is the maximum load resistance supported?
A5: It supports up to 800 ohms with a 24V power supply.
Q6: What is the module’s response time?
A6: The output settles to within 1% of the final value in 80 milliseconds.
Q7: Can output current be monitored and alarmed?
A7: Yes, the module provides output current readback and alarms for discrepancies.
Q8: What kind of environments is this module designed for?
A8: It is suitable for industrial control applications with non-incendive (Class 1, Div 2) requirements.
