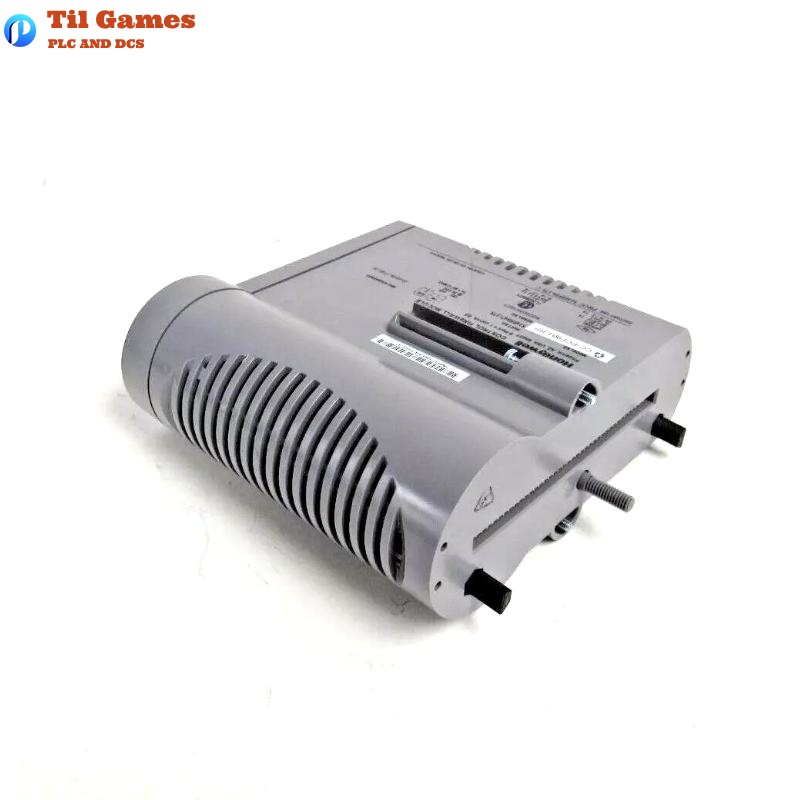

Technical Specifications

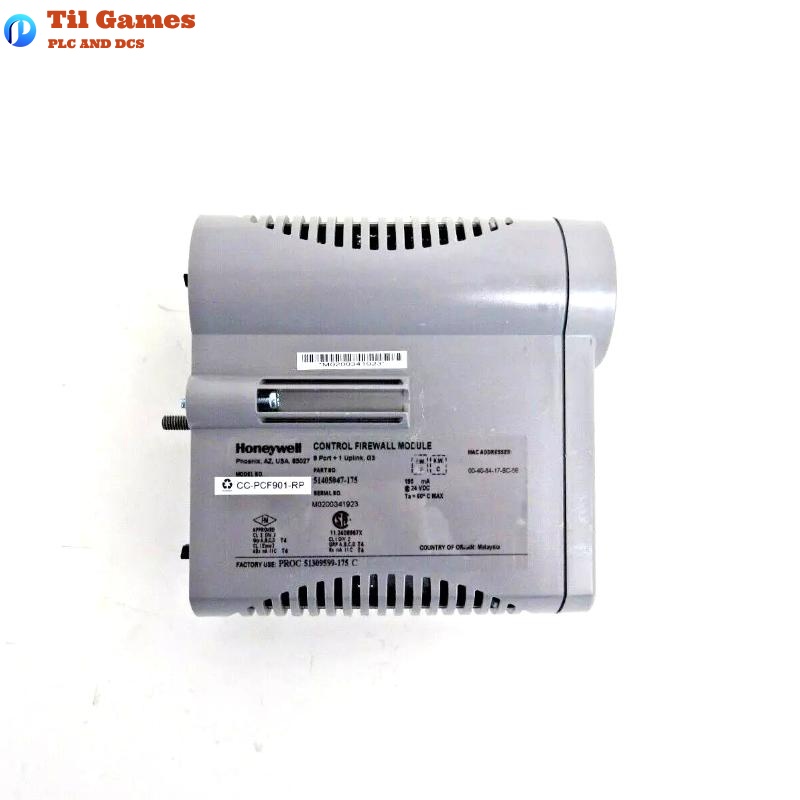

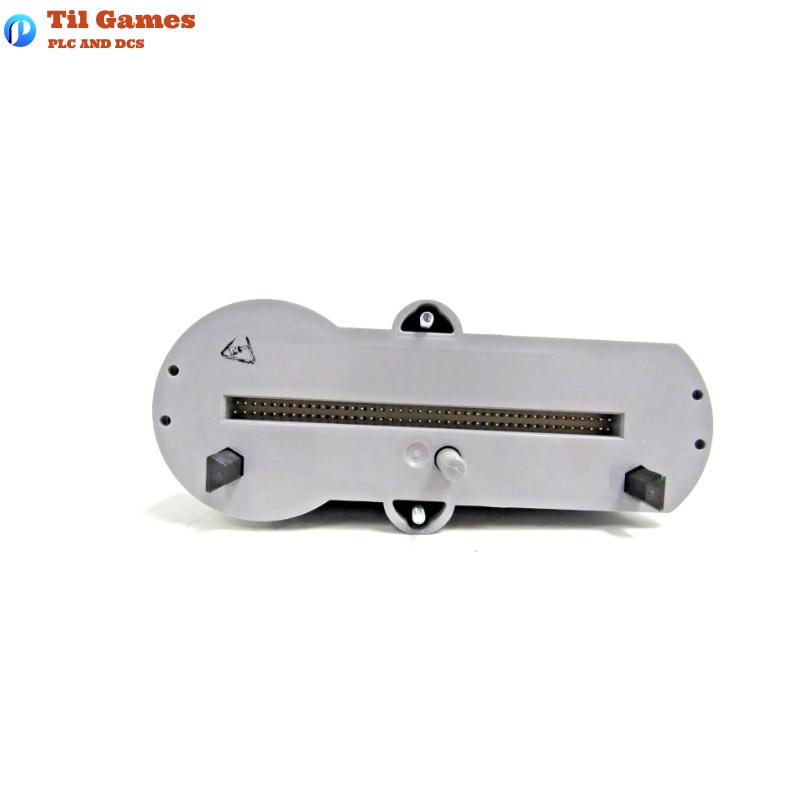

| Parameter | Description |
|---|---|
| Product Model | CC-PCF901 |
| Type | Control Firewall Module |
| Function | Provides Fault Tolerant Ethernet (FTE) communication for Series C systems |
| Number of Ports | 9 Ethernet ports (8 downlink to controllers/modules, 1 uplink to FTE network) |
| Traffic Prioritization | Downlink traffic has priority over uplink traffic when saturated |
| Security Feature | Blocks non-control Ethernet traffic, only allows valid C300 messages |
| Mounting | Installed into CF9 IOTA (Input/Output Termination Assembly) |
| Firmware Upgrade | Upgradable via Configuration Studio or dedicated update tool |

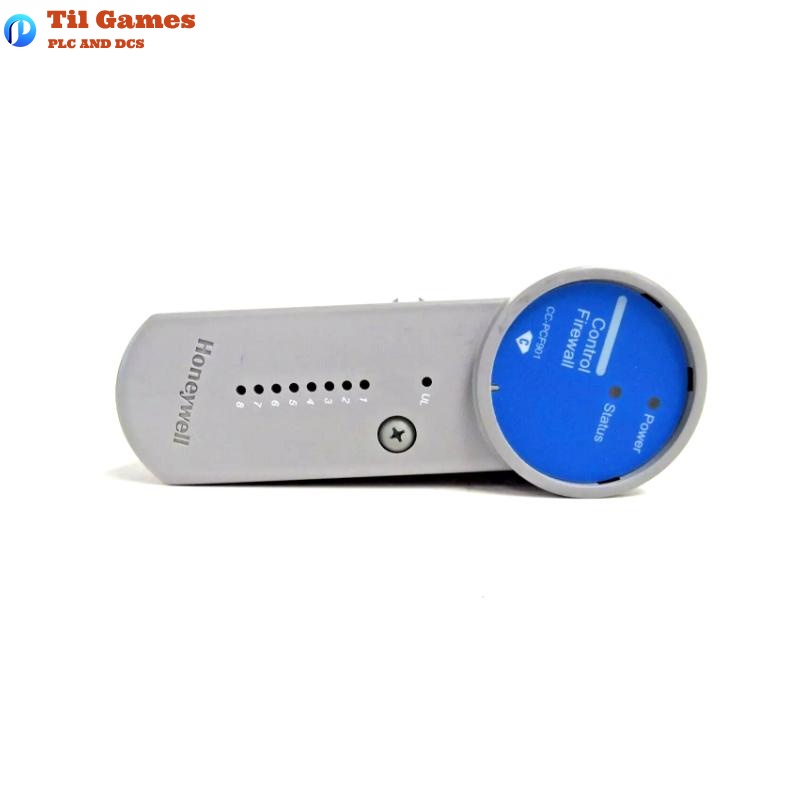

| LED Indicators | Power, Status, and Port Communication LEDs |
| Operating Temperature | -40°C to +85°C |
| Power Supply | Powered through IOTA (24V DC) |
| Dimensions | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.25 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main function of the CC-PCF901 module?
A1: The CC-PCF901 serves as a control firewall module providing fault-tolerant Ethernet communication and filtering for valid control messages only.
Q2: Which devices can be connected to this module?
A2: It connects to C300 controllers, Series C FIMs, and FTE bridge modules within the Series C cabinet.
Q3: What precautions should be taken during installation?
A3: Use only a #2 Phillips screwdriver; do not use power drivers or #1 screwdrivers to avoid damaging the plastic screw.
Q4: How does the module handle network congestion?
A4: It prioritizes downlink traffic over uplink to maintain real-time control communication during saturation.
Q5: Can firmware upgrades be performed online?
A5: Firmware upgrades should be done using the Control Firewall Update tool, upgrading one module at a time to avoid LOV (Loss of View).
Q6: Does the module support fiber optic connectivity?
A6: Yes, optional CC-FSMX01 (single-mode) and CC-FMMX01 (multi-mode) fiber modules are supported.
Q7: Is redundancy supported?
A7: Yes, typically two CF9 modules are installed to provide redundant FTE A/B paths.
Q8: How often should maintenance checks be performed?
A8: Every 3–6 months, check LEDs, cable insulation, secure connections, and ensure the IOTA is firmly mounted.
