Technical Specifications
| Parameter | Description |
|---|---|
| Model | CC-PCNT01 |

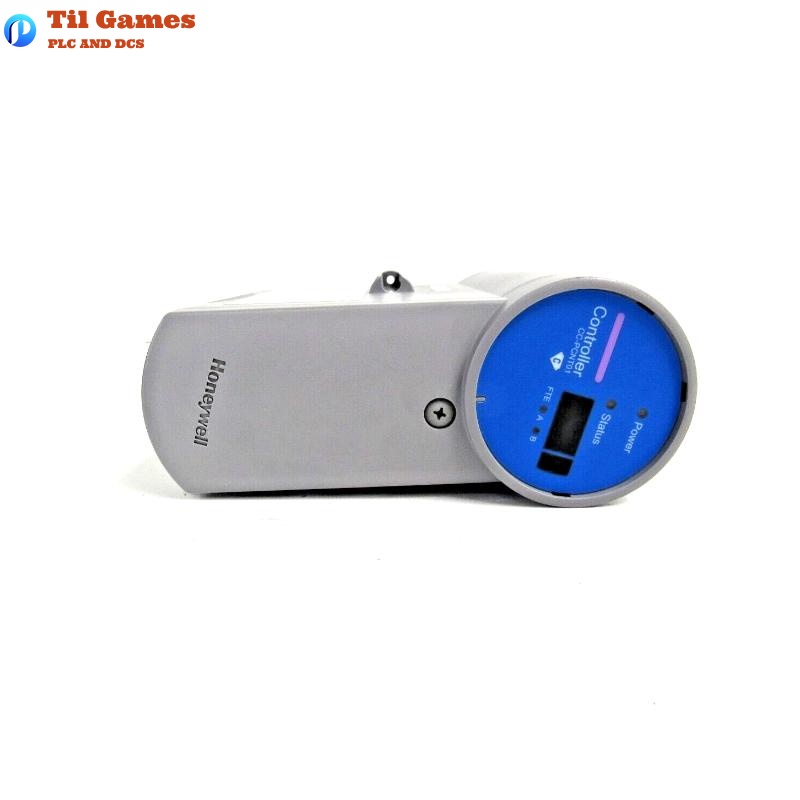

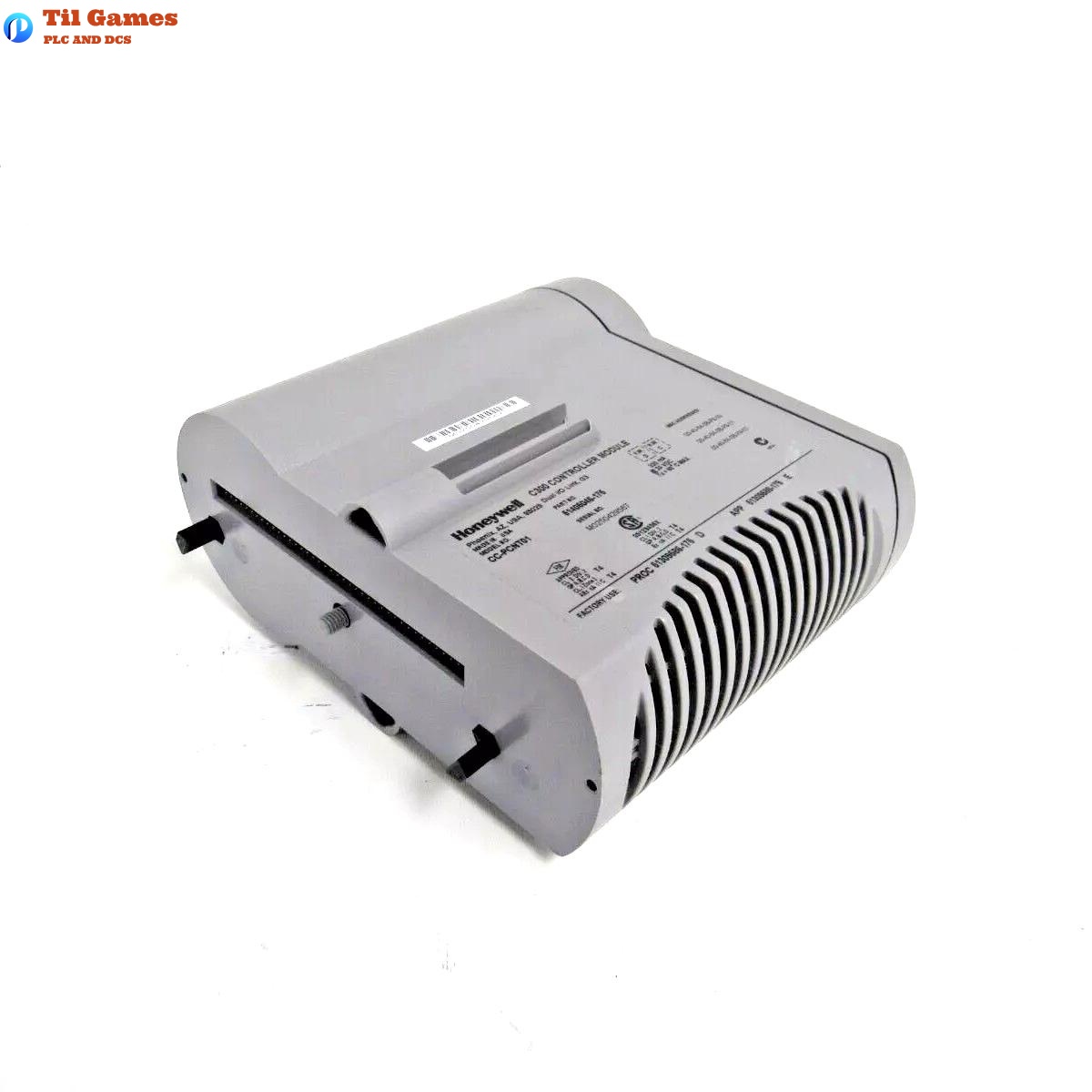

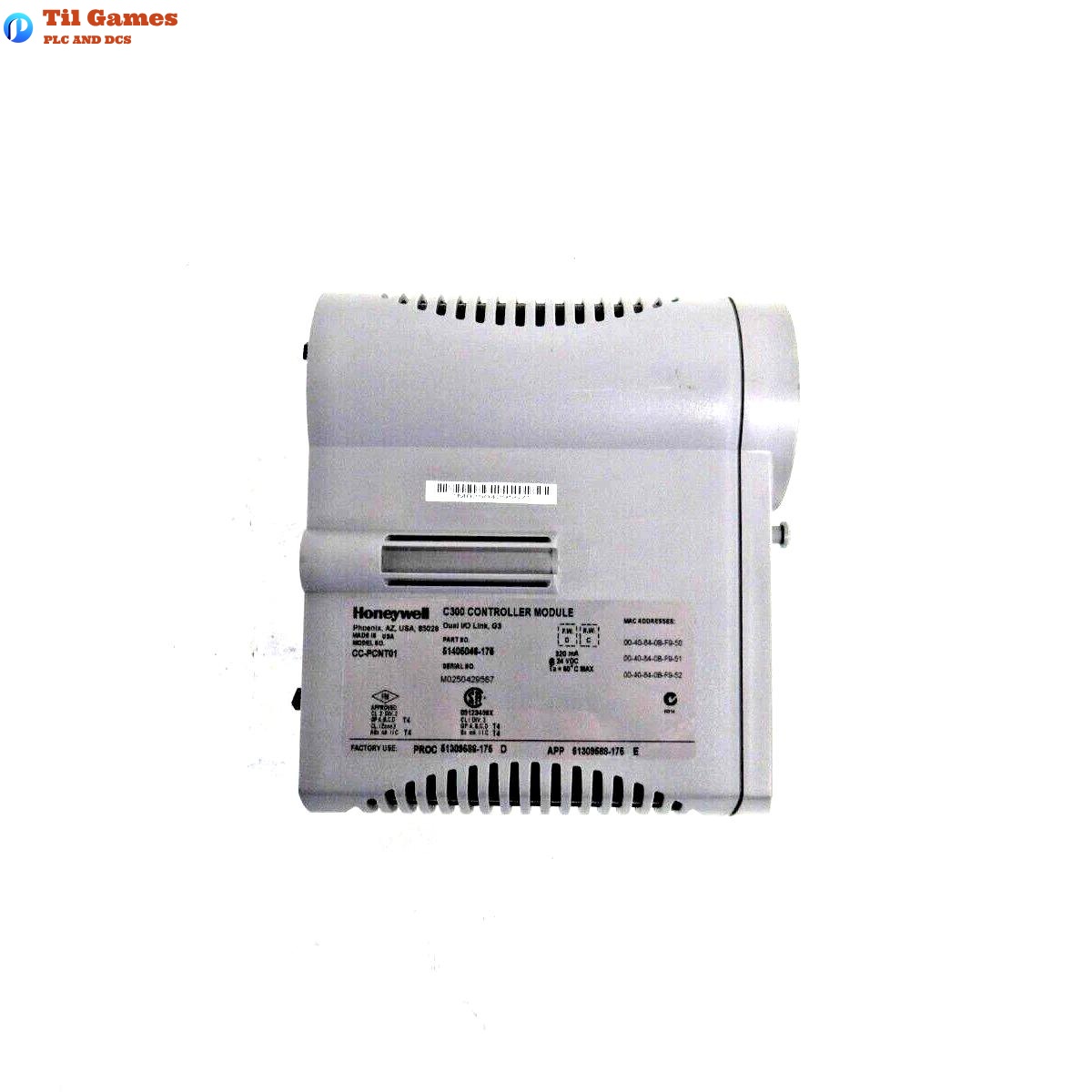

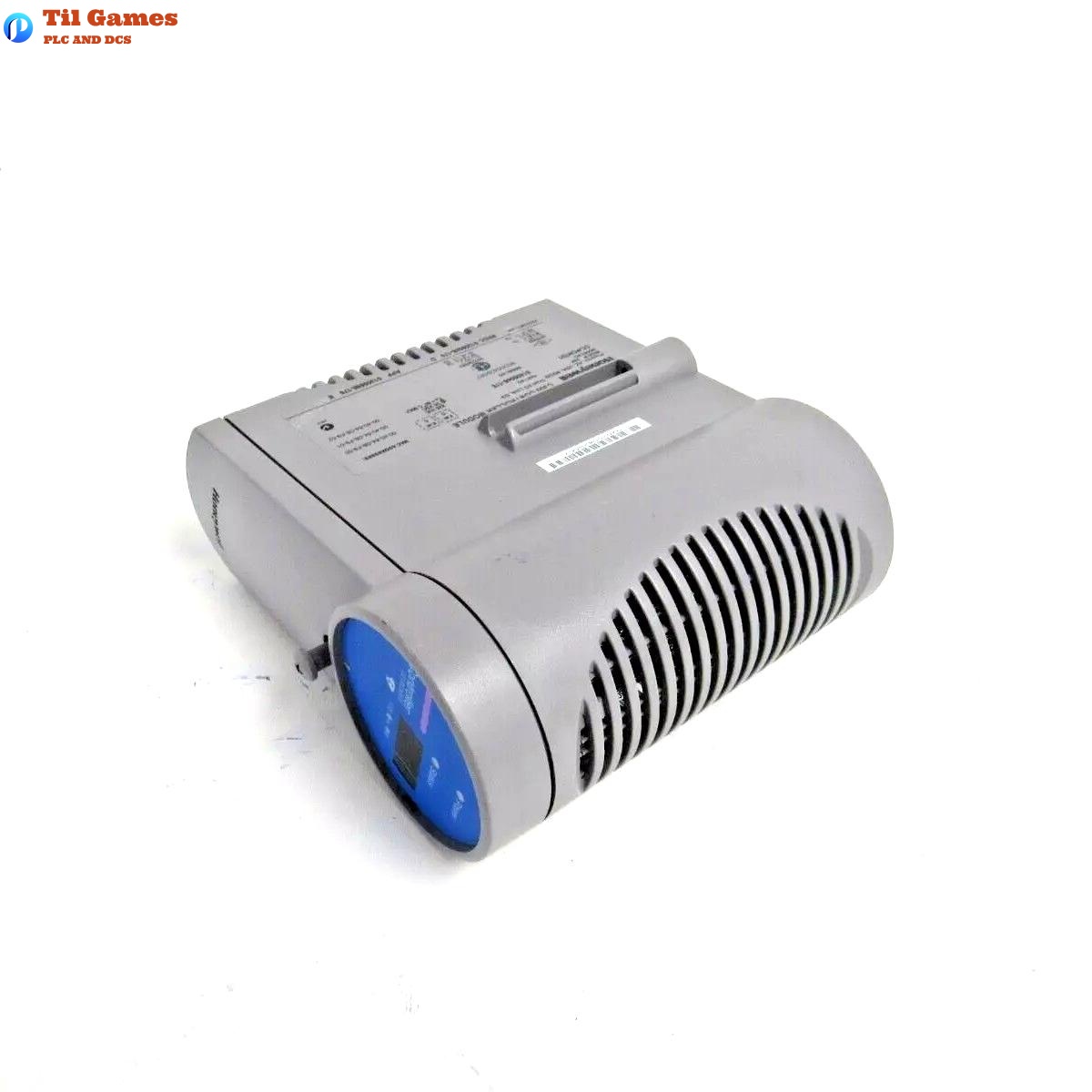

| Product Name | C300 Controller Module |
| Control Execution Cycle | Supports 50 ms and 20 ms (20 ms requires license) |
| I/O Link Support | 2 links supported (PMIO or Series C IO) |
| Max I/O Units | Up to 80 (if only using PMIO or Series C IOMs) |
| Max I/O Modules | 64 I/O units (up to 80 with specific conditions) |
| Supported Protocols | FTE (Fault Tolerant Ethernet), SNTP/PTPv2 time synchronization |
| Redundancy | Supported via Ethernet STP cable |
| Control Switchover Time | Up to 500 ms (50 ms CEE), 200 ms (20 ms CEE) |
| User Control Resources | 5500 XUs (50ms), 5000 XUs (20ms) |
| Max Configurable Blocks | 4095 tagged blocks |
| User Memory | 14,852 MU (1 MU = 1 KB) |
| Max Module Memory Usage | Up to 151.5 MU for SCM modules |
| Communication Rate | Up to 2500 PPS (50ms), 700 PPS (20ms) |
| Max Peer Connections | 303 (50ms CEE), 53 (20ms CEE) |
| Dimensions (W x H x D) | 63.5 mm x 124.46 mm x 307.34 mm |
| Weight | 0.48 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What I/O types are supported by CC-PCNT01?
A1: It supports PMIO and Series C IO links, with up to 2 links per controller.
Q2: Does the CC-PCNT01 support redundancy?
A2: Yes, it supports redundant configurations using Ethernet STP cabling.
Q3: What is the maximum switchover interruption time?
A3: 500 ms in 50ms cycle, 200 ms in 20ms cycle.
Q4: How many functional blocks can be configured?
A4: Up to 4095 tagged blocks can be configured, depending on block type.
Q5: What is the difference between CC-PCNT01 and CC-PCNT02?
A5: CC-PCNT02 is the successor with enhanced features such as EIM and Profit Controller support.
Q6: Which communication protocols are supported?
A6: Supports Fault Tolerant Ethernet (FTE), SNTP and PTPv2 for time sync.
Q7: How many peer connections are supported?
A7: Supports up to 303 peers in 50ms mode and 53 peers in 20ms mode.
Q8: What are the installation dimensions and weight?
A8: The module measures 63.5 x 124.46 x 307.34 mm and weighs 0.48 kg, which should be factored into panel design.
