Technical Specifications
| Parameter | Description |
|---|---|

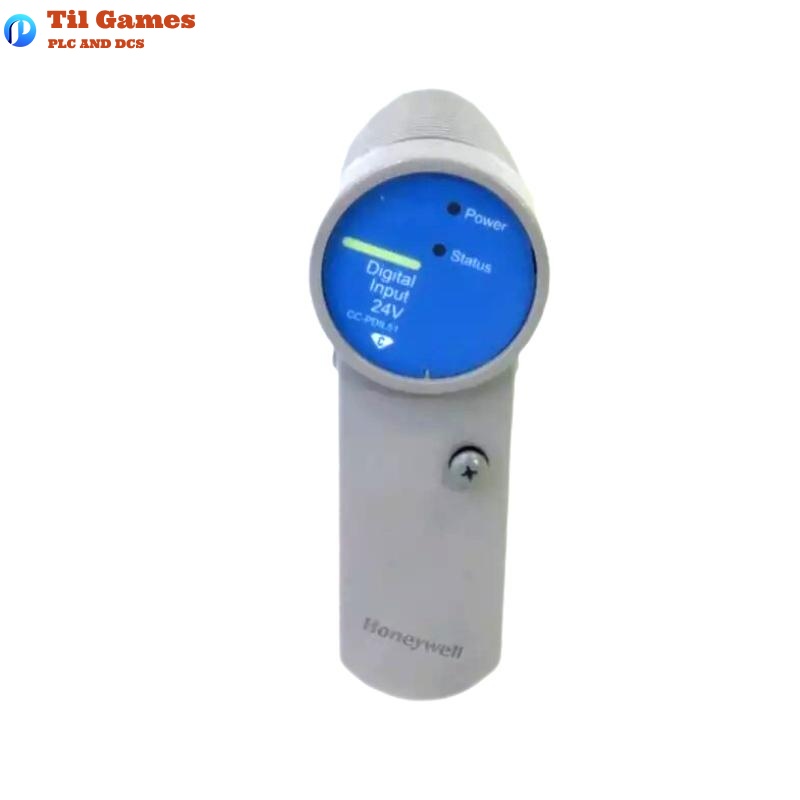

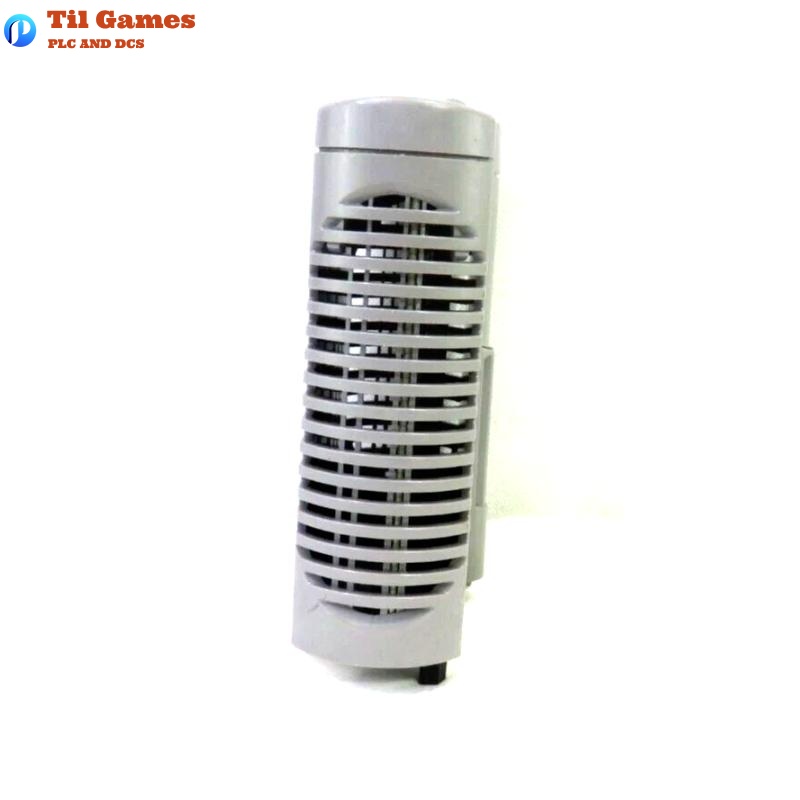

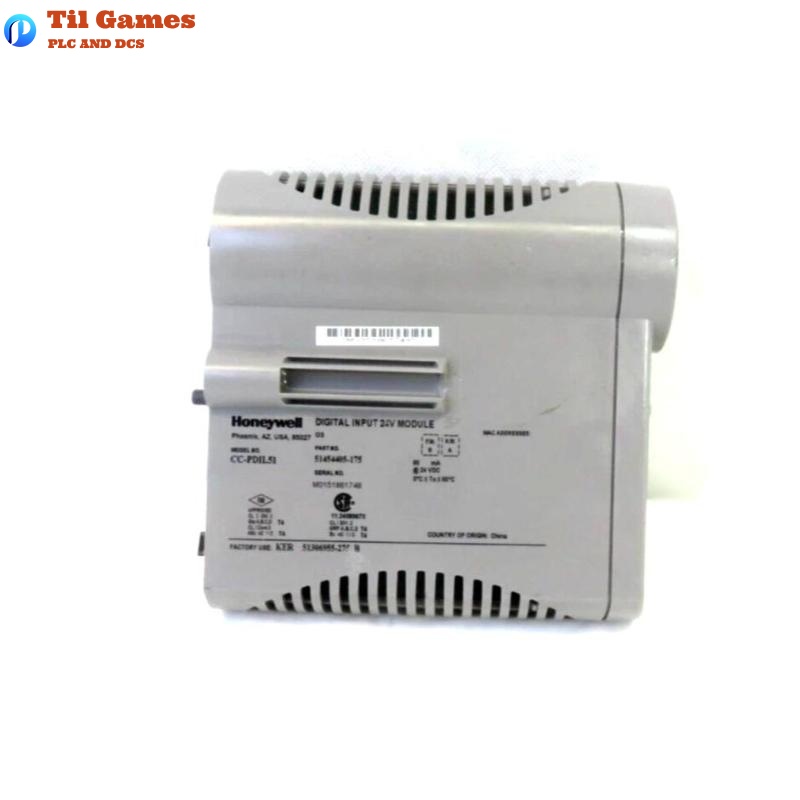

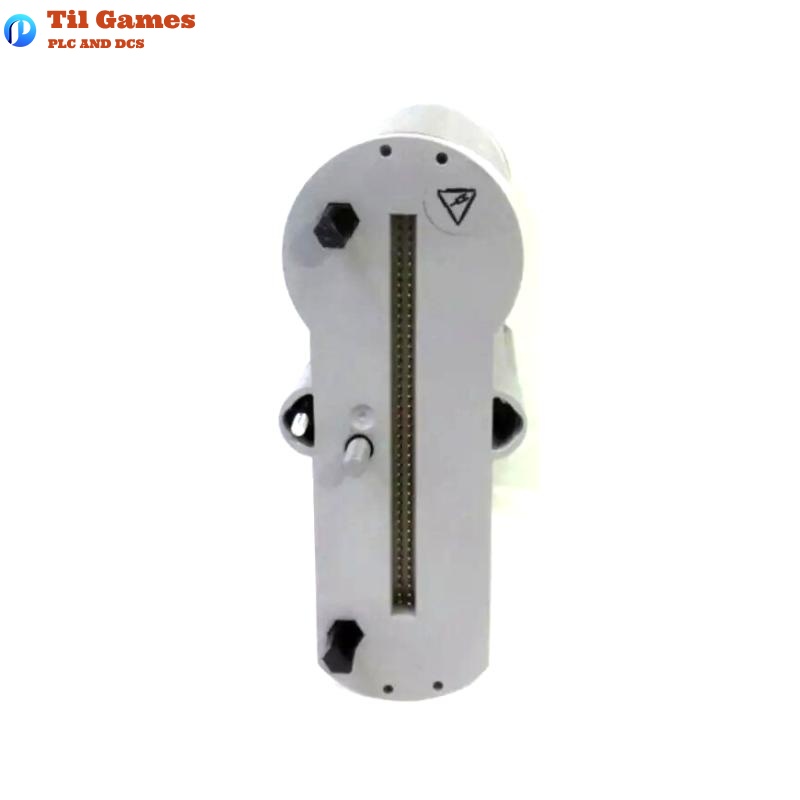

| Model | CC-PDIL51 |
| Input Channels | 32 channels |
| IOTA Models | CC-TDIL51 (Non-Redundant), CC-TDIL61 (Redundant) |
| Isolation Method | Optical Isolation |
| Isolation Voltage | 1000 VAC RMS (channel to common) |
| DI Power Voltage Range | 18 to 30 VDC |
| ON Sense Voltage/Current | ≥13 VDC or ≥3 mA |
| OFF Sense Voltage/Current | ≤5 VDC or ≤1.2 mA |
| Input Impedance | 4.2 kΩ |
| Delay Across Filter and Isolation | 5 ms ±20% |
| ON State Field Resistance | Max 300 Ω @ 15 VDC |
| OFF State Field Resistance | Min 30 kΩ @ 30 VDC |
| Dimensions (W x H x D) | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.231 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many input channels does the CC-PDIL51 support?
A1: It supports 32 channels of 24VDC digital input.
Q2: Does this module support open wire detection?
A2: No, open wire detection is not supported in this model.
Q3: Is redundancy supported?
A3: Yes, it supports redundancy using the CC-TDIL61 IOTA.
Q4: What is the isolation voltage rating?
A4: It is rated at 1000 VAC RMS between input channels and logic common.
Q5: What is the operating voltage range?
A5: The DI operating voltage range is 18 to 30 VDC.
Q6: How is the module mounted?
A6: It is vertically mounted directly into the IOTA; no separate chassis required.
Q7: What is the channel response delay?
A7: Each input has a delay of 5 ms ±20% across the filter and isolation.
Q8: What are typical applications of this module?
A8: Commonly used for discrete signal acquisition such as sensor status or push-button monitoring in process control systems.
