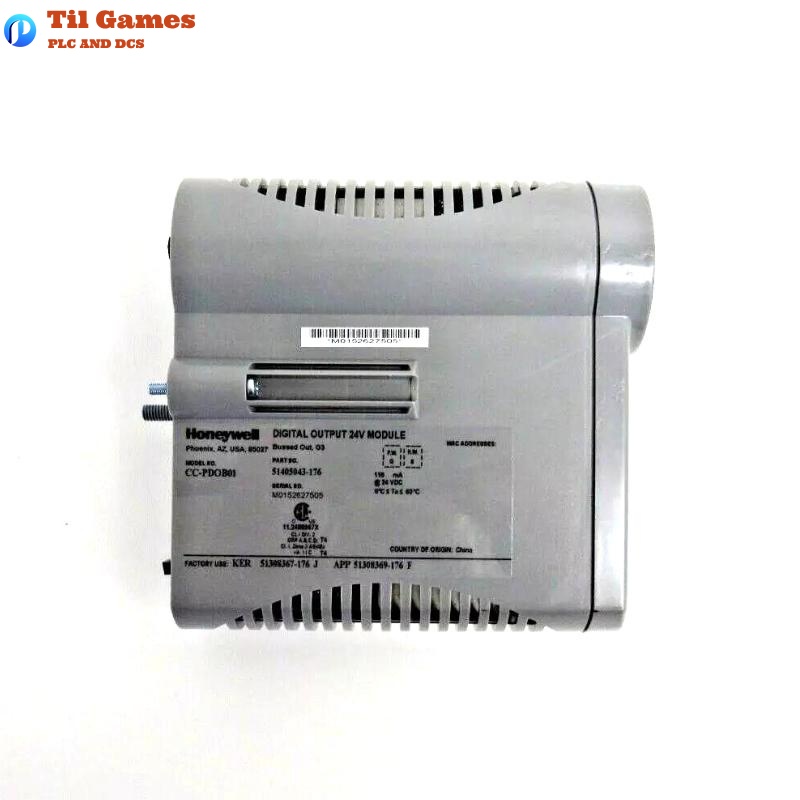

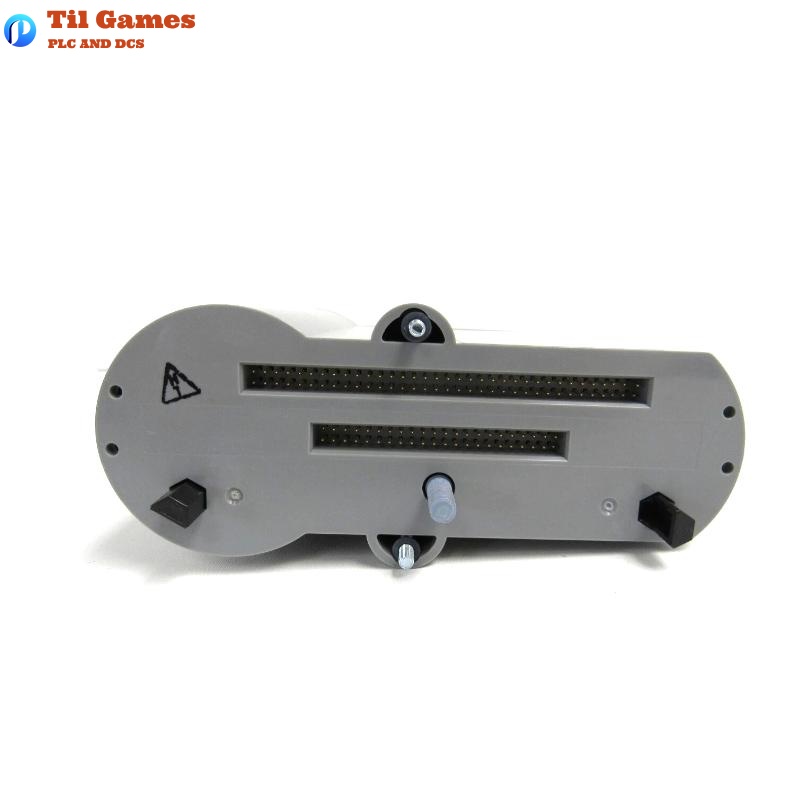

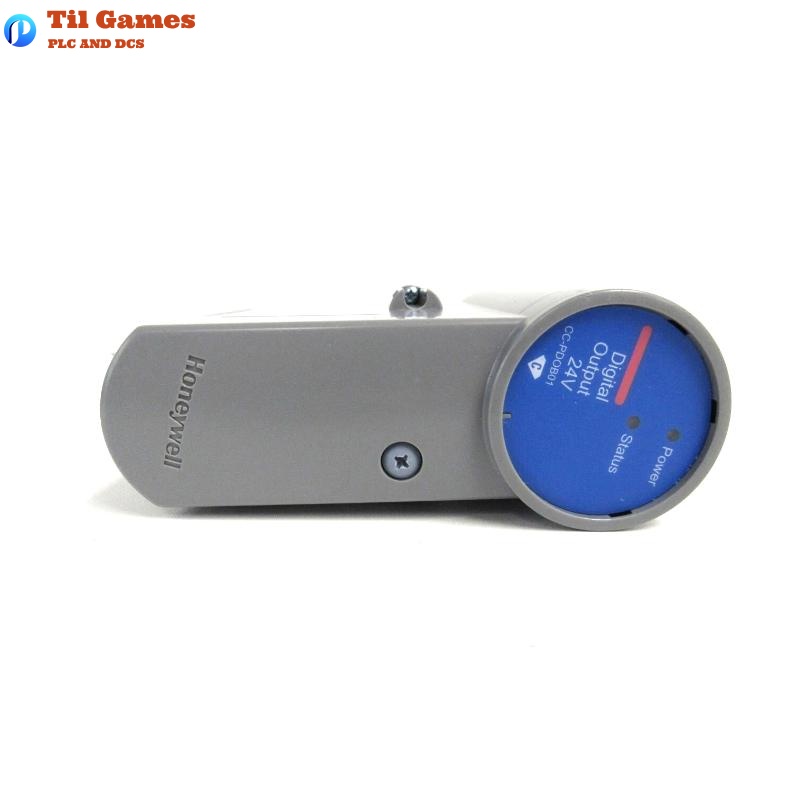

Honeywell CC-PDOB01 51405043-176 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CC-PDOB01 |
| Output Channels | 32 channels |
| Output Type | Source-type digital output |
| Voltage Range | 15–30 VDC |
| Max Current / Channel | 0.5 A |
| Max per 8 Channels | No Short: 4 A 1 Short: 3 A 2 Shorts: 1.5 A |
| Max Current / Module | 6 A |
| Typical Output Voltage | 24 V (@ 0.5 A load) |
| Off-State Voltage | 0 VDC (3.3 VDC max under no load) |
| Off-State Leakage | 5.0 µA max |
| Turn-On/Off Time | Max 10 ms |
| Redundancy Gap | None (0 ms current gap during switchover) |
| FAILOPT Support | Configurable: Hold Last Value or Shed to Safe Value |
| Short Circuit Protection | Electronic, fuse-less |
| Isolation Voltage | 1500 VAC RMS or ±1500 VDC |
| Dimensions (mm) | 63.5 (D) x 124.46 (W) x 307.34 (L) |
| Weight | 0.231 kg |
FAQ
Frequently Asked Questions
Q1: How many digital outputs does the CC-PDOB01 provide?
A1: It provides 32 channels of 24VDC digital output.
Q2: What is the maximum load per output channel?
A2: 0.5 A per channel, 4 A per group of 8 channels (under normal), up to 6 A per module.
Q3: Does the module offer short-circuit protection?
A3: Yes, it features fuse-less electronic short-circuit protection per channel.
Q4: Is redundancy supported by the CC-PDOB01?
A4: Yes, redundancy is supported when configured with redundant IOTAs.
Q5: Can the output voltage be adjusted?
A5: No, output voltage is not adjustable; it follows the 24VDC supply provided.
Q6: Is there a current gap during switchover in redundant setup?
A6: No, the module ensures seamless current continuity (0 ms gap).
Q7: What types of loads are supported?
A7: Suitable for controlling 24VDC solenoids, relays, and similar actuators.
Q8: What are the physical dimensions and weight of the module?
A8: 63.5 x 124.46 x 307.34 mm; weight is 0.231 kg.
