Technical Specifications
| Category | Specification Description |
|---|---|

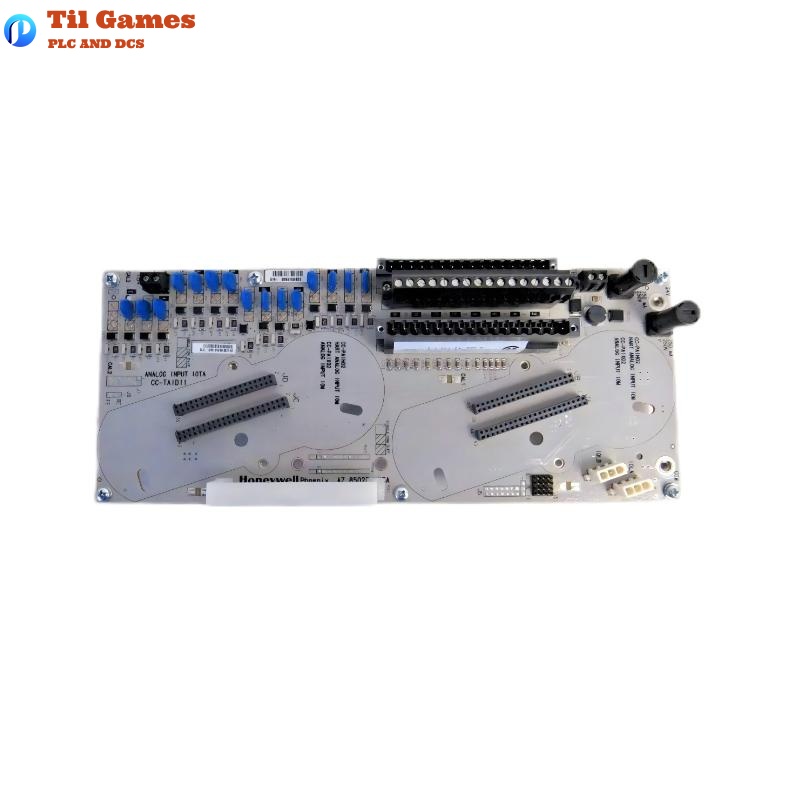

| Module Model | CC-TAID11 |
| Module Type | Differential Analog Input IOTA |
| Channel Count | 16 Channels (12 Single-Ended / 4 Differential) |
| Signal Types Supported | Voltage and Current (2-wire or self-powered transmitters) |
| Input Ranges | 0–5 V, 1–5 V, 0.4–2 V, 4–20 mA (via 250Ω resistor) |
| A/D Resolution | 16 bits |
| Common Mode Rejection | 70 dB (DC to 60 Hz with 500Ω source imbalance) |
| Common Mode Voltage | -6 to +5 V peak |
| Normal Mode Rejection | 19 dB at 60 Hz |
| Filter Response | Single-pole RC, -3 dB @ 6.5 Hz |
| Max Differential Input | ±30 V (no damage) |
| Input Impedance | >10 MΩ (voltage inputs) |
| Scan Rate | 50 milliseconds |
| Hardware Accuracy | ±0.075% FSR (23.5°C±2°C), ±0.15% FSR (0–60°C) |
| Crosstalk | -60 dB (channel-to-channel, DC to 60 Hz) |
| Power Protection | Individually current-limited, no fuse needed |
| Configuration | Redundant IOTA Supported |
| Dimensions (mm) | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of input signals does the CC-TAID11 support?
A1: It supports voltage and current inputs, compatible with 2-wire and self-powered transmitters.
Q2: Is redundancy supported for this module?
A2: Yes, CC-TAID11 supports redundancy by allowing a second IOM to be mounted on the same IOTA.
Q3: Are the input channels differential?
A3: Yes, it supports 16 channels, of which 4 are differential and 12 are single-ended.
Q4: Are the input channels protected?
A4: Yes, each channel has built-in current limiting circuits; no external fuses are needed.
Q5: What is the input scan rate of the module?
A5: The scan rate is 50 milliseconds, suitable for standard process control applications.
Q6: What is the maximum input voltage tolerated?
A6: The module can tolerate up to ±30 V on differential inputs without damage.
Q7: What are the physical dimensions of the module?
A7: The module measures 63.5 x 124.46 x 307.34 mm, fitting the 12-inch redundant IOTA format.
Q8: Does the module support HART communication?
A8: HART support depends on the IOM used (e.g., CC-PAIH02 enables HART capability).
