Technical Specifications
| Parameter | Specification |
|---|---|

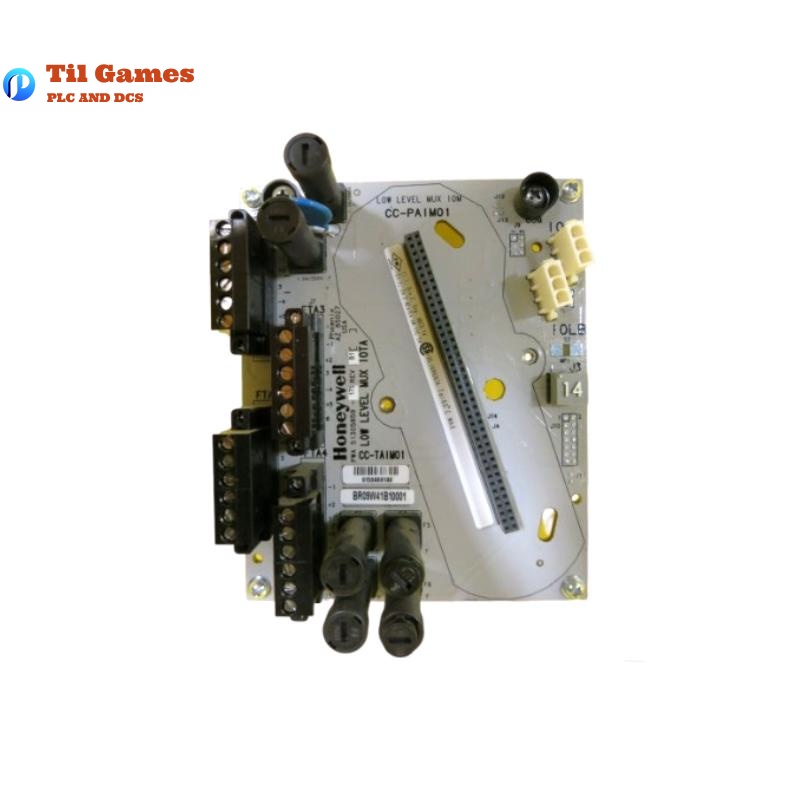

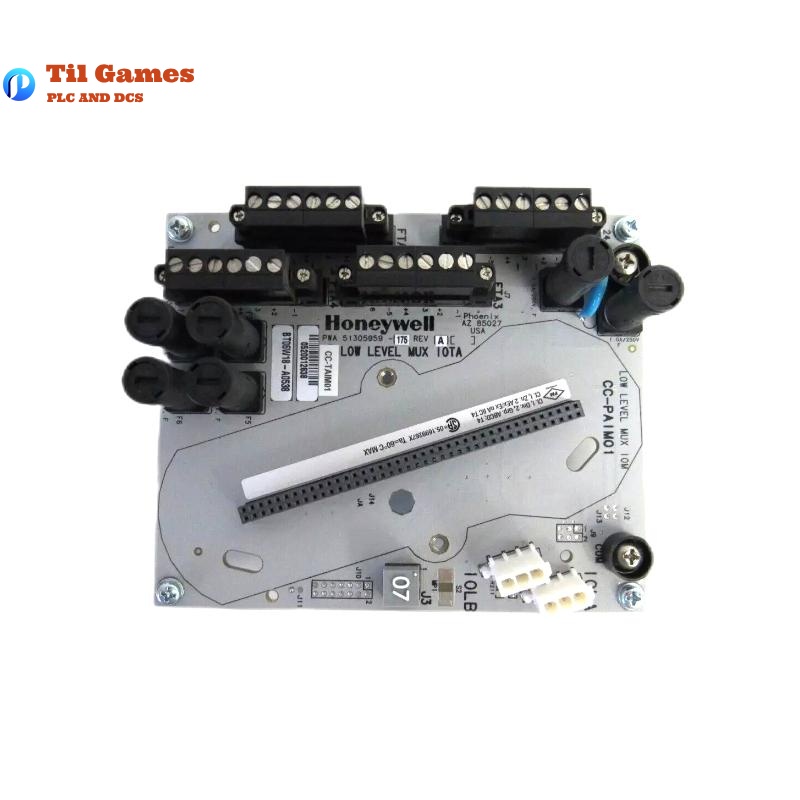

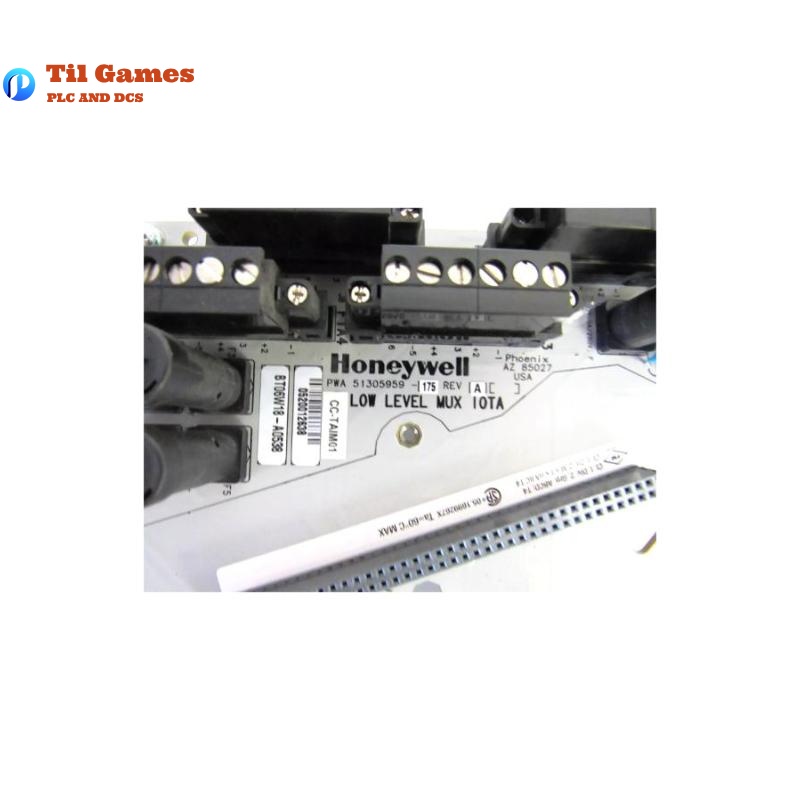

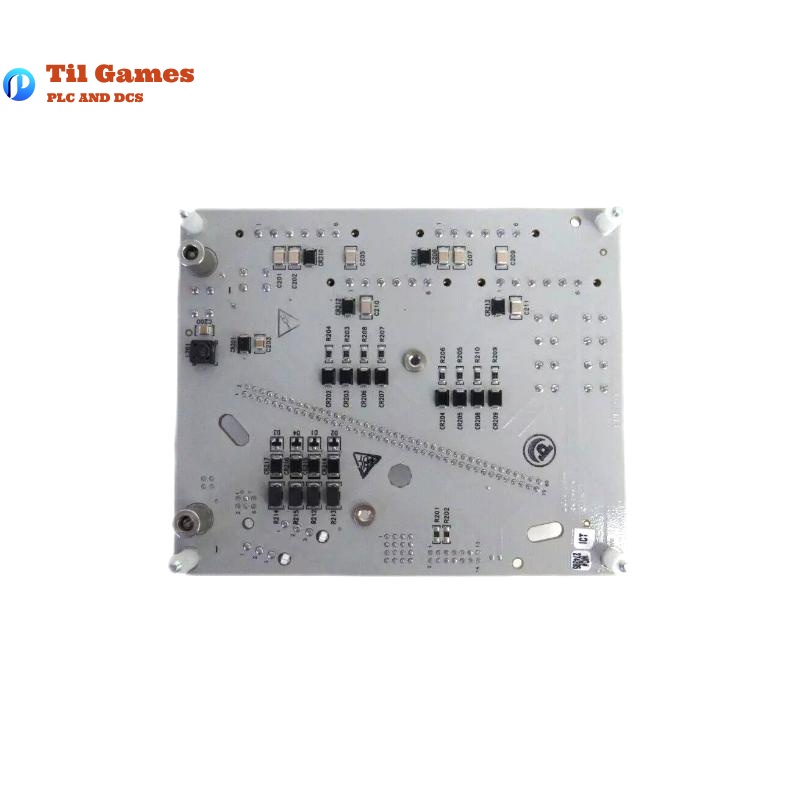

| Product Model | CC-TAIM01 |
| Compatible Module | CC-PAIM01 |
| Supported Input Types | Thermocouple (TC), RTD, Millivolt (mV) |
| Input Channels | Up to 64 channels (in 16-channel FTA groups) |
| Input Scan Rate | 1 second (fixed), up to 64 channels/sec |
| Channel Bandwidth | 0 to 4.7 Hz (-3 dB) |
| TC Input Range | -20 to +100 mV |
| Normal Mode Input Limits | TC: ±10 V; RTD: -1 to +2 V @ 100 mA |
| Gain Error | 0.050% Full Scale Max |
| Temperature Stability | ±20 ppm/°C (RTD & TC) |
| Long Term Drift | 500 ppm |
| Input Impedance (TC) | 1 MΩ at DC |
| CMV Rating | ±250 VDC or VAC RMS |
| CMRR | ≥120 dB at 50/60 Hz |
| Channel-to-Channel Isolation | ±250 VDC or VAC RMS |
| Crosstalk Rejection | 80 dB (120 dB at 50/60 Hz) |
| NMRR | ≥60 dB (50/60 Hz) |
| Cold Junction Accuracy | 0–50°C: ±1.0°C; -20–60°C: ±1.5°C |
| OTD Threshold | ≤1000Ω = no trip, ≥1500Ω = guaranteed trip |
| Max RTD Lead Resistance | 15 Ω |
| Supported TC Types | J, K, E, T, B, S, R, R’ |
| Supported RTD Types | Pt100 (DIN/JIS), Ni120, Cu10, Cu50 |
| Supported mV Range | -20 to +100 mV |
| Dimensions (mm) | 313 x 30 x 278 mm |
| Weight | 0.32 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What signal types does the CC-TAIM01 support?
A1: It supports thermocouple, RTD, and millivolt signal inputs.
Q2: How many channels can it handle?
A2: It supports up to 64 channels in 16-channel increments using multiple FTAs.
Q3: Is cold junction compensation included?
A3: Yes, integrated cold junction compensation (CJR) ensures temperature accuracy.
Q4: Can the module detect open thermocouple conditions?
A4: Yes, it supports open thermocouple detection to prevent invalid process variables.
Q5: Is channel-to-channel isolation provided?
A5: Yes, full isolation is provided between channels, power supply, and system common, rated at ±250 V.
Q6: What is the fixed scan rate of the module?
A6: The scan rate is fixed at 1 second for all channels.
Q7: Which RTD types are supported?
A7: Supported RTD types include Pt100 (DIN/JIS), Ni120, Cu10, and Cu50.
Q8: Does the module have surge protection?
A8: Yes, it complies with EN 61000-4-5 for surge immunity on both sensor and power/serial link terminals.
