Technical Specifications
| Parameter | Description |
|---|---|

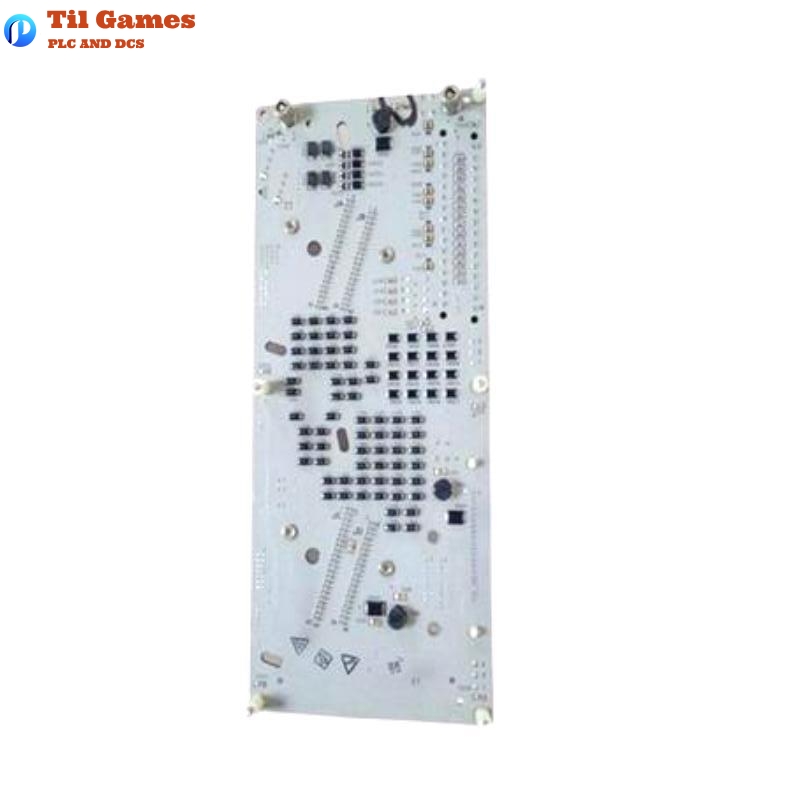

| Module Model | CC-TAIN11 |
| Module Type | Series-C High-Level Analog Input Module (Redundant) |

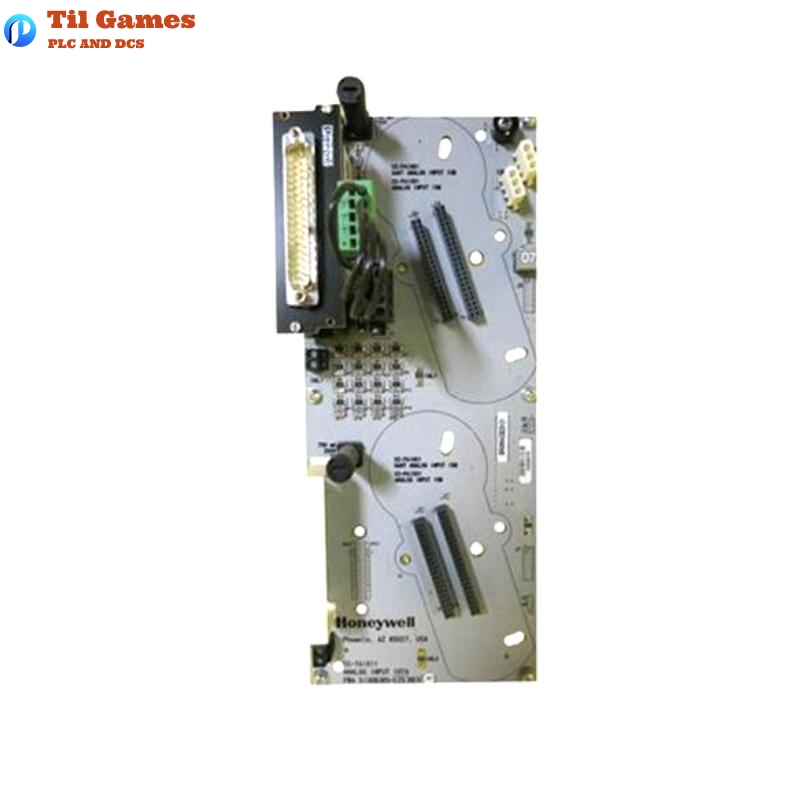

| IOTA Assembly | CC-TAIN11 (for redundant configuration) |
| Number of Channels | 16 Single-ended Inputs |
| Input Type | Current (2-wire or self-powered transmitters) |
| Input Range | 4-20 mA (via 200 Ω precision resistor) |
| A/D Converter Resolution | 16 bits |
| Common Mode Rejection Ratio | ≥ 70 dB (DC to 60 Hz) |
| Normal Mode Rejection Ratio | ≥ 20 dB (60 Hz) |
| Maximum Common Mode Voltage | ±30 V |
| Channel Crosstalk | -60 dB (DC to 60 Hz) |
| Input Scan Rate | 50 ms |
| Hardware Accuracy | ±0.075% FS (23.5°C ±2°C); ±0.15% FS (0~60°C) |
| Field Power Conditioning | Individually current-limited circuits for Class 1 Div 2 |
| Module Dimensions (mm) | 63.5 (H) x 124.46 (W) x 307.34 (D) |
| Module Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does the CC-TAIN11 support redundancy?
A1: Yes, the CC-TAIN11 is designed for redundant setups using a redundant IOTA.
Q2: What input signal types are supported?
A2: It supports 4-20 mA current inputs suitable for 2-wire or self-powered transmitters.
Q3: Is open wire detection available?
A3: Yes, it features built-in diagnostics for open wire detection.
Q4: How many input channels are supported per module?
A4: The module supports 16 single-ended input channels.
Q5: Does the module feature electrical isolation?
A5: Yes, each input is electrically isolated from the system.
Q6: What environments is this module suitable for?
A6: Suitable for Class 1 Div 2 hazardous locations with non-incendive field power.
Q7: What is the resolution of the A/D converter?
A7: The module features a 16-bit high-resolution A/D converter.
Q8: What are the dimensions and weight of the module?
A8: Dimensions are 63.5 x 124.46 x 307.34 mm, and the weight is 0.5 kg.
