Technical Specifications
| Parameter | Description |
|---|---|

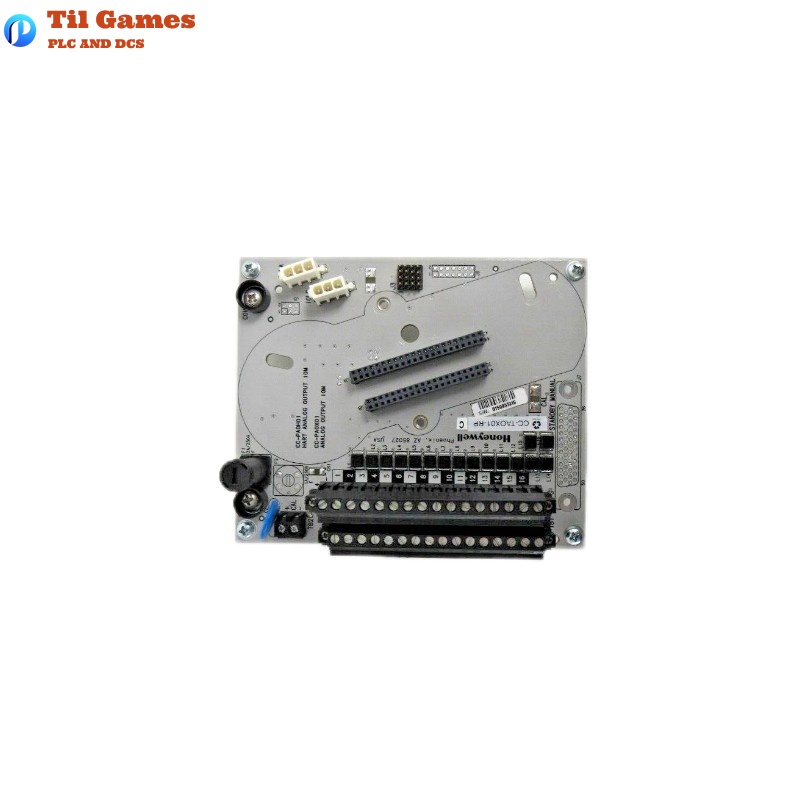

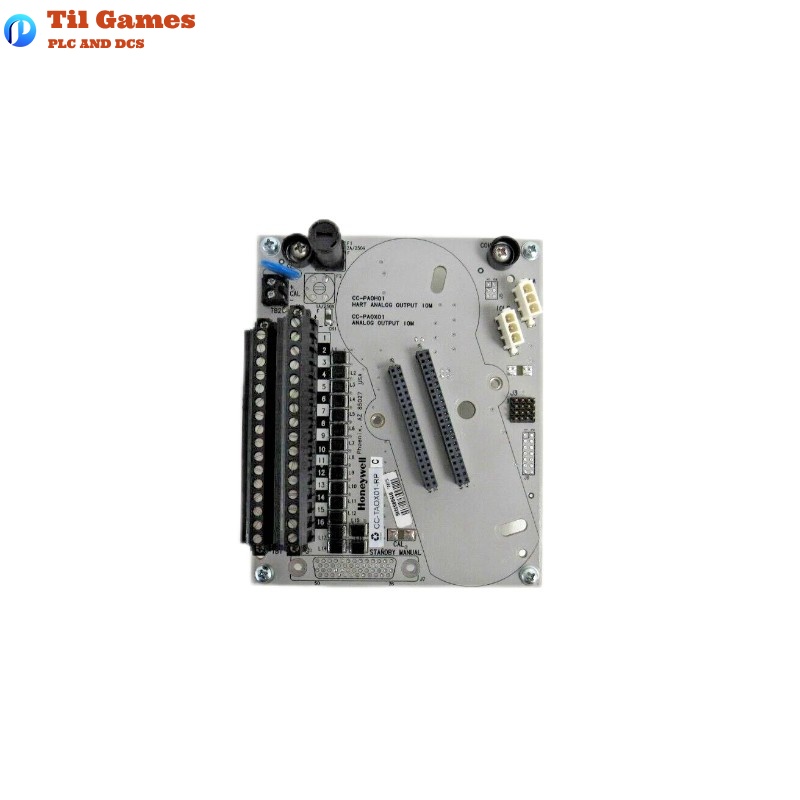

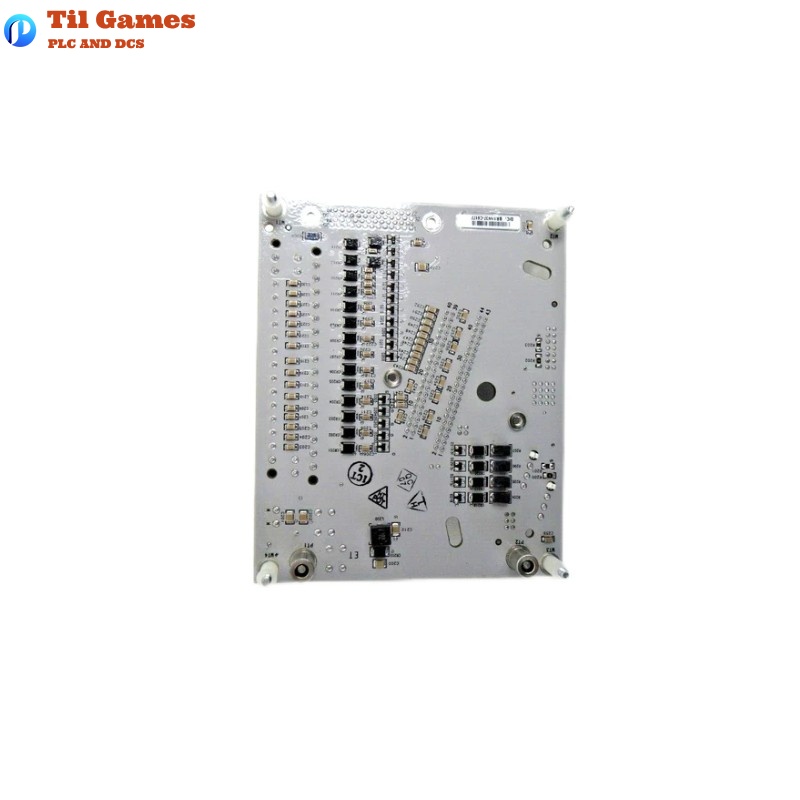

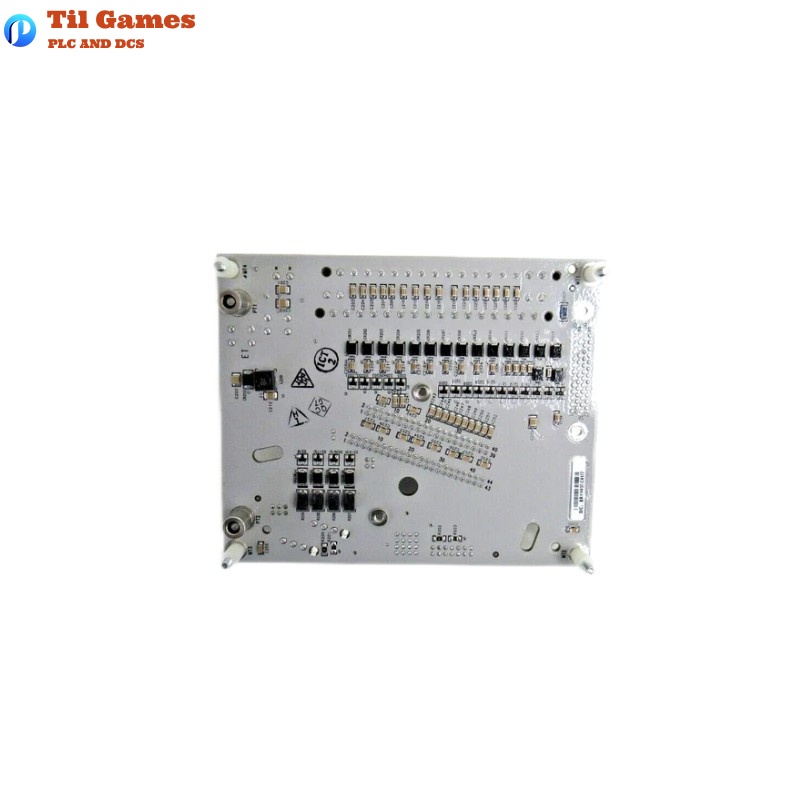

| Product Name | CC-TAOX10 Series-C Analog Output IOTA |
| Type | Analog Output IOTA |
| Output Channels | 8 channels |
| Signal Type | 4–20 mA DC |
| Load Resistance | 0–750 ohms |
| Calibration | Factory calibrated |
| Installation | DIN rail or rack mount |
| Power Supply | Supplied by associated module |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions (W x H x D) | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.4 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of signals does the CC-TAOX10 support?
A1: It supports 4–20 mA analog output signals across 8 independent channels.
Q2: Can the module be mounted on a DIN rail?
A2: Yes, it supports DIN rail as well as rack mounting.
Q3: What is the maximum load resistance for each output channel?
A3: The maximum load resistance per channel is 750 ohms.
Q4: Is field calibration required for this module?
A4: No, the module is factory calibrated and does not require field calibration.
Q5: What kind of environmental conditions can it operate under?
A5: It operates in temperatures from 0°C to 60°C and up to 95% non-condensing humidity.
Q6: Is the CC-TAOX10 hot-swappable?
A6: No, the module is not hot-swappable; power should be turned off before replacement.
Q7: What power supply is required for the CC-TAOX10?
A7: The power is supplied through the connected controller or related I/O interface.
Q8: What applications is this module typically used in?
A8: It is commonly used in process control, such as controlling valves, actuators, and analog drives.
