Technical Specifications
| Parameter | Description |
|---|---|

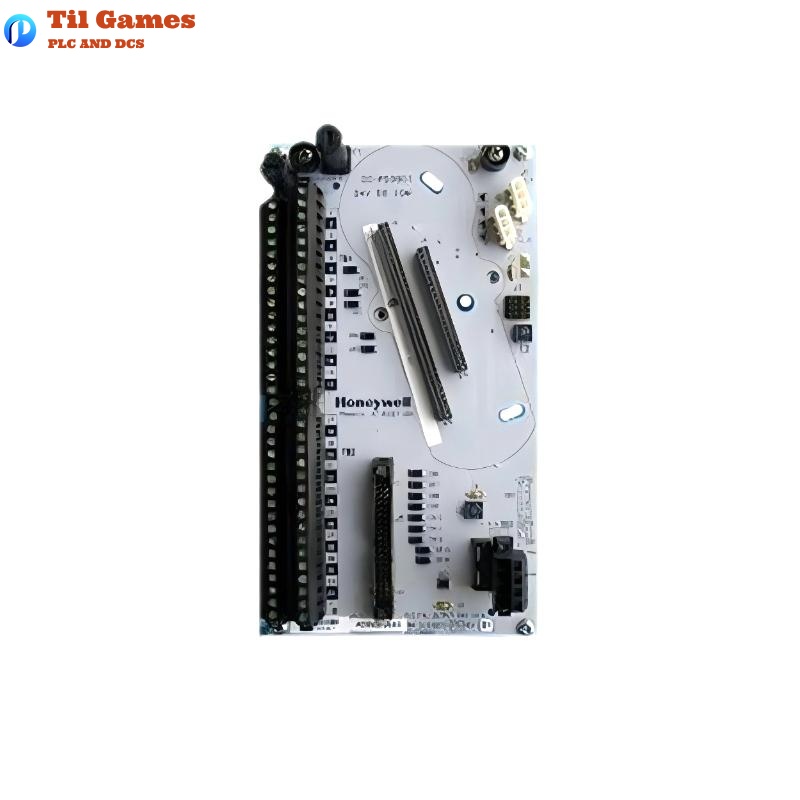

| Model | CC-TDI230 |
| Module Type | High Voltage Digital Input Module (220VAC) |
| Number of Channels | 32 |
| Rated Input Voltage | 220 VAC |
| Input Voltage Range | 180 – 264 VAC RMS |
| On-State Current | ≥1.11 mA RMS (@180V) |
| Off-State Current | ≤0.32 mA RMS (@264V) |
| Pickup Voltage | ≥180 VAC RMS |
| Dropout Voltage | ≤50 VAC RMS |
| Isolation Method | Optical |
| Isolation Voltage | 1500 VAC RMS or ±1500 VDC |
| Frequency Range | 47 – 63 Hz |
| Input Filter Delay | 25 ms max |
| Redundancy Support | Supported (with 12-inch IOTA) |
| Dimensions | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.4 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many digital input channels does the CC-TDI230 module support?
A1: It supports 32 high-voltage (220VAC) digital input channels.
Q2: Is redundancy supported by the CC-TDI230 module?
A2: Yes, it supports redundancy when installed with a redundant IOTA.
Q3: What is the acceptable input voltage range for this module?
A3: The input voltage range is 180 to 264 VAC RMS.
Q4: Are the input channels electrically isolated?
A4: Yes, each channel is optically isolated with 1500 VAC RMS or ±1500 VDC isolation.
Q5: What is the input filter delay of the module?
A5: The maximum input delay is 25 milliseconds.
Q6: Does this module support both 50Hz and 60Hz power systems?
A6: Yes, the supported frequency range is 47 to 63 Hz.
Q7: Does the module feature open wire detection?
A7: Open wire detection is not explicitly specified but basic diagnostic capabilities are present.
Q8: What are the physical dimensions and weight of the module?
A8: The module measures 63.5 x 124.46 x 307.34 mm and weighs 0.4 kg.
