Technical Specifications
| Parameter | Description |
|---|---|

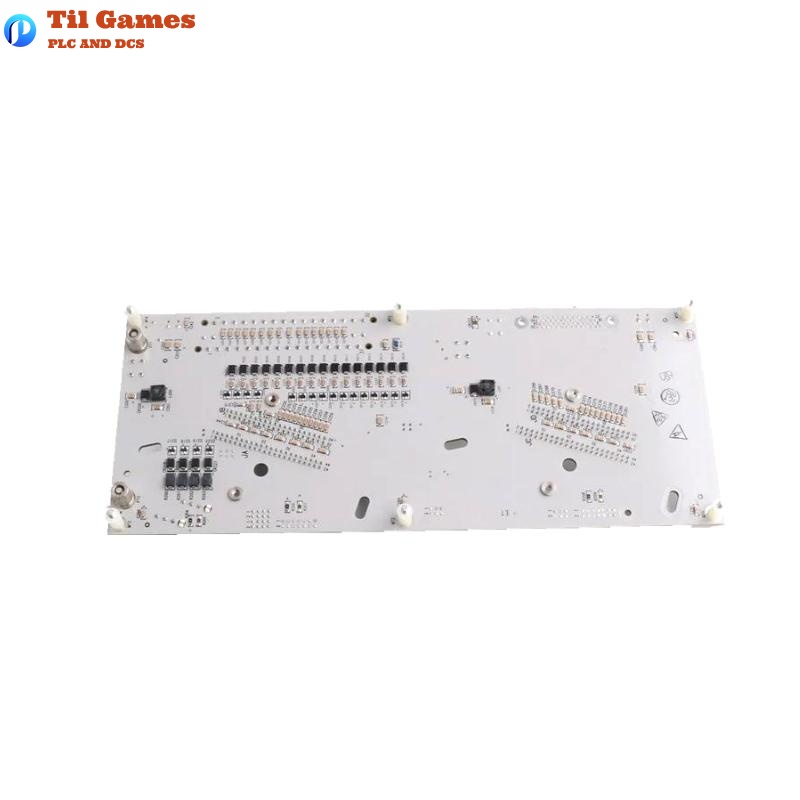

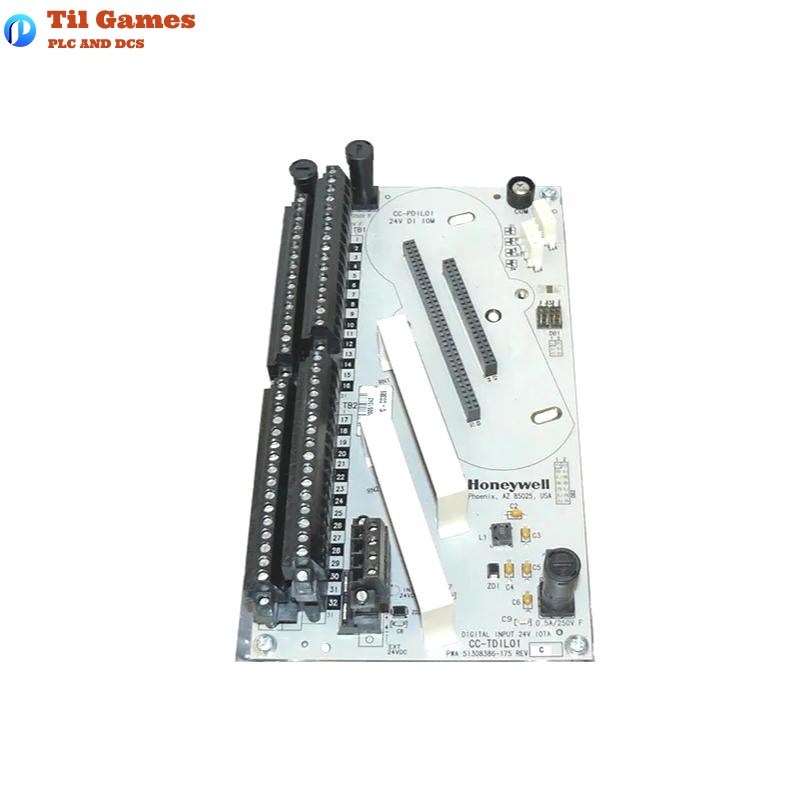

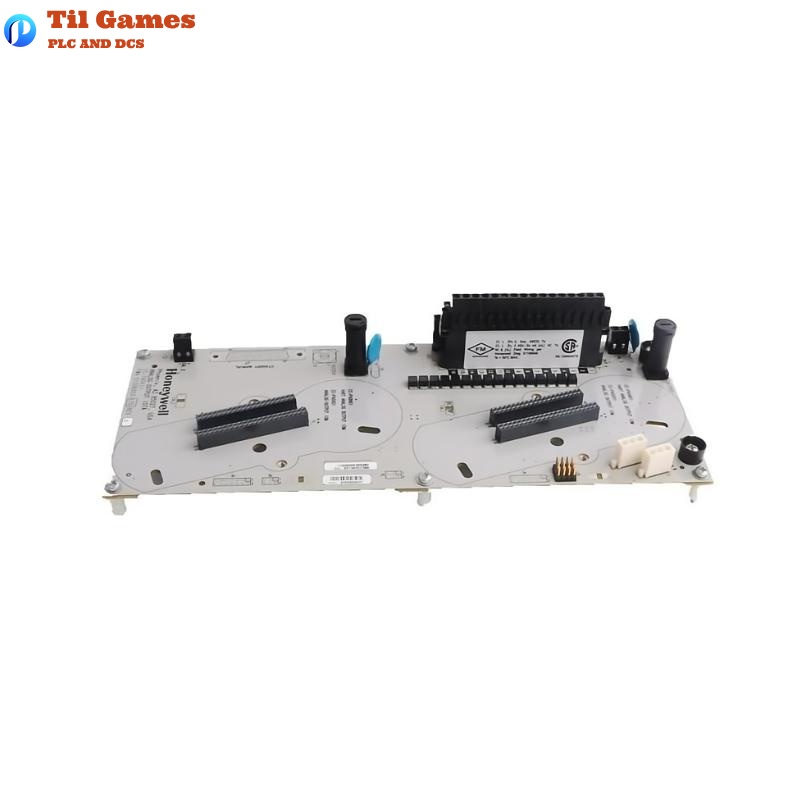

| Module Model | CC-TDIL51 |
| Compatible IOM | CC-PDIL51 |
| Number of Input Channels | 32 |
| Isolation Technique | Optical Isolation |
| Galvanic Isolation | 1000 VAC RMS |
| DI Power Voltage Range | 18 – 30 VDC |
| ON Sense Voltage/Current | ≥13 VDC or ≥3 mA |
| OFF Sense Voltage/Current | ≤5 VDC or ≤1.2 mA |
| Input Impedance | 4.2 kΩ |
| Input Filter Delay | 5 ms ±20% |
| Guaranteed ON Resistance | ≤300 Ω @15 VDC |
| Guaranteed OFF Resistance | ≥30 kΩ @30 VDC |
| Redundancy Support | Yes (with CC-TDIL61) |
| Dimensions (mm) | 63.5 x 124.46 x 307.34 |
| Weight (kg) | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many digital input channels does the CC-TDIL51 support?
A1: It supports 32 digital input channels.
Q2: Does this module support redundancy?
A2: Yes, it supports redundancy when paired with the CC-TDIL61.
Q3: What is the input voltage range supported?
A3: It supports an input voltage range of 18 to 30 VDC.
Q4: Does the module support open wire detection?
A4: No, open wire detection is not supported by CC-TDIL51.
Q5: Are the input channels galvanically isolated?
A5: Yes, optical isolation is provided for all input channels.
Q6: Can the module use internal or external field power?
A6: Yes, it can be configured to use either internal or external field power.
Q7: What is the input filter delay?
A7: The filter delay is 5 ms with a ±20% tolerance.
Q8: What are the dimensions and weight of the module?
A8: The dimensions are 63.5 x 124.46 x 307.34 mm, and the weight is approximately 0.5 kg.
