Technical Specifications
| Parameter | Specification |
|---|---|

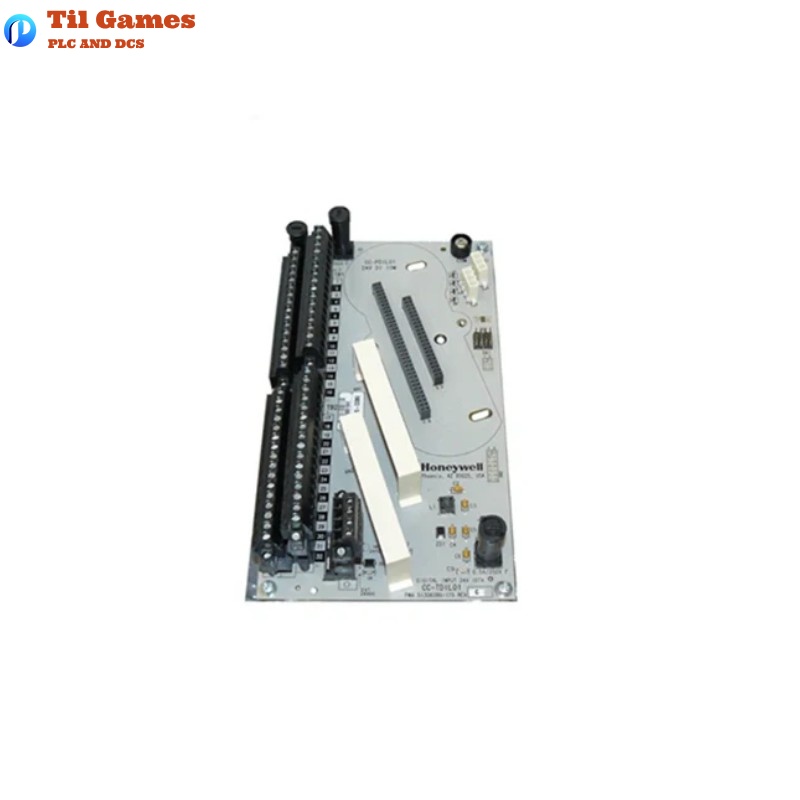

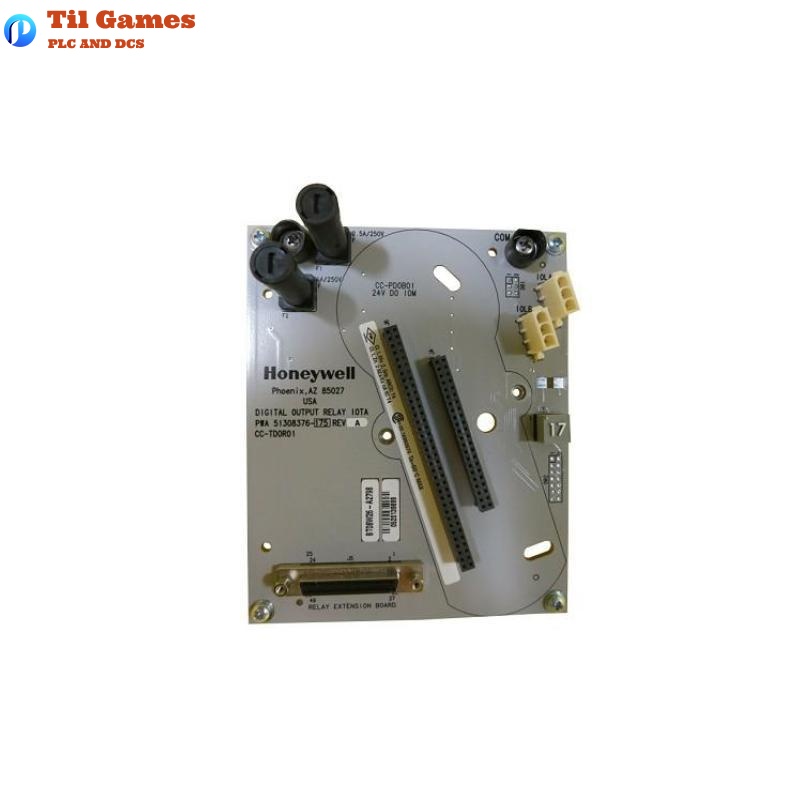

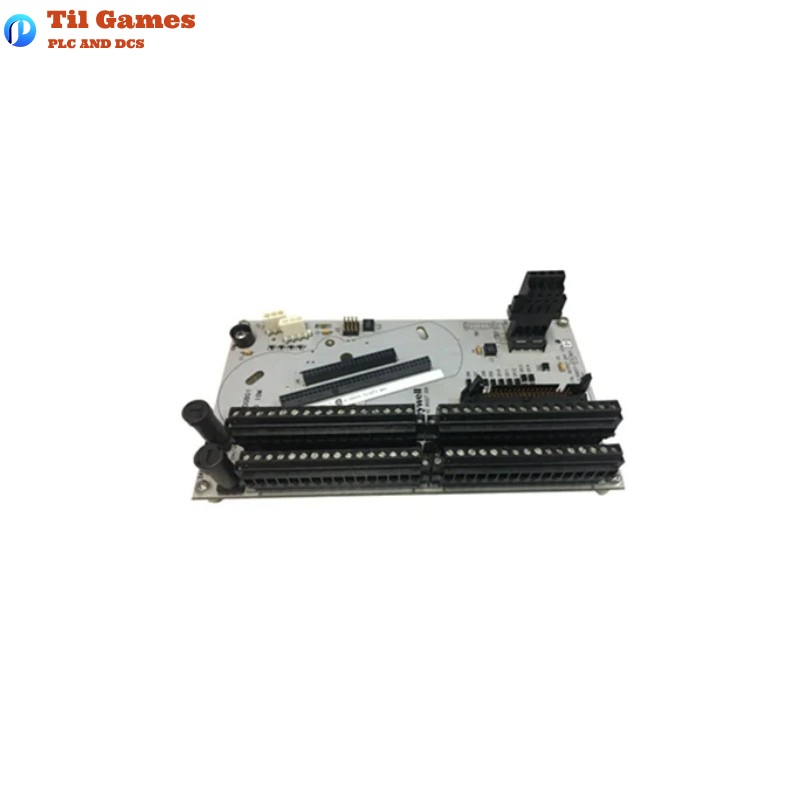

| Model | CC-TDOR01 |
| Module Type | Digital Output Relay Module (uses CC-PDOB01 IOM) |
| IOTA Compatibility | CC-TDOR01 (Non-Redundant, 6″) |
| Channels | 32 isolated Form A (NO) or Form B (NC) relays (selectable) |
| Contact Type | AgSnO₂ |
| Maximum Load Voltage | 250 VAC / 125 VDC |
| Maximum Load Current | 3 A @ 125/250 VAC resistive 3 A @ 30 VDC resistive |
| Inductive Load Support | See technical note: Up to 2 A @ 125/250 VAC (PF 0.4) |
| Minimum Load | 12 VDC, 100 mA |
| Inrush Current (Max) | 10 A for 4 seconds, 10% duty cycle |
| Isolation | 1500 VAC RMS / ±1500 VDC channel-to-channel & logic |
| Turn-on Time | 20 ms max |
| Turn-off Time | 20 ms max |
| Contact Life | Mechanical: 5,000,000 cycles Electrical: 50,000 cycles @ 6 A |
| Surge Absorption | 120 Ω + 0.033 µF per channel |
| Dimensions | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of relay contacts does the CC-TDOR01 support?
A1: It supports Form A (Normally Open) and Form B (Normally Closed) contacts, selectable via jumper per channel.
Q2: What is the maximum switching voltage and current?
A2: Up to 250 VAC or 125 VDC, with a resistive load current of 3 A per channel.
Q3: Does the module provide electrical isolation?
A3: Yes, it provides 1500 VAC RMS isolation between channels and from channels to logic.
Q4: Can I use the CC-TDOR01 in high inrush current applications?
A4: Yes, it can handle inrush currents up to 10 A for 4 seconds with a 10% duty cycle.
Q5: What is the minimum load requirement?
A5: Minimum load is 12 VDC at 100 mA.
Q6: How many output channels are available?
A6: The module has 32 output channels.
Q7: Are the relays replaceable?
A7: Yes, the relays are socketed for easy replacement.
Q8: What is the turn-on and turn-off delay time?
A8: Both turn-on and turn-off times are a maximum of 20 milliseconds.
