Technical Specifications
| Parameter | Description |
|---|---|

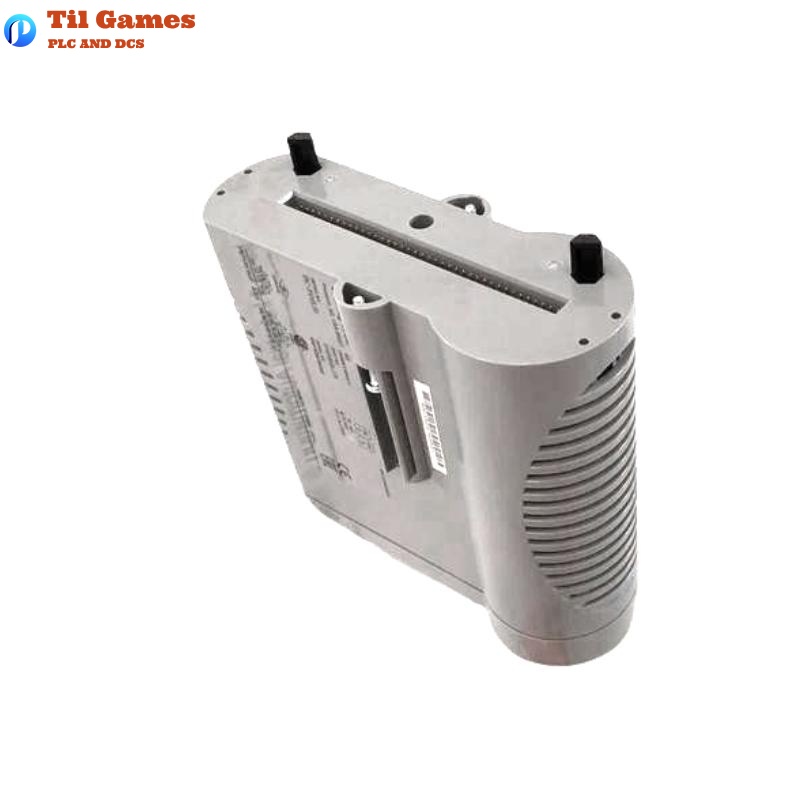

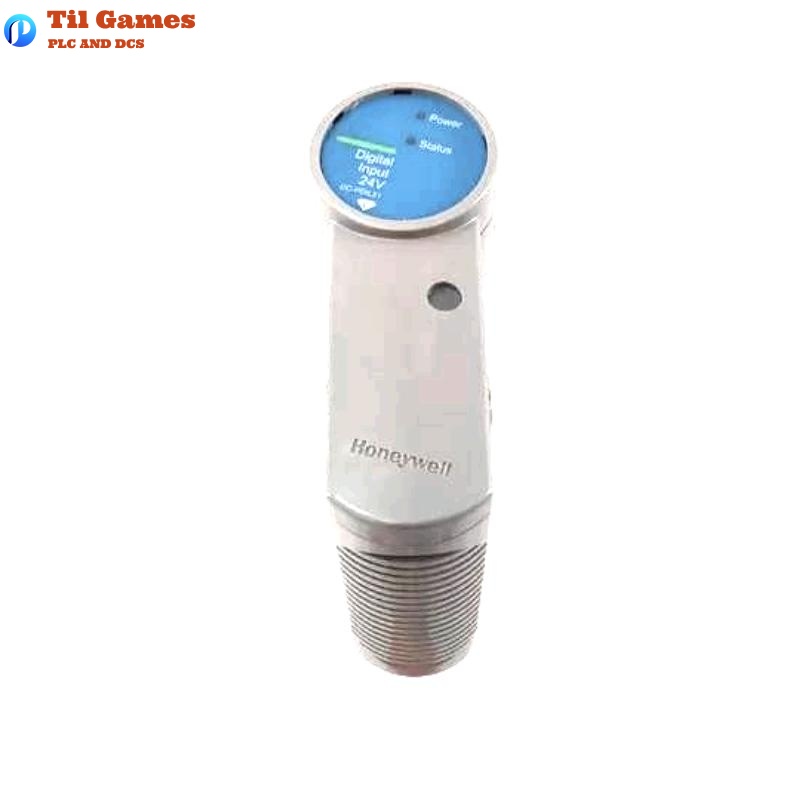

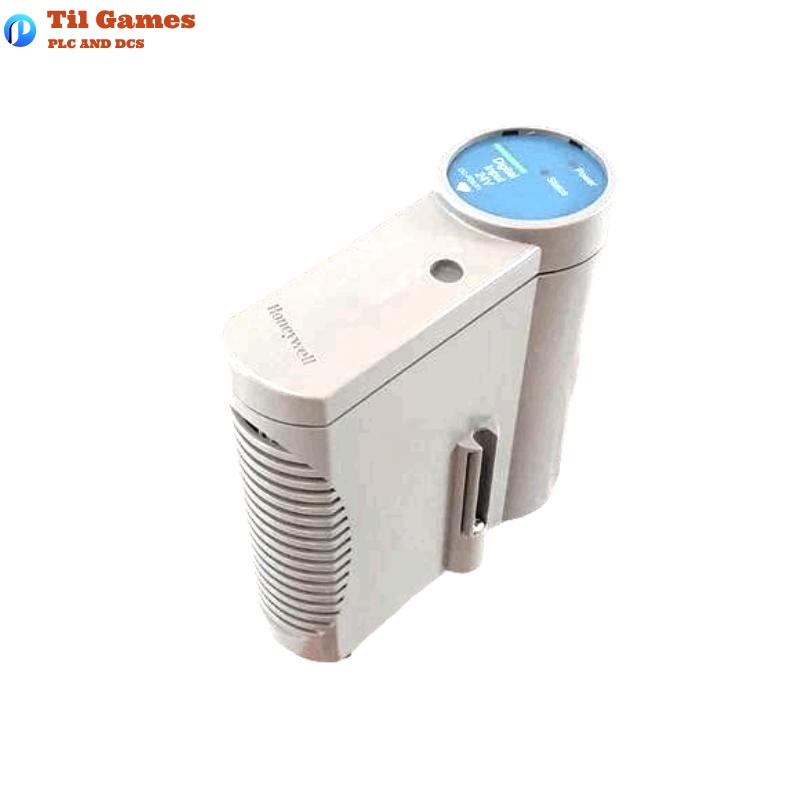

| Model Number | DC-PDIL51 |
| I/O Type | 24V DC Digital Input Module |
| IOTA Models | DC-TDIL51 (Non-Redundant, 9″) DC-TDIL61 (Redundant, 12″) |
| Input Channels | 32 channels |
| Galvanic Isolation | 1000 VAC RMS (Optical isolation in IOM) |
| DI Power Voltage Range | 18 to 30 VDC |
| ON Sense Voltage/Current | ≥13 VDC or ≥3 mA |
| OFF Sense Voltage/Current | ≤5 VDC or ≤1.2 mA |
| Input Impedance | 4.2 kΩ |
| Delay Across Isolation | 5 ms ± 20% |
| Dimensions | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many digital inputs does the DC-PDIL51 module support?
A1: It supports 32 channels of 24V DC digital inputs.
Q2: Does the DC-PDIL51 feature optical isolation?
A2: Yes, it uses optical isolation with 1000 VAC RMS isolation voltage.
Q3: What are the valid ON and OFF voltage/current sensing levels?
A3: ON is detected at ≥13VDC or ≥3mA; OFF is at ≤5VDC or ≤1.2mA.
Q4: Is redundancy supported with this module?
A4: Yes, redundancy is supported when used with the DC-TDIL61 IOTA.
Q5: Does the module provide onboard excitation power?
A5: Yes, it includes onboard power, removing the need for marshalling.
Q6: Is the module suitable for use in hazardous environments?
A6: Yes, it supports non-incendive applications, compliant with Class 1, Div 2.
Q7: Does it support open wire detection?
A7: While not explicitly stated, similar modules in the series support such features.
Q8: What are the physical dimensions and weight of the module?
A8: Dimensions are 63.5 x 124.46 x 307.34 mm, and the weight is 0.5 kg.
