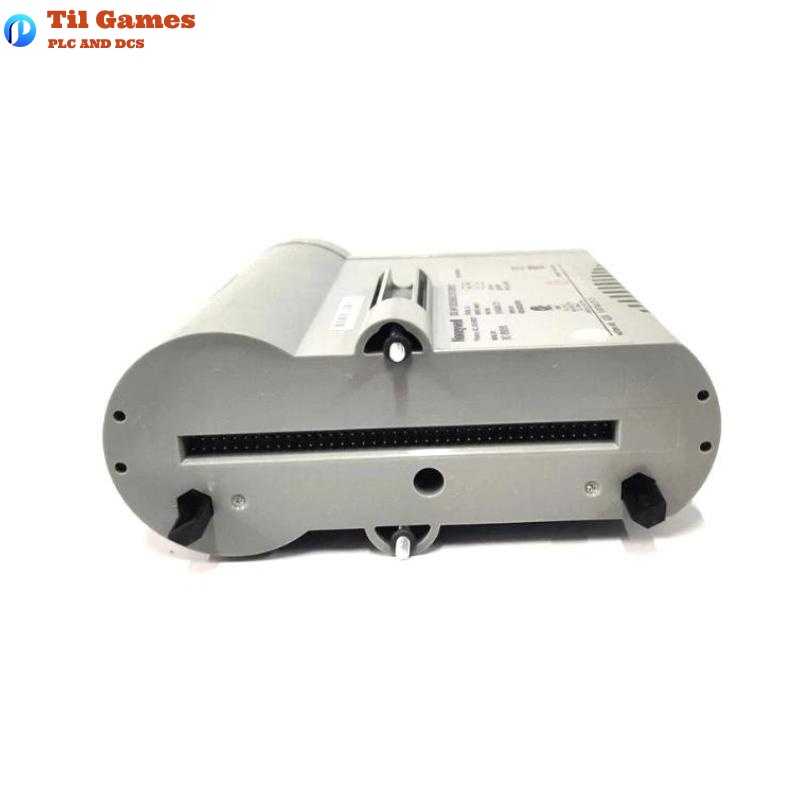

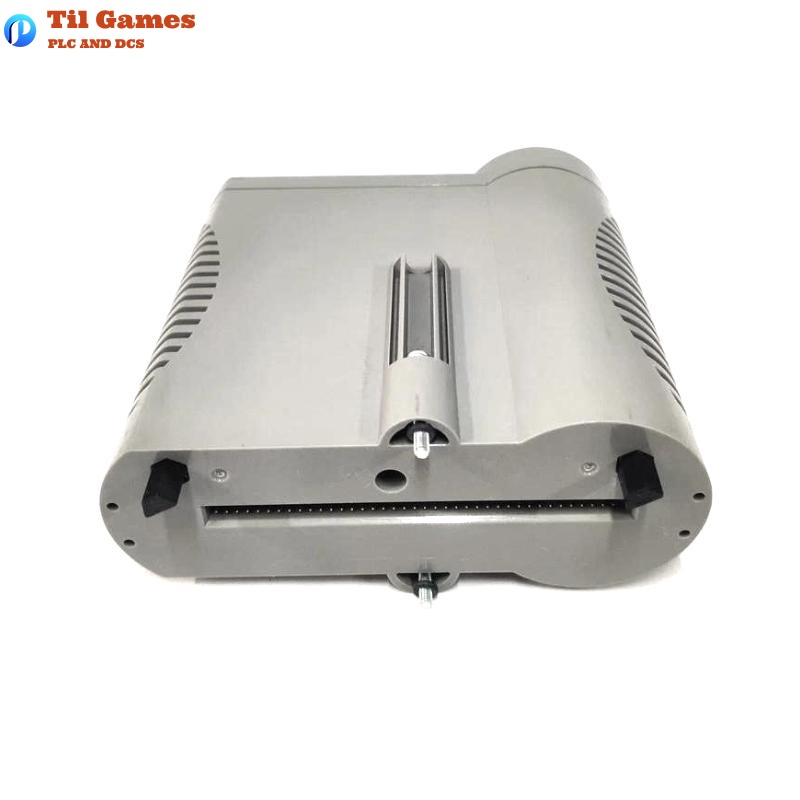

Technical Specifications
| Parameter | Specification |
|---|---|

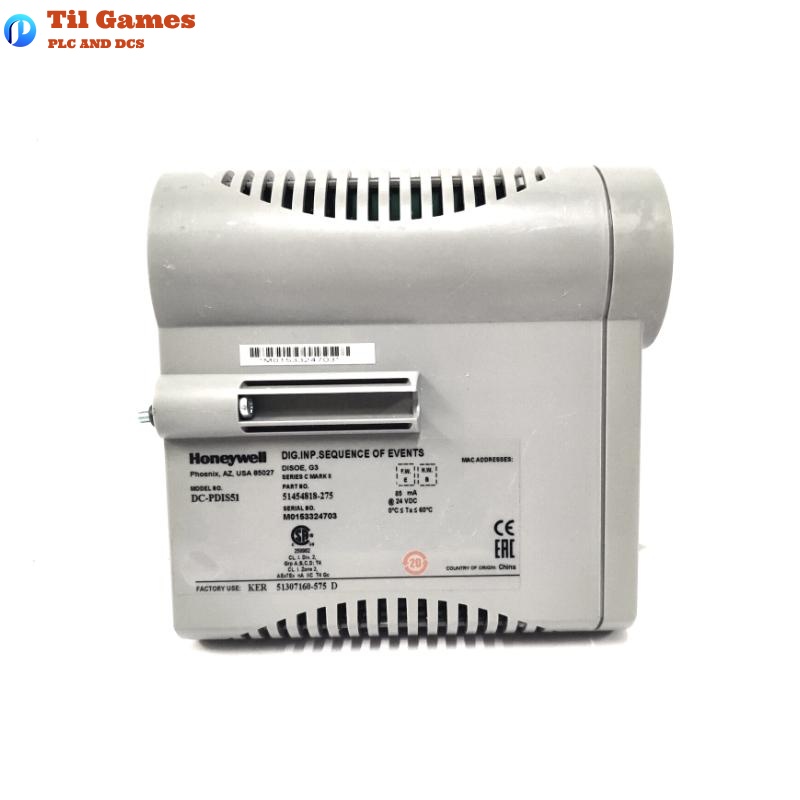

| Model | DC-PDIS51 |
| Type | Digital Input Module – Sequence of Events (SOE) |
| Input Channels | 32 |
| Input Voltage Range | 18 to 30 VDC |
| ON State Threshold | ≥13 VDC or ≥3 mA |
| OFF State Threshold | ≤5 VDC or ≤1.2 mA |
| Input Impedance | 4.2 kΩ |
| Input Scan Rate (PV) | Normal: 20 ms Low Latency: 5 ms |
| SOE Resolution | 1 ms |
| Isolation Voltage | 1000 VAC RMS or ±1000 VDC (channel to logic common) |
| Isolation Type | Optical |
| Delay (Filter + Isolation) | 5 ms ± 20% |
| Field Resistance for ON Condition | Max 300 Ω @ 15 VDC |
| Field Resistance for OFF Condition | Min 30 kΩ @ 30 VDC |
| Redundancy Support | Yes (using DC-TDIL61 IOTA) |
| Compatible IOTA Modules | DC-TDIL51 (Non-redundant, 9″) DC-TDIL61 (Redundant, 12″) |
| Dimensions | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of input signals does the DC-PDIS51 support?
A1: It accepts 24VDC discrete input signals and provides high-resolution time tagging for Sequence of Events (SOE) applications.
Q2: Does this module support redundant configurations?
A2: Yes. Redundancy can be achieved by installing a second IOM on the same IOTA, such as the DC-TDIL61.
Q3: What is the timestamp resolution for sequence of events?
A3: The module supports event timestamping with a 1 millisecond (1 ms) resolution.
Q4: What type of isolation is used for input channels?
A4: The inputs are optically isolated, rated at 1000 VAC RMS or ±1000 VDC relative to logic common.
Q5: Is external field power supported?
A5: Yes, the module supports both internal and external field power configurations without the need for marshalling power.
Q6: What is the acceptable input voltage range for operation?
A6: The operating voltage range for input signals is between 18 and 30 VDC.
Q7: Is there any input delay due to filtering or isolation?
A7: Yes. The total delay through the input filter and isolation is 5 ms ± 20%.
Q8: What are the typical applications for the DC-PDIS51 module?
A8: It is ideally used in control systems requiring accurate event logging, such as alarm monitoring, time-critical process tracking, and sequence verification.
