Technical Specifications
| Parameter | Description |
|---|---|

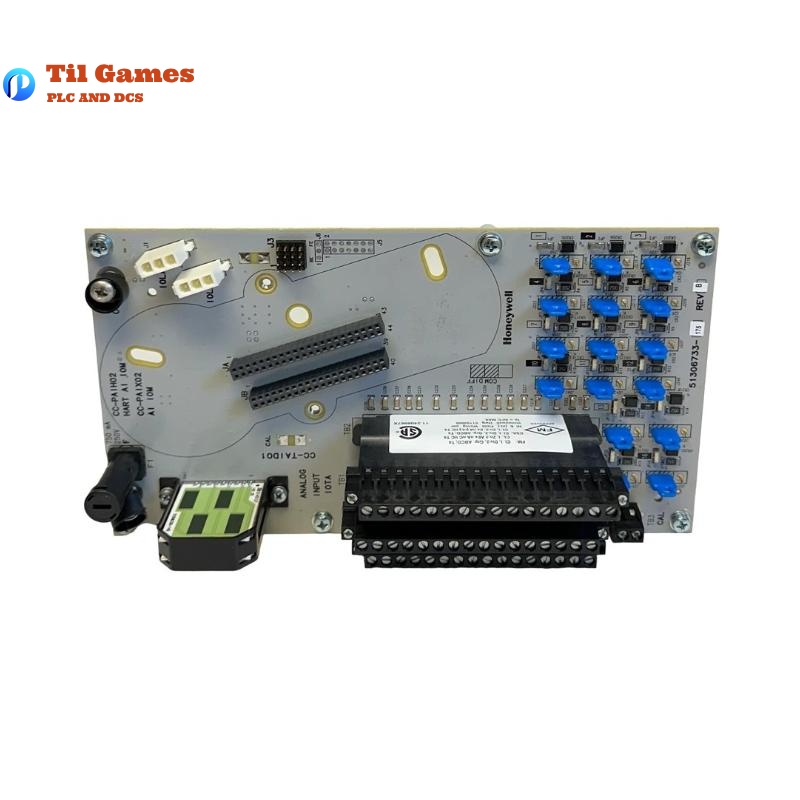

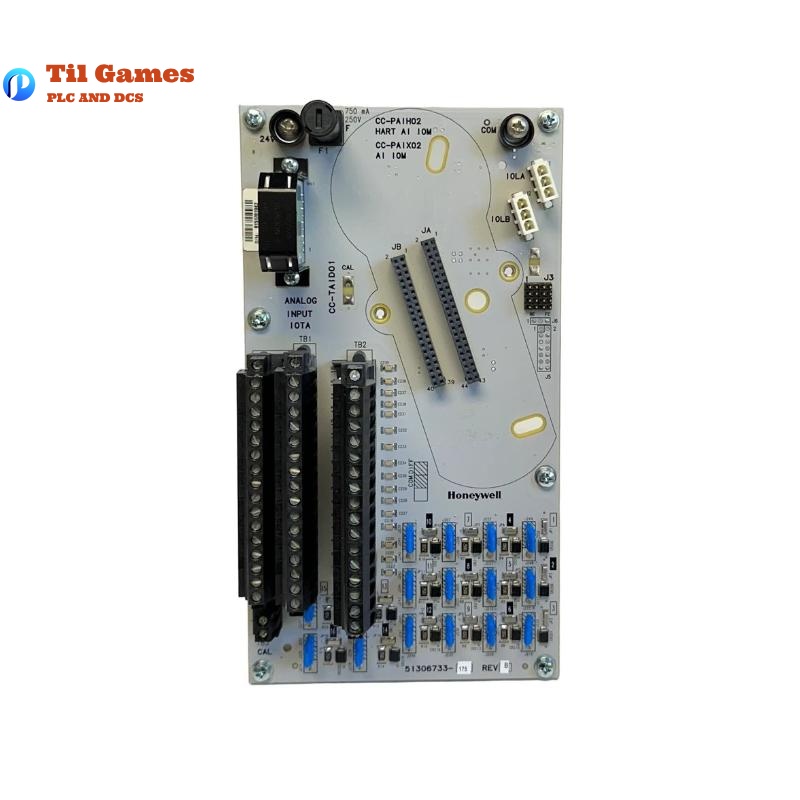

| Product Model | DC-TAID01 |
| Module Type | Analog Input IOTA – Differential |
| Input Signal Type | Voltage or current input (2-wire or self-powered transmitters) |
| Number of Channels | 16 differential input channels |
| Input Voltage Range | 0-5V, 1-5V, 0.4-2V |
| Input Current Range | 4-20 mA (via 250Ω resistor) |
| A/D Converter Resolution | 16 bits |
| Input Impedance | > 10 MΩ (powered voltage input) |
| Common Mode Voltage | -6V to +5V peak |
| CMRR | 70 dB (DC to 60Hz, 500Ω source imbalance) |
| NMRR | 19 dB at 60Hz |
| Filter Response | Single-pole RC, -3 dB @ 6.5 Hz |
| Max Normal Mode Input | ±30V (non-damaging, differential) |
| Max Input Voltage | ±30V (non-damaging, referenced to common) |
| Crosstalk | -60 dB (channel-to-channel, DC to 60Hz) |
| Input Scan Rate | 50 ms |
| Hardware Accuracy | ±0.075% full-scale (23.5±2°C); ±0.15% (0 to 60°C) |
| Field Power Conditioning | Individually current-limited per channel; no fuses required |
| Dimensions | 95 x 135 x 25 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of input signals are supported by the DC-TAID01 module?
A1: It supports both voltage and current inputs, suitable for 2-wire or self-powered transmitters.
Q2: Does this module support redundancy?
A2: Yes, redundancy is supported when used with CC-PAIH02 and the redundant IOTA model DC-TAID11.
Q3: Are all channels differential inputs?
A3: Yes, all 16 channels are differential input.
Q4: Are the channels isolated?
A4: While not fully optically isolated, the module design includes high crosstalk rejection between channels.
Q5: Does the module offer signal protection?
A5: Yes, each channel is individually protected by current limiting circuits; no external fuses are required.
Q6: What signal ranges can the module read?
A6: It supports 0-5V, 1-5V, 0.4-2V, and 4-20 mA (with 250Ω burden).
Q7: What is the signal scan rate?
A7: The scan rate is 50 milliseconds.
Q8: What are the dimensions and weight of the module?
A8: The module measures 95 x 135 x 25 mm and weighs 0.3 kg.
