Technical Specifications
| Parameter | Description |
|---|---|

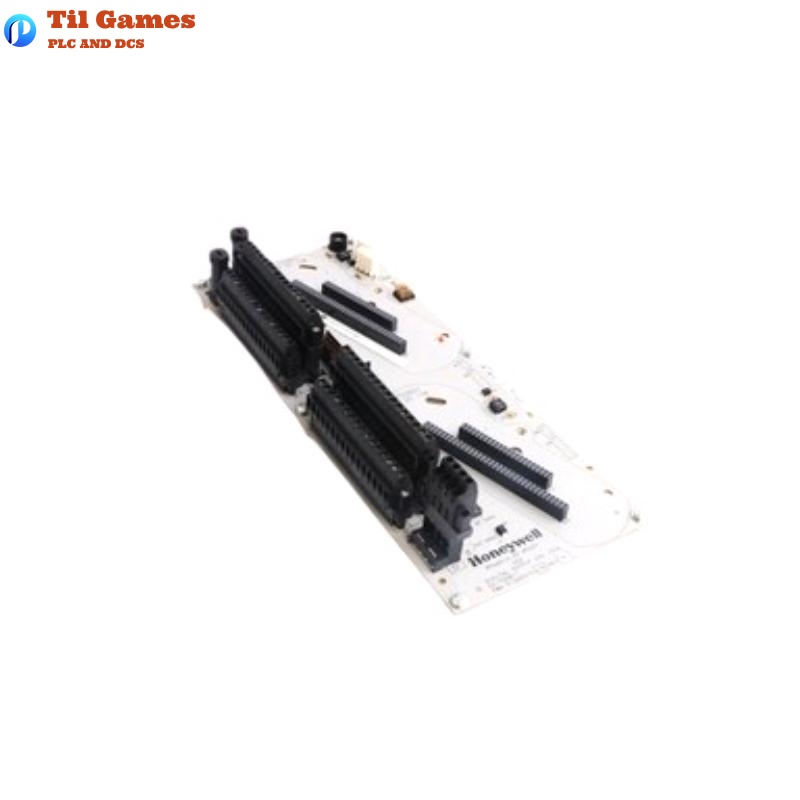

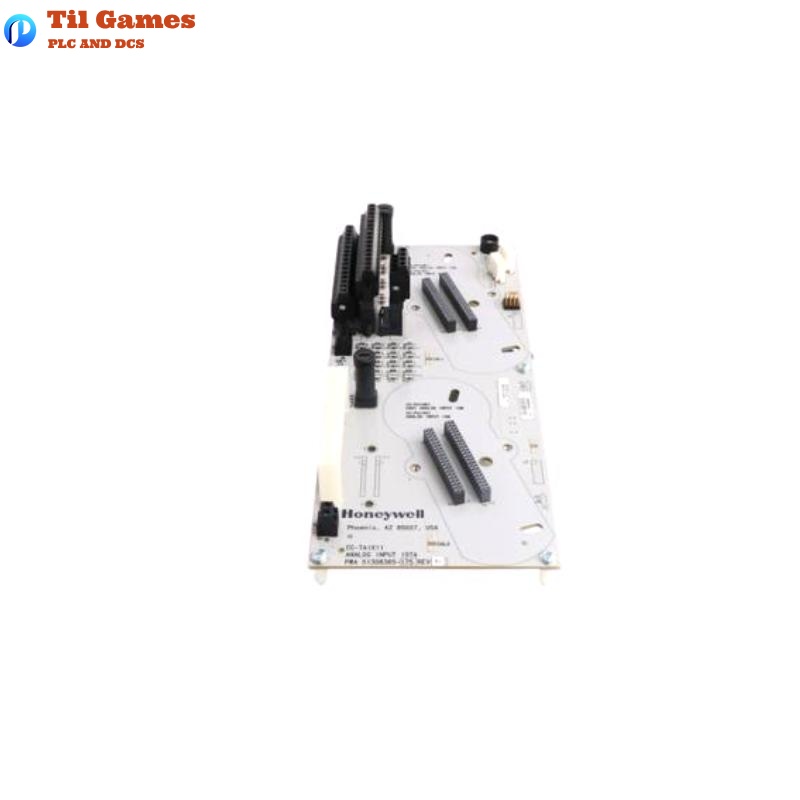

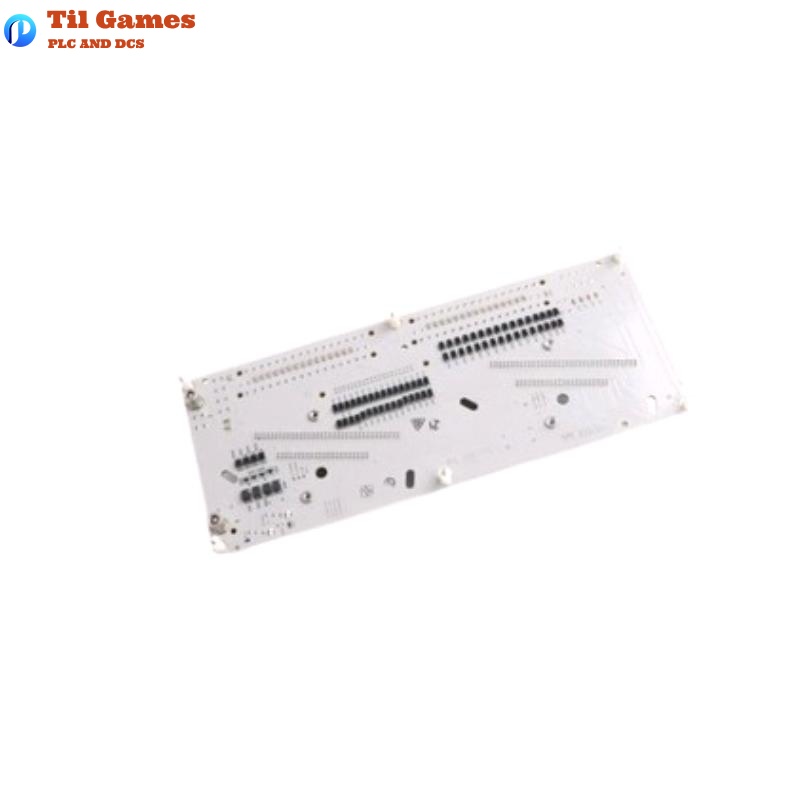

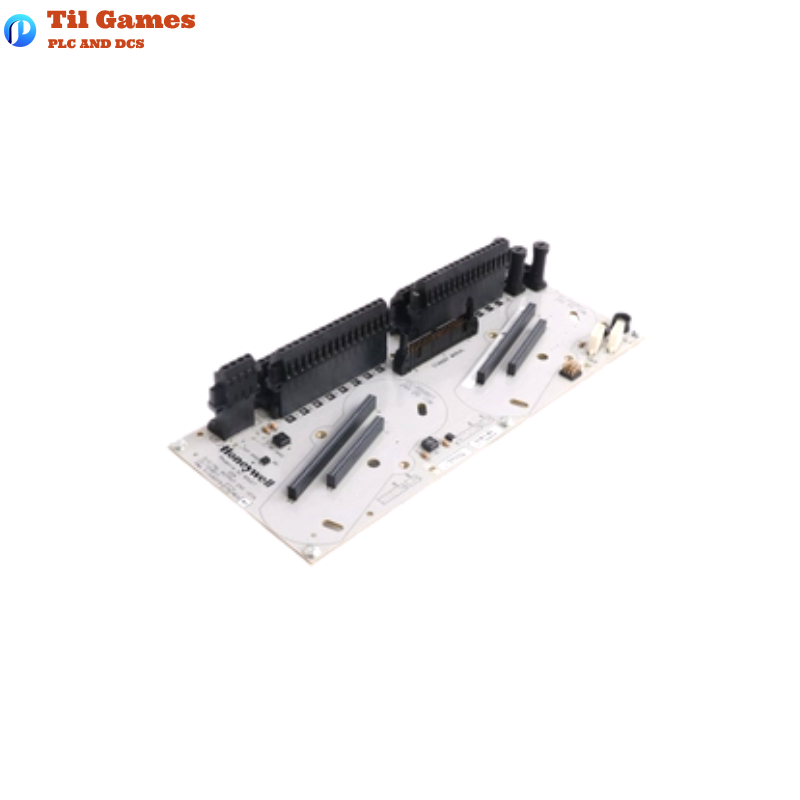

| Model Number | DC-TAIX11 |
| Module Type | Analog Input IOTA, Redundant |
| Compatible IOM | CC-PAIH01 High-Level Analog Input with HART |
| Input Channels | 16 total (12 Single-Ended + 4 Differential) |
| Input Type | Voltage/Current (2-wire or self-powered transmitters) |
| Input Range | 0–5V, 1–5V, 0.4–2V, 4–20mA (via 250 Ω resistor) |
| CMRR | 70 dB (500 Ω source imbalance) |
| Common Mode Voltage | -6 V to +5 V peak |
| A/D Resolution | 16 bits |
| Input Impedance | >10 MΩ powered (voltage inputs) |
| Normal Mode Rejection | 19 dB at 60 Hz |
| Filter Response | Single-pole RC, -3 dB @ 6.5 Hz |
| Max Input Voltage | ±30 V (no damage) |
| Crosstalk | -60 dB |
| Input Scan Rate | 50 ms |
| Accuracy | ±0.075% of full scale (23.5±2°C) ±0.15% (0–60°C) |
| Dimensions | 22 mm x 124 mm x 126 mm |
| Weight | 1.6 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What signal types are supported by DC-TAIX11?
A1: It supports voltage and current inputs such as 0–5V, 1–5V, 0.4–2V, and 4–20mA.
Q2: Does the module support HART protocol?
A2: Yes, when used with the CC-PAIH01 IOM, HART communication is supported.
Q3: Is redundancy supported?
A3: Yes, DC-TAIX11 is a redundant IOTA and supports a second IOM for hot standby.
Q4: Are 250 Ω load resistors included?
A4: Yes, channels 13–16 have built-in 250 Ω resistors that can be removed for voltage inputs.
Q5: Are differential inputs supported?
A5: Yes, channels 13–16 support differential inputs if the low-side jumper is removed.
Q6: Is overvoltage protection available?
A6: Yes, input voltages up to ±30 V can be tolerated without damaging the module.
Q7: Does the module support open wire detection?
A7: Yes, it features open wire detection for invalid PV diagnostics.
Q8: Can DC-TAIX11 be used in hazardous locations?
A8: Yes, it is suitable for Class 1, Division 2 environments when paired with non-incendive IOMs.
