Technical Specifications
| Parameter | Description |
|---|---|

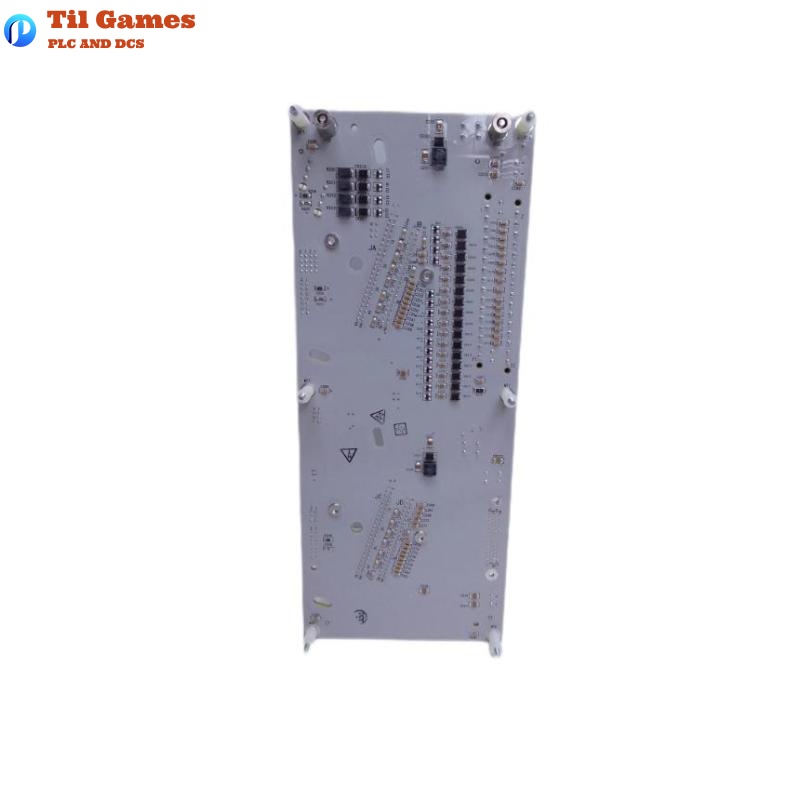

| Model Number | DC-TAOX11 |
| Part Number | 51307605-176 |
| Product Type | Digital Output Module |
| Number of Channels | 8 digital output channels |
| Output Type | 24 VDC, sourcing type |
| Rated Current/Channel | Max 0.5 A per channel |
| Voltage Range | 18 to 30 VDC |
| Isolation Voltage | Channel to system: 1500 VDC |
| Response Time | < 1 ms |
| Connection Type | Plug-in terminal block |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Method | DIN rail or rack mount |
| Dimensions | 156 x 66 x 30 mm |
| Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of loads are supported by the DC-TAOX11 module?
A1: It supports both resistive and inductive DC loads. A flyback diode is recommended across inductive loads.
Q2: What is the maximum output current per channel?
A2: Each channel supports up to 0.5 A of output current.
Q3: Does the module provide short-circuit protection?
A3: Yes, it includes basic short-circuit and overload protection.
Q4: Is the module electrically isolated from the control system?
A4: Yes, it offers 1500 VDC isolation between channels and the system.
Q5: Can this module be hot-swapped?
A5: No, hot-swapping is not supported. Power must be turned off before replacement.
Q6: How is the module mounted?
A6: It can be installed on a DIN rail or mounted into a system rack.
Q7: Which control systems are compatible with this module?
A7: It is widely used in Honeywell Experion PKS and compatible I/O architectures.
Q8: What is the typical response time of the module?
A8: The typical response time is less than 1 millisecond, making it suitable for time-critical operations.
