Technical Specifications
| Parameter | Specification |
|---|---|

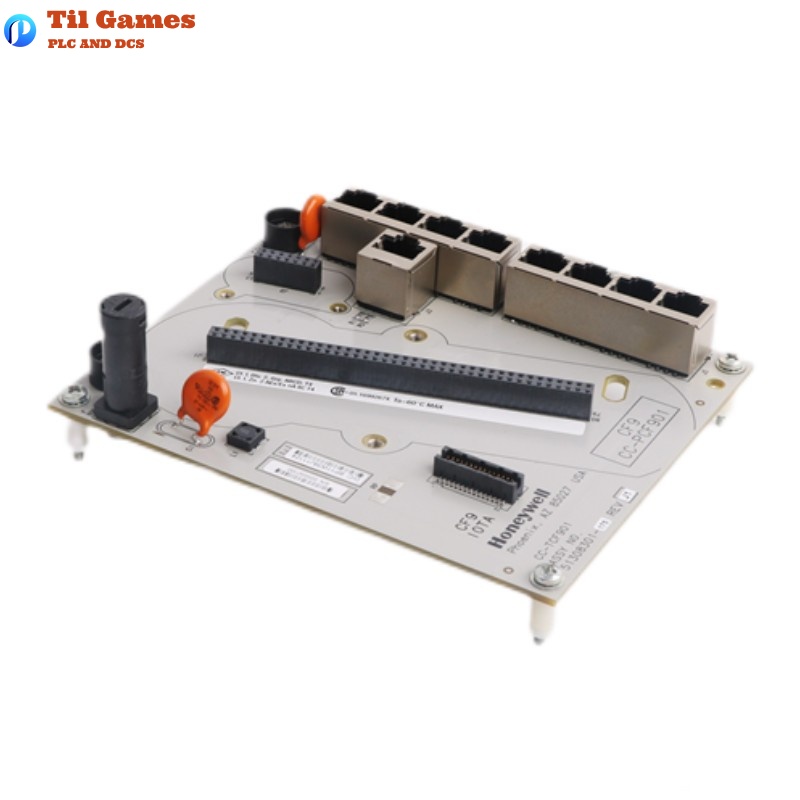

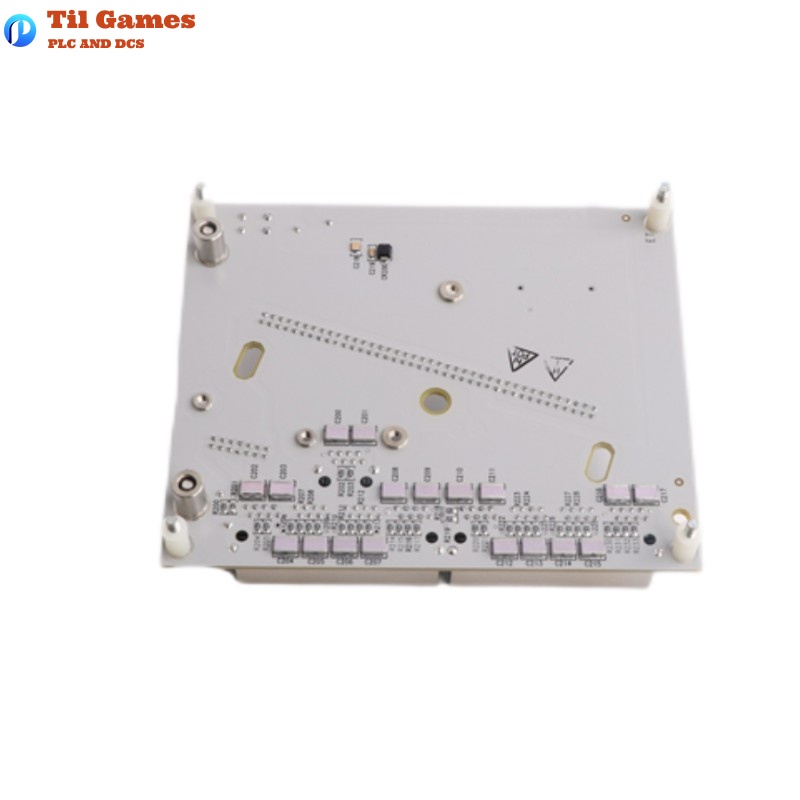

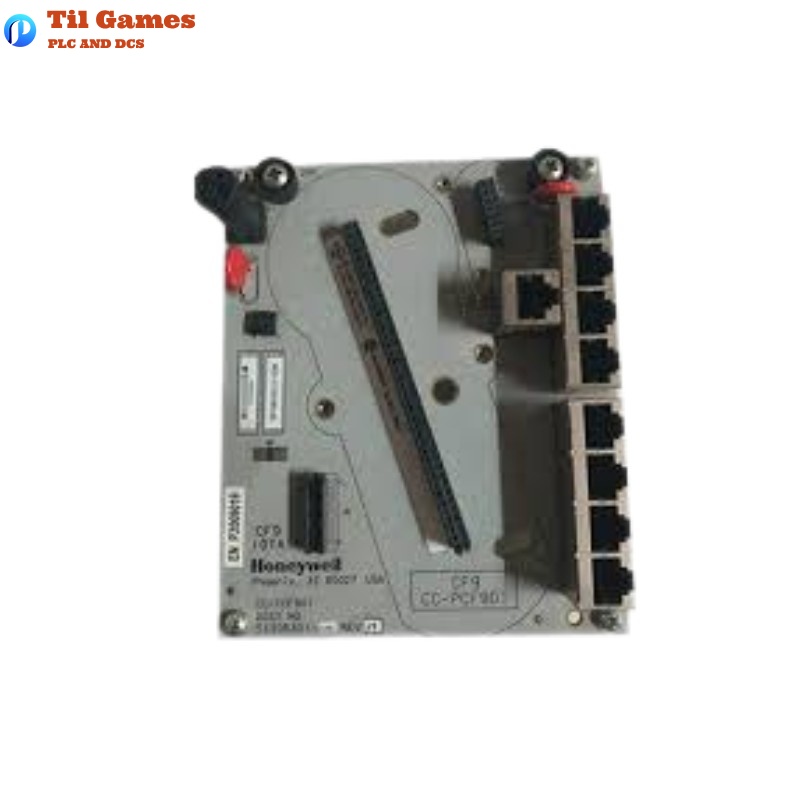

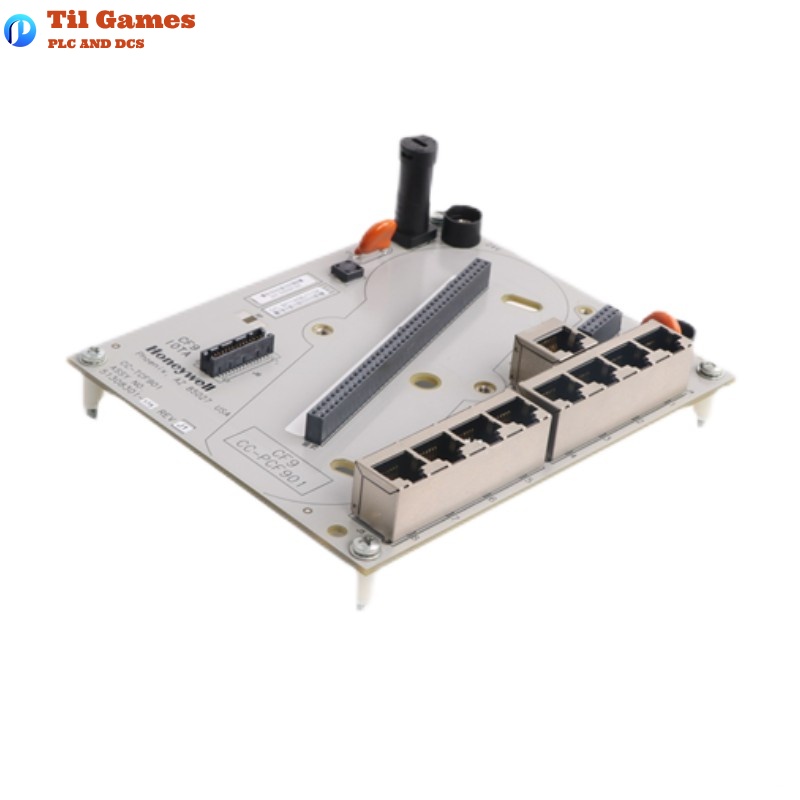

| Model Number | DC-TCF901 (CF9 IOTA for Series C Mark II) |
| Product Type | Input/Output Termination Assembly (IOTA) |
| Application | For Control Firewall CF9 module in Series C |
| Ports | 9 Ethernet Ports (8 downlink, 1 uplink) |
| Fiber Module Support | Supports optional single-mode or multi-mode fiber |
| Mounting | Mounted on backplane in Series C Mark II |
| Operating Temperature | -40°C to +85°C |
| Voltage | 24 VDC |
| Power Consumption | Approx. 1 W |
| Form Factor | Horizontal mounting on Series C chassis |
| Dimensions (L×W×H) | 150 × 50 × 80 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the DC-TCF901 IOTA?
A1: It serves as the physical interface for the CF9 Control Firewall, connecting it to the Series C network and providing 9 Ethernet ports.
Q2: How many devices can be connected to the CF9 IOTA?
A2: It has 8 downlink ports for connecting C300s and Series C FIMs, and 1 uplink port for connection to the supervisory network.
Q3: Can I use both RJ-45 and fiber simultaneously on the uplink port?
A3: No, for Series C Mark II, do not connect both fiber and RJ-45 cables at the same time.
Q4: What is the correct way to mount the DC-TCF901 IOTA?
A4: The IOTA should be mounted horizontally on the backplane using the designated mounting holes and secured with spacers and screws.
Q5: What kind of fiber modules are supported by the DC-TCF901?
A5: It supports optional fiber optic modules: CC-FSMX01 (single-mode) and CC-FMMX01 (multi-mode).
Q6: Is it safe to replace the IOTA while the system is powered?
A6: No, do not connect or disconnect any cables or terminals while the system is powered unless you are in a known non-hazardous location.
Q7: How often should the IOTA be inspected?
A7: It is recommended to perform visual and connection checks every 3 to 6 months.
Q8: What are the recommended spare parts for the DC-TCF901?
A8: Recommended spares include the CF9 module, fuse (800 mA, 250V), and optional fiber optic modules.
