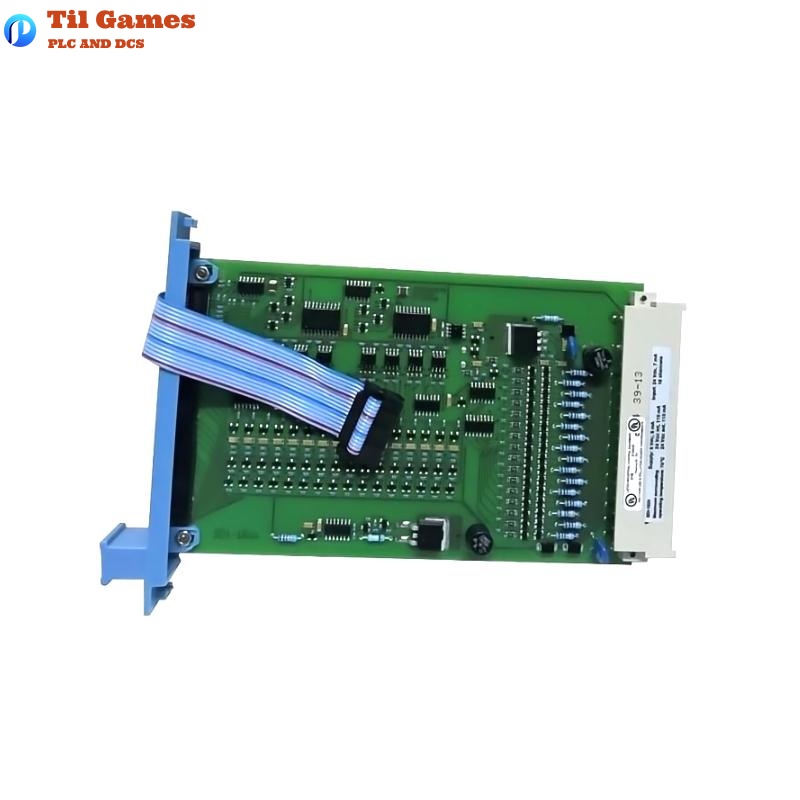

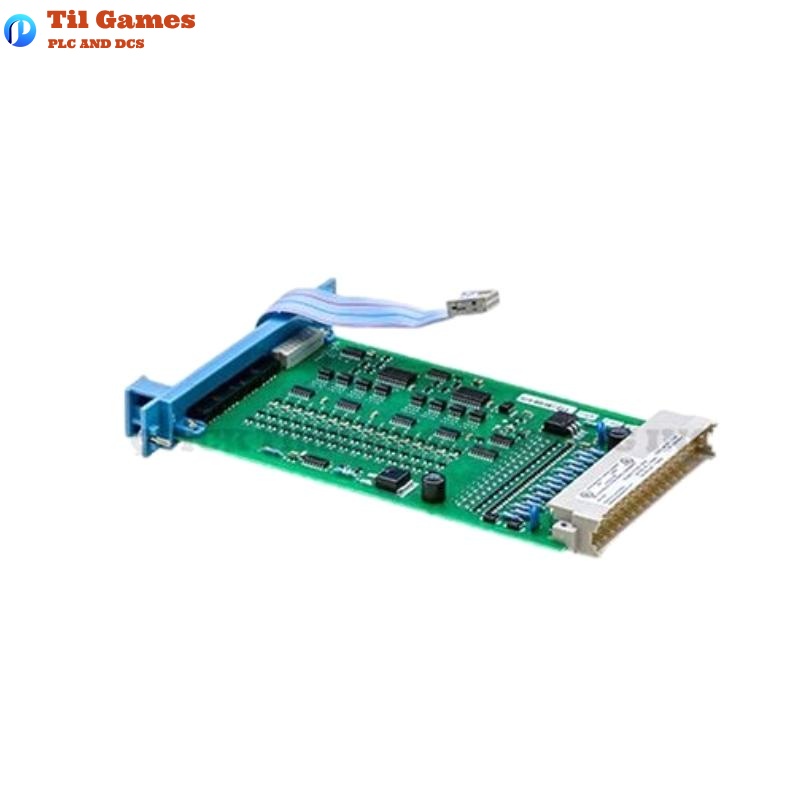

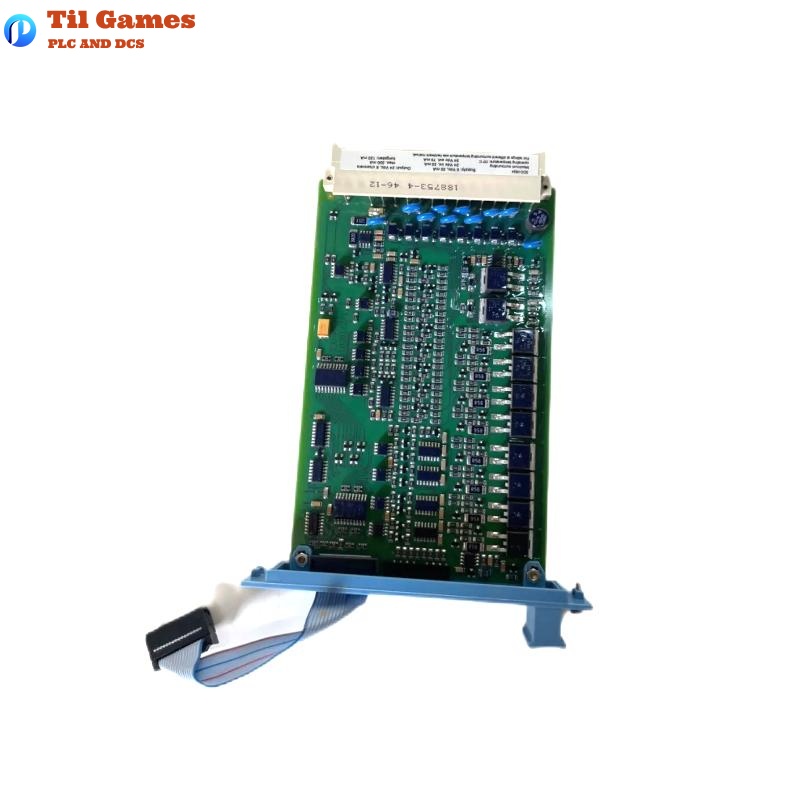

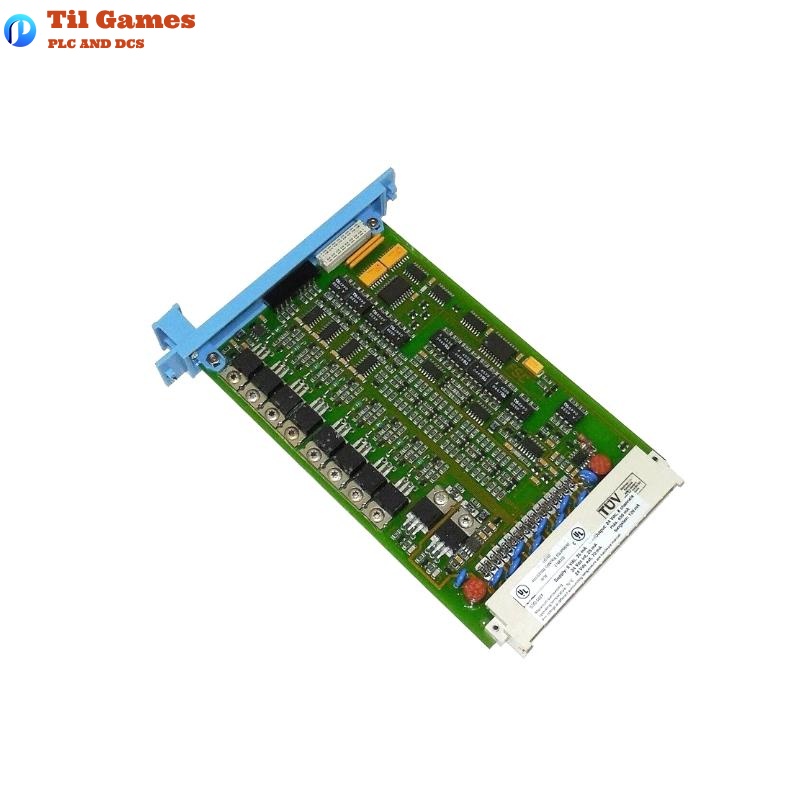

Honeywell FC-SDO-1624 Safe Digital Output Module

Manufacturer：Honeywell

Product Number：FC-SDO-1624

Product Type：Safe Digital Output Module

Origin：USA

Dimensions：100 × 160 × 20.32 mm

Weight：0.5 kg

Frequently Asked Questions (FAQ)

Q1: How many output channels does the FC-SDO-1624 provide?
A1: It provides 16 digital output channels.

Q2: What is the maximum output current per channel?
A2: 100 mA per channel.

Q3: Does the module feature short-circuit protection?
A3: Yes, it is equipped with short-circuit protection on all outputs.

Q4: What is the typical voltage drop under full load?
A4: Less than 1.2 V DC at 100 mA.

Q5: What is the maximum supported capacitive load?
A5: Up to 1 µF.

Q6: What are the power requirements?
A6: Requires 5 V DC at 35 mA and 24 V DC at 85 mA (without output load).

Q7: Is the module certified for industrial use?
A7: Yes, it is certified with CE, TUV, UL, and CSA.

Q8: What are the dimensions and weight of the module?
A8: 100 × 160 × 20.32 mm in size, weighs 0.5 kg.

FC-SDO-1624 Honeywell Safe Digital Output Module
