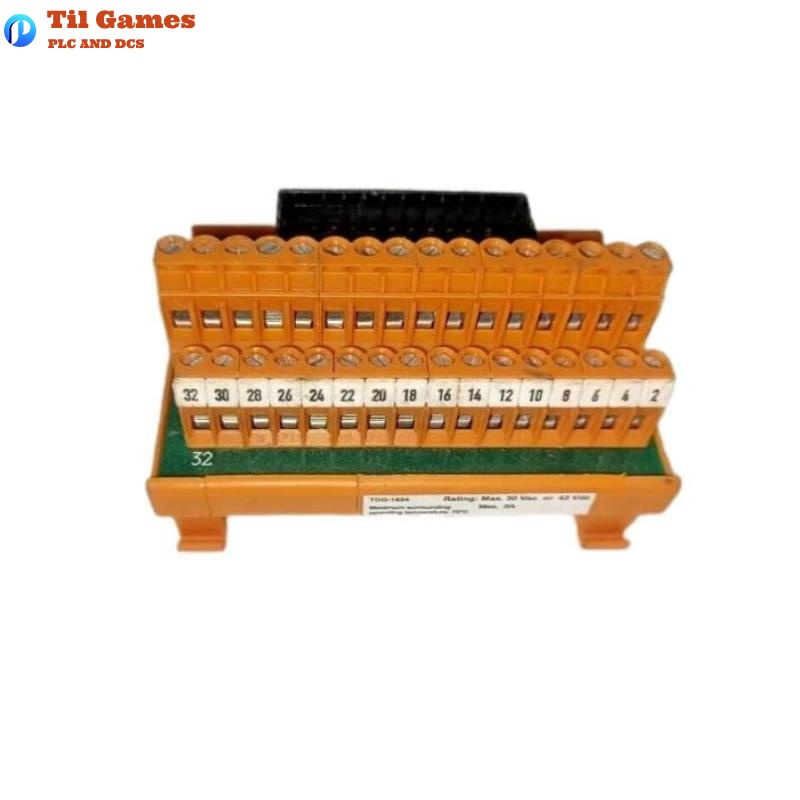

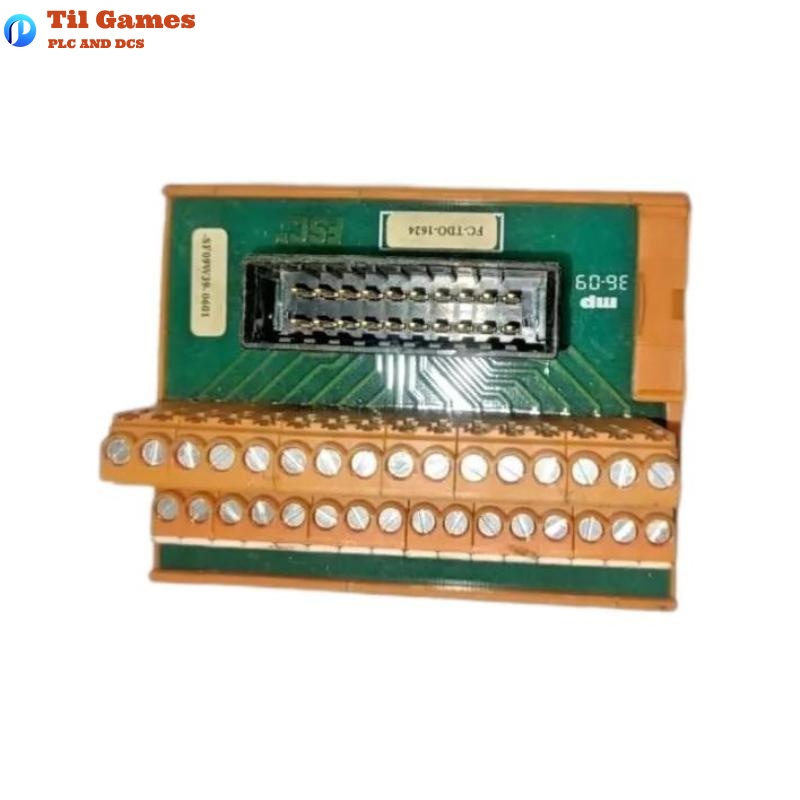

Honeywell FC-TDO-1624 Safe Digital Output Module

Manufacturer：Honeywell

Product Number：FC-TDO-1624

Product Type：Safe Digital Output Module

Origin：USA

Dimensions：100 x 125 x 50 mm

Weight：0.5 kg

Frequently Asked Questions (FAQ)

Q1: What is the main application of the FC-TDO-1624 module?
A1: The FC-TDO-1624 module is primarily used in non-safe digital output applications, such as driving loads like relays or LEDs. It provides reliable control in industrial systems with 16 output channels.

Q2: What type of loads can be connected to the output channels of the FC-TDO-1624 module?
A2: The module can handle both resistive loads (such as LEDs) and inductive loads (such as relays). It includes suppression diodes for inductive load protection.

Q3: What is the maximum current that can be supplied by each output channel?
A3: Each output channel can supply a maximum current of 100 mA.

Q4: How is the module powered?
A4: The FC-TDO-1624 module requires a 5 V DC supply for its internal logic and a 24 V DC supply for its output channels. The module consumes 85 mA of current when no load is connected.

Q5: What are the approval certifications for the FC-TDO-1624?
A5: The module is certified with CE, TUV, UL, and CSA approvals, ensuring its compliance with industry standards for safety and performance.

Q6: What is the significance of the watchdog input?
A6: The watchdog input ensures that the outputs are de-energized if the system shuts down or encounters a fault, providing a secondary method of de-energization for safety.

Q7: Can the FC-TDO-1624 module be used in hazardous environments?
A7: The module is not certified for use in hazardous locations. For hazardous area applications, a safe digital output module would be required.

Q8: How is the module connected to the system?
A8: The FC-TDO-1624 module connects to the system via a flat cable, interfacing with the IO bus for communication with the controller. Each output has a corresponding status LED.

FC-TDO-1624 Honeywell Safe Digital Output Module
