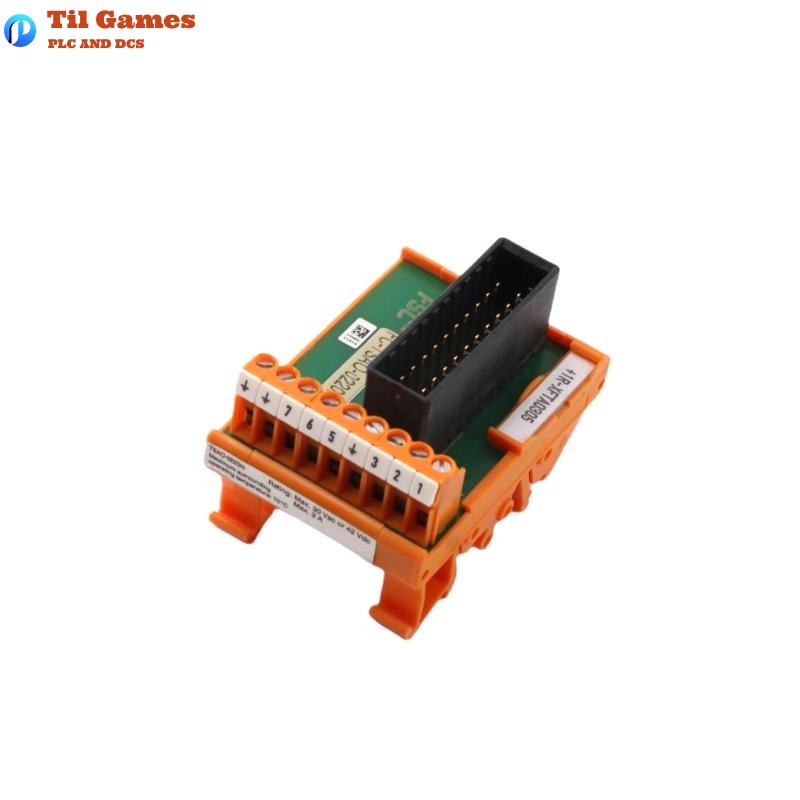

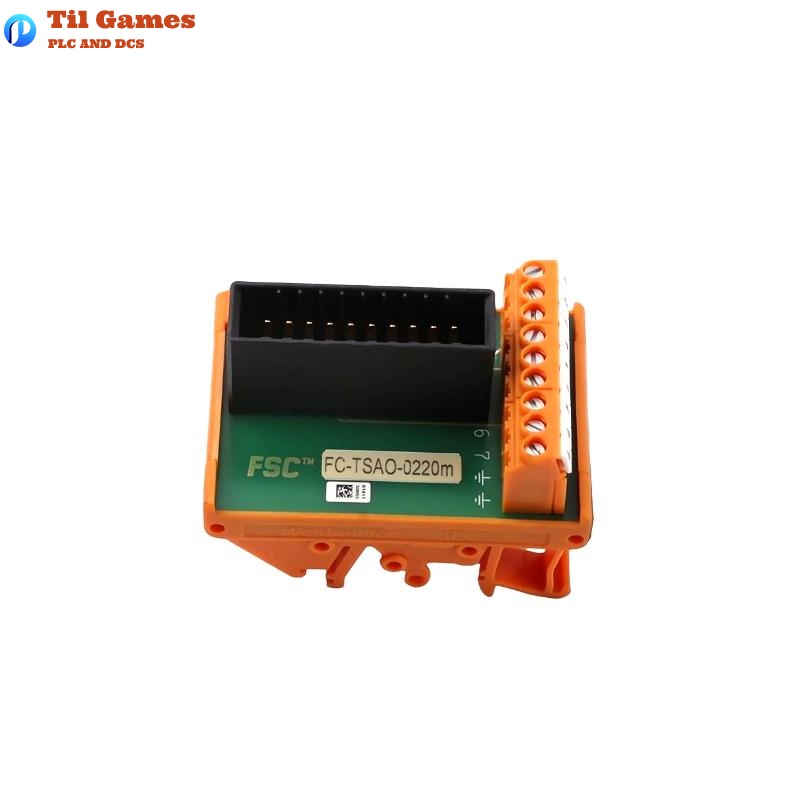

Honeywell FC-TSAOH-0220m Safe Analog Output Module

Manufacturer：Honeywell

Product Number：FC-TSAOH-0220m

Product Type：Safe Analog Output Module

Origin：USA

Dimensions：50 × 70 × 48 mm

Weight：0.5 kg

Frequently Asked Questions (FAQ)

Q1: What HART multiplexers are supported by FC-TSAOH-0220m?
A1: It supports MTL4850 and Pepperl+Fuchs KFD0-HMS-16 or KFD2-HMM-16.

Q2: Can multiple modules be linked together?
A2: Yes, up to 8 modules can be daisy-chained to support 16 HART channels.

Q3: What type of analog output does the module provide?
A3: The module provides 0–20 mA analog output suitable for analog field devices.

Q4: Does the module offer galvanic isolation for HART signals?
A4: No, HART multiplexer connections are not galvanically isolated. External isolation is required.

Q5: What type of wiring terminal does it use?
A5: It uses screw terminals for up to 2.5 mm² wires with 7 mm stripping length.

Q6: Is FC-TSAOH-0220m suitable for redundant output modules?
A6: Yes, it can be connected to redundant SAO-0220m module pairs.

Q7: Which safety and quality standards does it comply with?
A7: It complies with CE, TÜV, UL, and CSA standards.

Q8: How is the module mounted?
A8: It mounts on standard DIN EN rails (TS32 or TS35 × 7.5), requiring 65 mm rail length.

FC-TSAOH-0220m Honeywell Safe Analog Output Module
