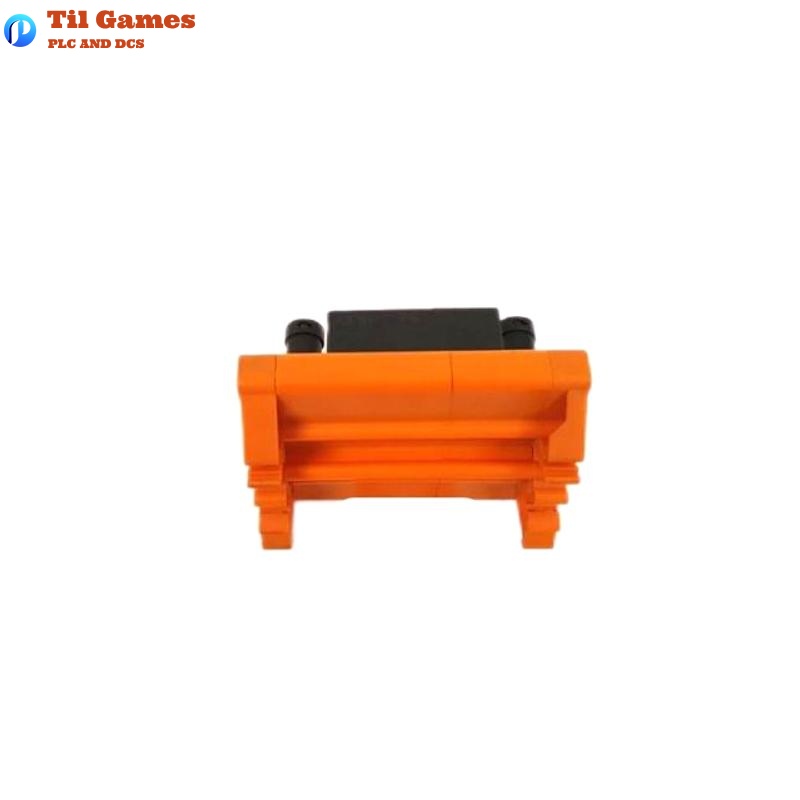

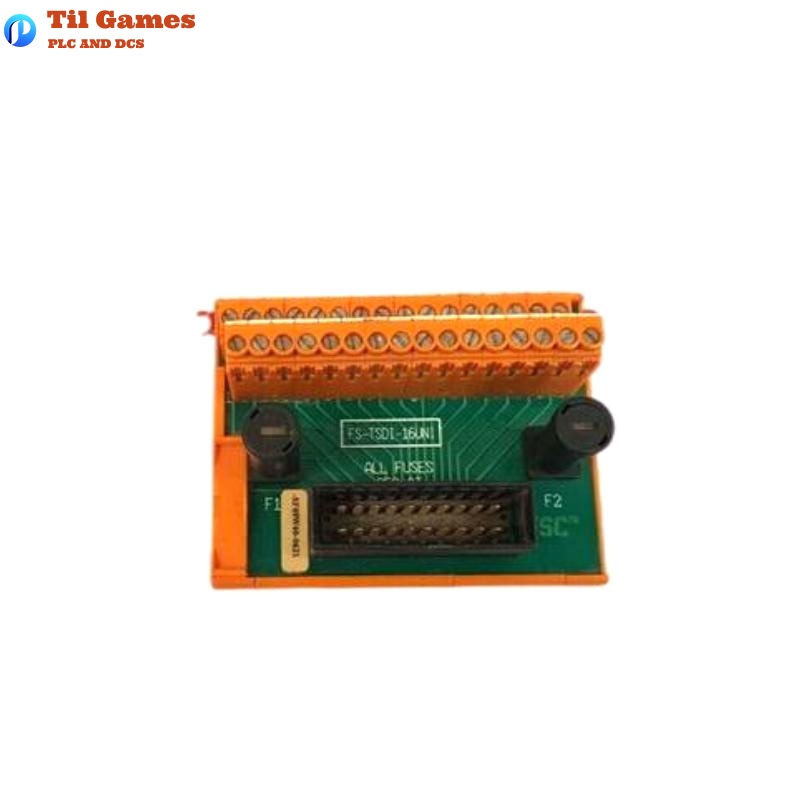

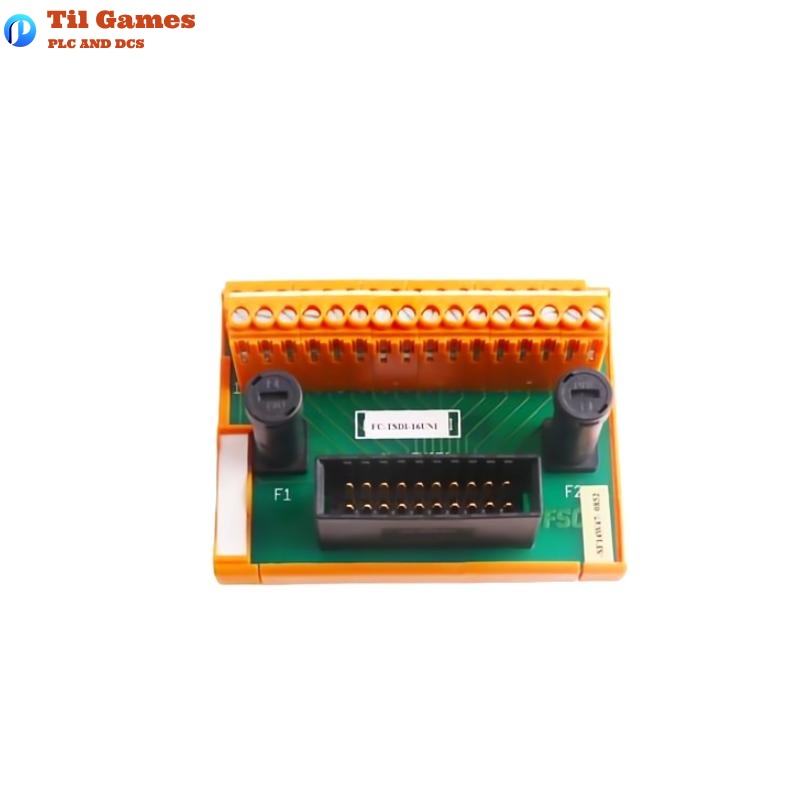

Honeywell FC-TSDI-16115 Safe Digital Input Field Termination Assembly

Manufacturer：Honeywell

Product Number：FC-TSDI-16115

Product Type：Safe Digital Input Field Termination Assembly

Origin：USA

Dimensions：300 × 109 × 68 mm

Weight：0.24 kg

Frequently Asked Questions (FAQ)

Q1: How many input channels does the FC-TSDI-16115 support?
A1: It supports 16 individual digital input channels.

Q2: What type of input signals can this module handle?
A2: It accepts both 115 V AC and 115 V DC input signals, active or passive.

Q3: Are the inputs galvanically isolated?
A3: Yes, all inputs are isolated from the output with 2 kV isolation.

Q4: Is this module suitable for high-temperature environments?
A4: Yes, it operates up to 70°C depending on voltage tolerance levels.

Q5: What defines a “LOW” input condition for the module?
A5: An input is considered “LOW” if voltage ≤ 15 V or current ≤ 1.2 mA.

Q6: Can this module be mounted on standard DIN rails?
A6: Yes, it supports standard TS32 and TS35 × 7.5 rails.

Q7: What wiring conditions should be observed during installation?
A7: Use wire up to 2.5 mm², strip length 7 mm, and torque 0.5 Nm.

Q8: What is the weight of the module?
A8: The unit weighs 0.24 kilograms, making it easy to install and maintain.

FC-TSDI-16115 Honeywell Safe Digital Input Field Termination Assembly
