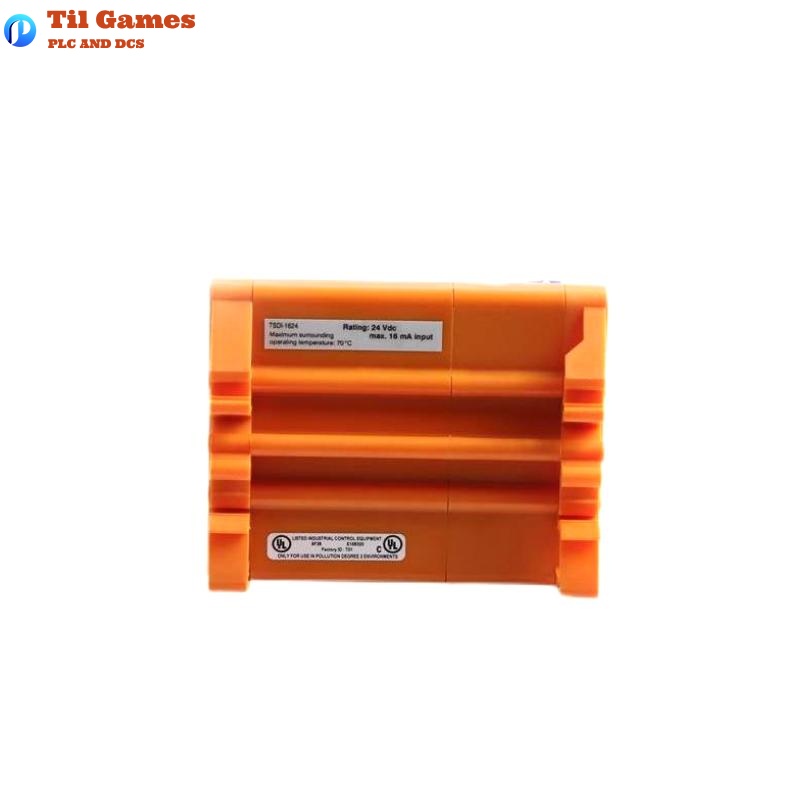

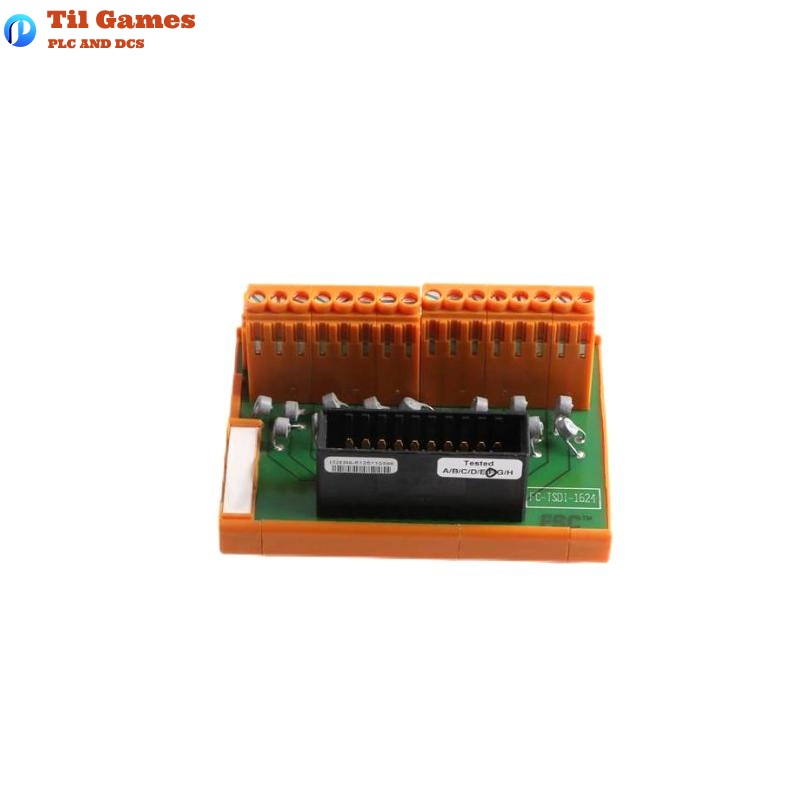

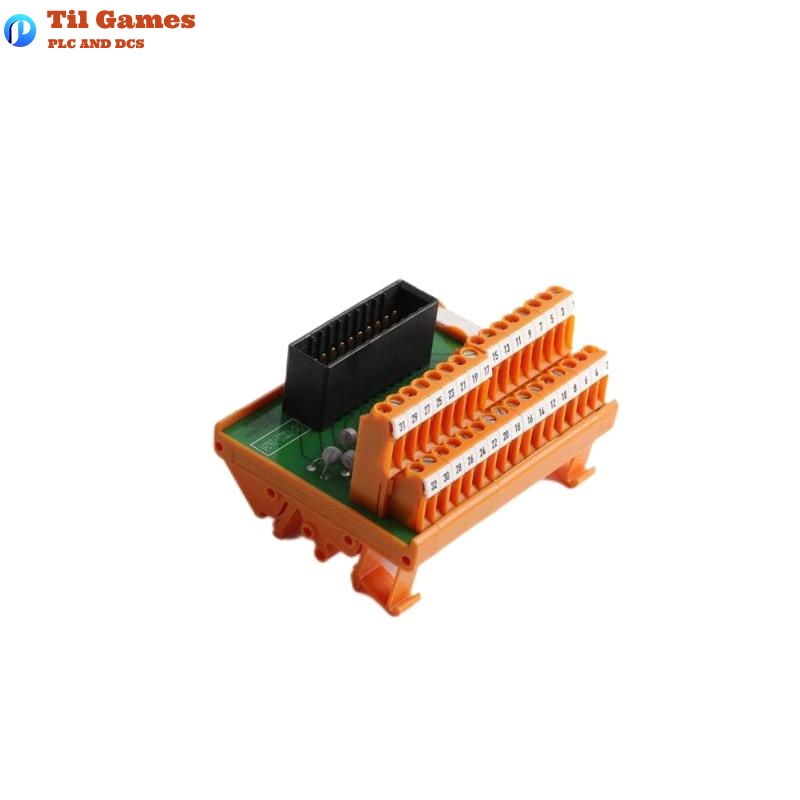

Honeywell FC-TSDI-1648 Safe Digital Input Field Termination Assembly

Manufacturer：Honeywell

Product Number：FC-TSDI-1648

Product Type：Safe Digital Input Field Termination Assembly

Origin：USA

Dimensions：90 × 70 × 58 mm

Weight：0.3 kg

Frequently Asked Questions (FAQ)

Q1: How many input channels does the FC-TSDI-1648 support?
A1: It supports 16 digital input channels.

Q2: What is the required input voltage for the module?
A2: The input voltage is 48 V DC, with a tolerance of -15% to +15%.

Q3: What is the input current per channel?
A3: Up to 8 mA at 48 V DC when connected to redundant SDI-1648 modules.

Q4: Is the module protected against short circuits?
A4: Yes, each input uses a PTC resistor to prevent total channel failure from a single short.

Q5: Which DIN rail standards are supported?
A5: The module supports TS32 and TS35 × 7.5 DIN rails.

Q6: What is the maximum supported wire size?
A6: It supports up to 2.5 mm² (AWG 14) wire diameter.

Q7: Does the FC-TSDI-1648 have international certifications?
A7: Yes, it is certified by CE, TUV, UL, and CSA.

Q8: Can the module be used in hazardous locations?
A8: Yes, it is designed for Class I, Division 2 hazardous areas.

FC-TSDI-1648 Honeywell Safe Digital Input Field Termination Assembly
