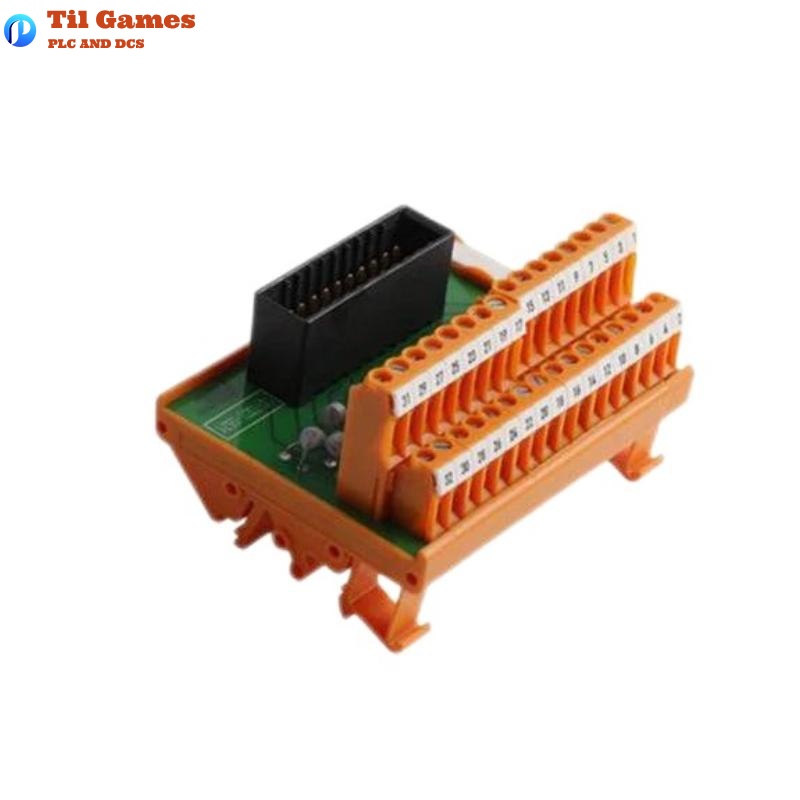

Honeywell FC-TSDO-0824C Technical Specifications
Specifications Table:
| Item | Description |
|---|---|
| Model Number | FC-TSDO-0824C |
| Type | Fail-safe digital output FTA, current limited (8 channels, 24 Vdc) |
| Number of Channels | 8 |
| Output Current Limit | > 110 mA |
| Max Output Power | 2.5 W (at 24 Vdc) |
| Voltage Drop | < 1.5 Vdc (at 110 mA) |
| Off Current | < 0.1 mA |
| Max Voltage | 36 Vdc (IEC 1010, Overvoltage Category 3) |
| Power per Channel | 5 mA (excluding load) |
| Dimensions | 110 x 70 x 48 mm |
| Weight | 0.5 kg |
| DIN Rail Type | DIN EN TS32 / TS35 x 7.5 |
| Rail Length Used | 111 mm |
| Terminal Type | Screw terminals, max wire diameter 2.5 mm² (AWG 14), strip length 7 mm |
| Torque | 0.5 Nm (0.37 ft-lb) |
| Environmental Coating | Conformal Coating |
| Certifications | CE; FM, UL, TÜV (pending) |
| Hazardous Area Use | Suitable for Class I, Division 2 |
| Group A/B Inductance | Max 3.0 mH |
| Group A/B Capacitance | Max 0.2 µF |
| Group C/D Inductance | Max 12 mH |
| Group C/D Capacitance | Max 5 µF |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many digital output channels does the FC-TSDO-0824C support?
A1: It supports 8 current-limited digital output channels.
Q2: Is this module suitable for hazardous areas?
A2: Yes, it is designed for use in Class I, Division 2 hazardous locations.
Q3: What is the maximum output current per channel?
A3: Each channel supports over 110 mA output current.
Q4: What is the maximum load supported by the module?
A4: The module supports up to 2.5 W load per channel at 24 Vdc.
Q5: What are the physical dimensions of the module?
A5: The dimensions are 110 x 70 x 48 mm, and the weight is 0.5 kg.
Q6: What type of mounting is supported?
A6: It can be mounted on DIN EN TS32/TS35 x 7.5 rails with 111 mm length.
Q7: Does the module have any certifications?
A7: It has CE certification; FM, UL, and TÜV certifications are pending.
Q8: Are the outputs protected by current limiting?
A8: Yes, each output is electronically current-limited for fail-safe operation.
