Technical Specifications
| Parameter | Value |
|---|---|

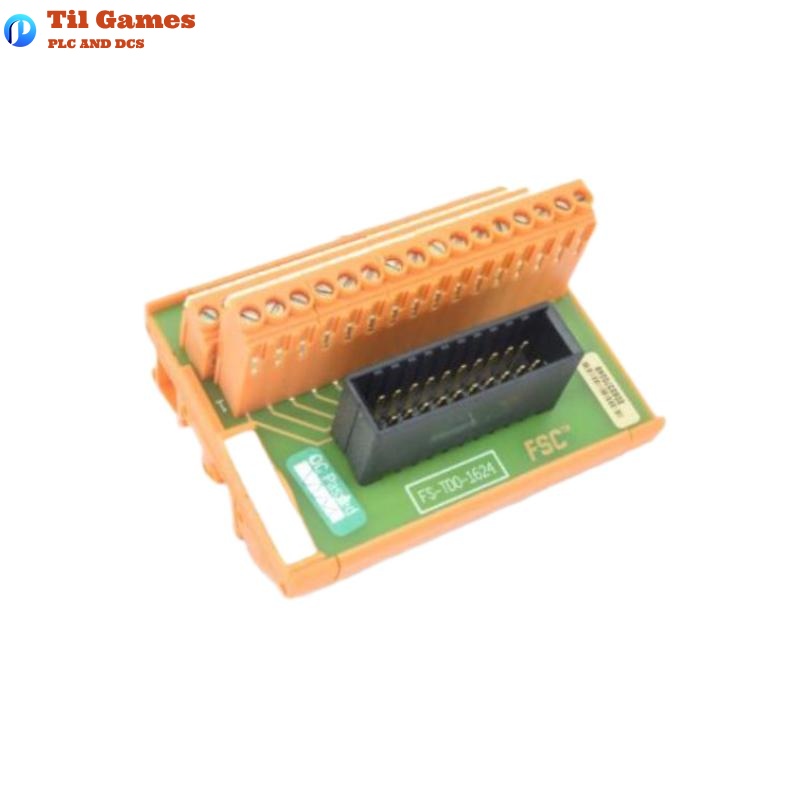

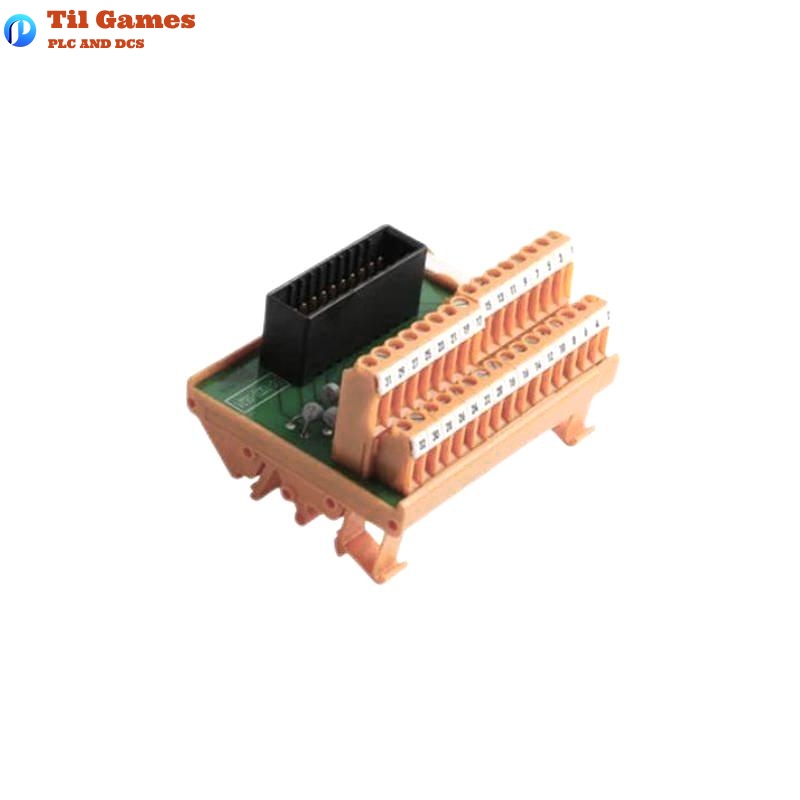

| Product Model | FC-TSDO-1624 |
| Number of Channels | 16 |
| Output Type | 24 V DC digital output |
| Maximum Output Current | 100 mA per channel |
| Maximum Output Power | 2.5 W per channel |
| Voltage Drop | < 1.2 V at 100 mA |
| Off-state Leakage Current | < 0.1 mA |
| Dimensions (L × W × H) | 60 × 70 × 54 mm |
| Weight | 0.36 kg |
| Mounting Type | DIN rail TS32 / TS35 × 7.5 |
| Terminal Type | Screw terminal, max. wire 2.5 mm² (AWG 14) |
| Strip Length | 7 mm |
| Tightening Torque | 0.5 Nm (0.37 ft-lb) |
| Certifications | CE, UL, TUV, CSA |
| Rated Voltage | 24 V DC |
| Overvoltage Category | Category III (per IEC 1010) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the output current capacity per channel of FC-TSDO-1624?
A1: Each channel supports up to 100 mA.
Q2: Is this module suitable for safety-critical applications?
A2: Yes, it is a Safe Digital Output FTA intended for use in safety-related systems.
Q3: What type of field wiring is supported?
A3: It supports screw terminal wiring, with a maximum wire diameter of 2.5 mm².
Q4: What standards does this module comply with?
A4: It complies with CE, UL, TUV, and CSA certifications.
Q5: What is the physical size of the FC-TSDO-1624?
A5: The dimensions are 60 mm × 70 mm × 54 mm.
Q6: How is the FC-TSDO-1624 mounted?
A6: It is designed for DIN rail mounting, compatible with TS32 and TS35 × 7.5 rails.
Q7: What is the voltage drop at maximum current?
A7: The voltage drop is less than 1.2 V DC at 100 mA.
Q8: Can the module be used in hazardous locations?
A8: It is designed for use with safe output modules in controlled environments; suitability for hazardous areas depends on system integration.
