Technical Specifications
| Parameter | Description |
|---|---|

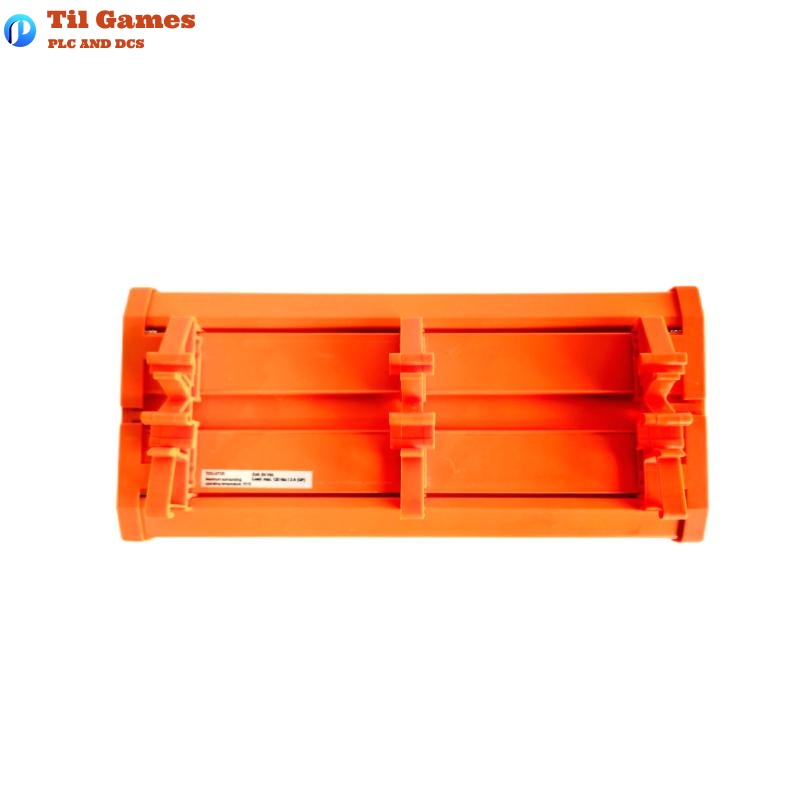

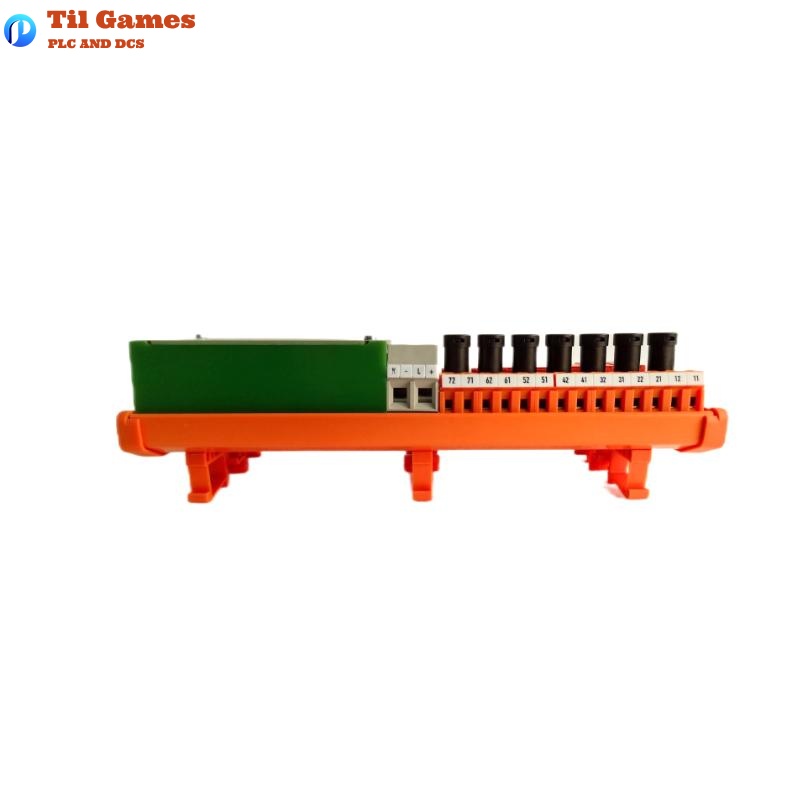

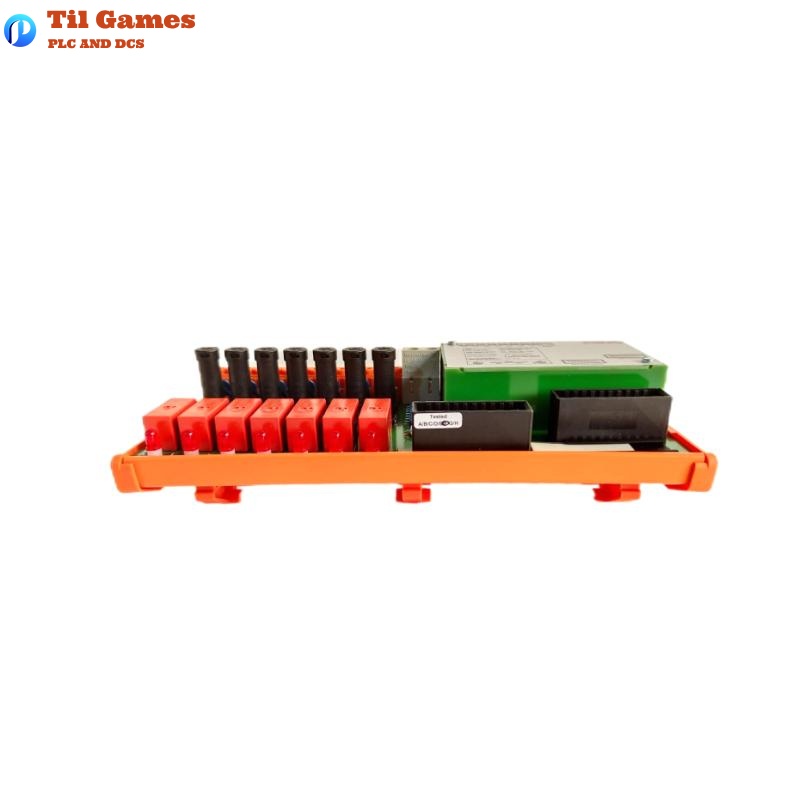

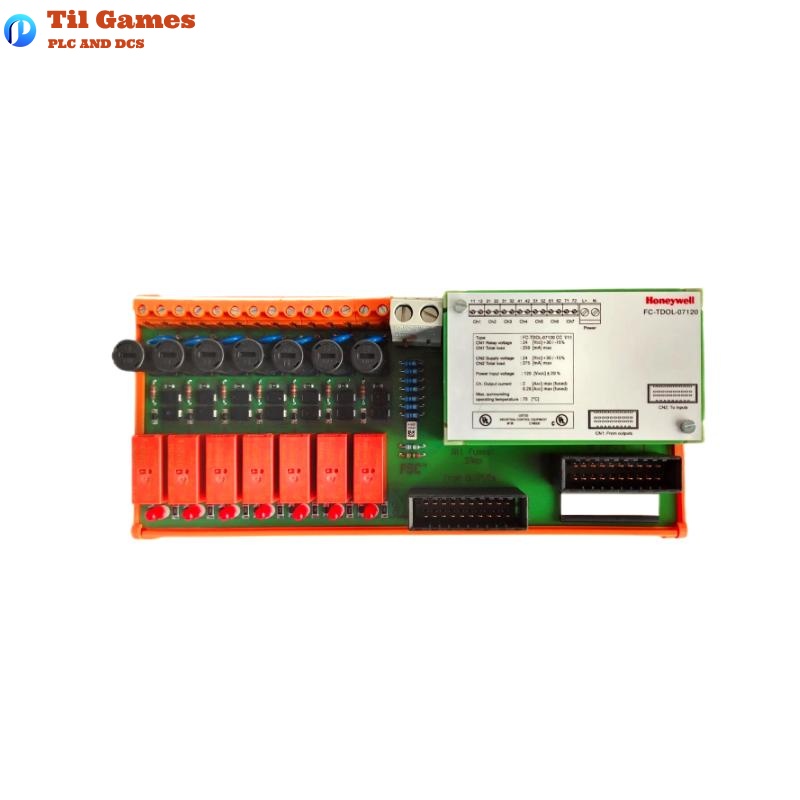

| Product Name | FS-TDOL-07120 Digital Output Field Termination Assembly |
| Product Type | Digital Output I/O Termination Assembly |
| Interface Type | Relay Output (Passive) |
| Number of Output Points | 16 Points |
| Wiring Method | Screw Terminal |
| Operating Voltage | 24 VDC (supplied by system) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Insulation Withstand Voltage | 1500 V RMS |
| Protection Rating | IP20 |
| Dimensions (L x W x H) | 240 x 109 x 71 mm |
| Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many digital outputs does the FS-TDOL-07120 support?
A1: The module supports up to 16 digital output points with relay (passive) type output.
Q2: What is the wiring method used for this assembly?
A2: The module uses screw terminals for secure and reliable field wiring.
Q3: Does the module provide isolation?
A3: Yes, it features 1500 V RMS isolation for enhanced protection.
Q4: Is the module suitable for harsh temperature environments?
A4: Yes, it supports operating temperatures from -20°C to +70°C.
Q5: Can the module be mounted on a DIN rail?
A5: Yes, the FS-TDOL-07120 supports standard DIN rail mounting.
Q6: What systems is this module compatible with?
A6: It is designed for integration with Honeywell safety and automation systems.
Q7: Does this module support hot swapping?
A7: No, the module is not hot-swappable and should be replaced with power off.
Q8: What is the protection class of the module?
A8: The module is rated IP20, suitable for installation inside control panels.
